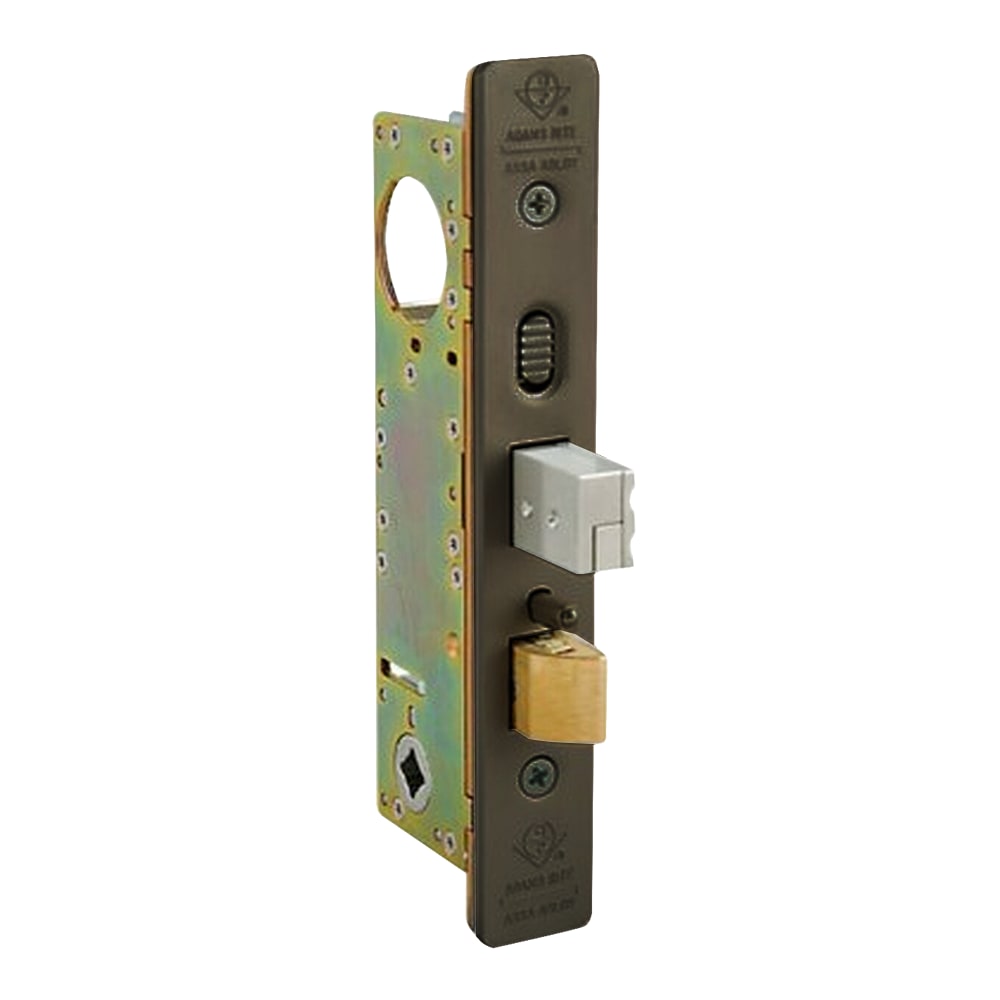

Adams Rite 2190-402-000 Dual Force 2190 Interconnected Lock System

Adams Rite 2190-402-000 Dual Force 2190 Interconnected Lock offers a sophisticated solution for securing aluminum stile doors. This innovative lock integrates a deadbolt and deadlatch, ensuring both access control and enhanced security. Designed with a 1-1/2" backset, it features a dark bronze faceplate and is engineered for out-swinging doors. The Dual Force 2190 stands out with its panic-proof exiting capability. The key or thumbturn allows for quick retraction of both the deadbolt and deadlatch from either side. The exterior lever operates the latch only, while the inside lever retracts both simultaneously, facilitating swift egress in emergencies. It includes a latch holdback feature that can be easily activated or deactivated with a simple key turn. With a solid brass latchbolt boasting a 5/8" throw and a robust stainless steel deadbolt with a 1" throw, durability is assured. The lock also features an auxiliary deadlatch pin to prevent forced entry. The included standard strike is specifically designed for flush closing doors, while numerous options for trim style and finish enable customization to fit your project needs. Ideal for commercial applications, the Adams Rite Dual Force 2190 is a reliable choice for security professionals and discerning homeowners alike.

Dual Force 2190 Interconnected

Dual Force Interconnected Lock, 1-1/2" Backset, Less Strike, Dark Bronze Faceplate, Less Trim

The Dual Force 2190 Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors. Latch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting. The Dual Force 2190 combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt (and deadlatch) from either side. The exterior lever retracts the latch only, while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic-proof exiting. Intended for out-swinging doors. Key or thumbturn retracts or extends deadbolt or deadlatch. Inside lever retracts both when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch and sliding holdback button on faceplate down to hold and up to release. 2190 will not work without its specially designed strike - included standard in package.

Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors.

• Cylinder Backset: 1-1/8” or 1-1/2” only.
• Latchbolt/Deadbolt: Latchbolt: 5/8” throw, solid brass. Easily reversible using only a screwdriver. Deadbolt: 1” throw, stainless steel.
• Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
• Faceplates: Measures 1” x 6-7/8”. Include FaceStyle faceplate system that adapts to flat, radius, or beveled door edge. Radius with weatherseal faceplate available separately.
• Strikes: Standard strike furnished is the 2101-01 for flat jamb where door closes flush or nearly flush. The 2101 covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
• Options: Specify trim option, lever style, finish, and strike.  Also adapts to paddle operator 4591. See 2290 for wood or steel door version for stile and rail type door construction. Note that the low profile trim (trim option 3) is recommended for in-swing door applications. Please refer to 3080 (TRIM) for full offering of designer handle sets.
