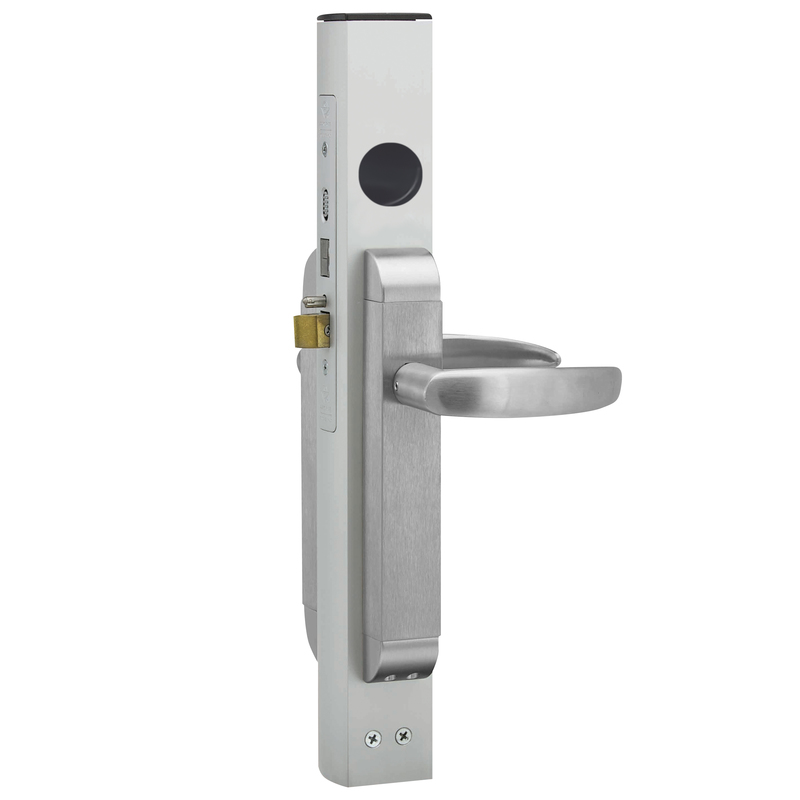

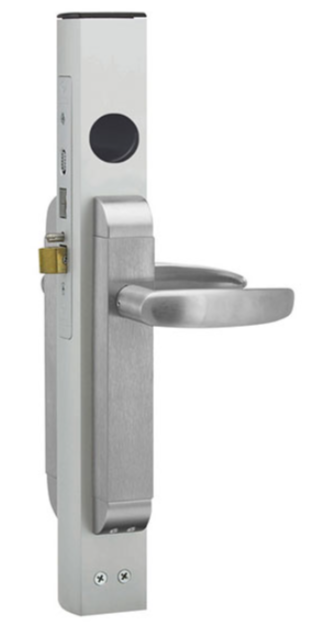

The Dual Force 2190 Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors. Latch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting. The Dual Force 2190 combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt (and deadlatch) from either side. The exterior lever retracts the latch only, while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic-proof exiting. Intended for out-swinging doors. Key or thumbturn retracts or extends deadbolt or deadlatch. Inside lever retracts both when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch and sliding holdback button on faceplate down to hold and up to release. 2190 will not work without its specially designed strike - included standard in package.
Attributes
Alternate Codes: 2190-411-101-32D, 219041110132D
Backset: 1-1/2"
Category: Glass Aluminum Hardware, Locking Hardware, Lock Sets
Commercial Residential: Commercial
Door Application: Glass Aluminum Hardware
Finish: 630/US32D
Finish Code: 628, 630, US32D
Finish Color: Aluminum, Anodized Aluminum, Brushed Aluminum, Clear (Satin), Satin, Satin Aluminum, Satin Stainless Steel
Finish Description: Satin Stainless Steel
Function: Interconnected Deadbolt/Deadlatch For Storefront Doors
Handing: Field Reversible
Installation: Commercial
Lever Knob Design: 01 - Curve
Lever Style: Curved Back to Door
Leverknob Design: 01 - Curve Lever
Pack Qty: 1
Pbs Options: 10371981,40154989,40155017
Series: 2190 2290 Dual Force Interconnected Lock
Strike Type: Flat Strike
Subtype: Aluminum Door Deadlocks
Trim Option: With Trim
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
