Adams Rite 2331-26D Heavy Duty Deadlock for Sliding Doors, 1-3/4in Backset, Satin Chrome

Adams Rite Manufacturing 2331-26D Heavy Duty Deadlock for Sliding Doors offers robust security for both wood and hollow metal applications. Designed specifically for sliding doors, this deadbolt features a substantial brass bolt that not only throws into the strike but also expands two stainless steel dogs, ensuring an enhanced level of security. A simple 360-degree turn of the key or thumbturn easily extends or retracts the bolt, allowing for seamless operation. This deadlock requires a mortise cylinder with a standard cam, providing flexibility in key management. The 1-3/4-inch backset and the durable zinc alloy case, measuring 7/8" x 3-5/8" x 2-5/8" deep, make it suitable for various installations. The armor faceplate, crafted from brass and measuring 1" x 5-3/4", is available in multiple finishes, including Satin Chrome, ensuring it fits seamlessly into your design aesthetic. Included with the deadlock is a sturdy strike, which measures 1/8" x 1" x 4-11/16" and is designed for easy four-screw mounting. With a shipping weight of only 2 lbs, this product comes individually boxed, complete with wood screws for mounting. Trust the Adams Rite 2331-26D for dependable locking solutions that combine strength and versatility.

Heavy Duty Deadlock for Sliding Doors, Bolt Expands up Down into the Strike, 1-3/4in Backset, Faceplate 1 x 5-3/4in, Included Strike, Requires Mortise Cylinder with Standard Cam, 626/US26D Satin Chrome

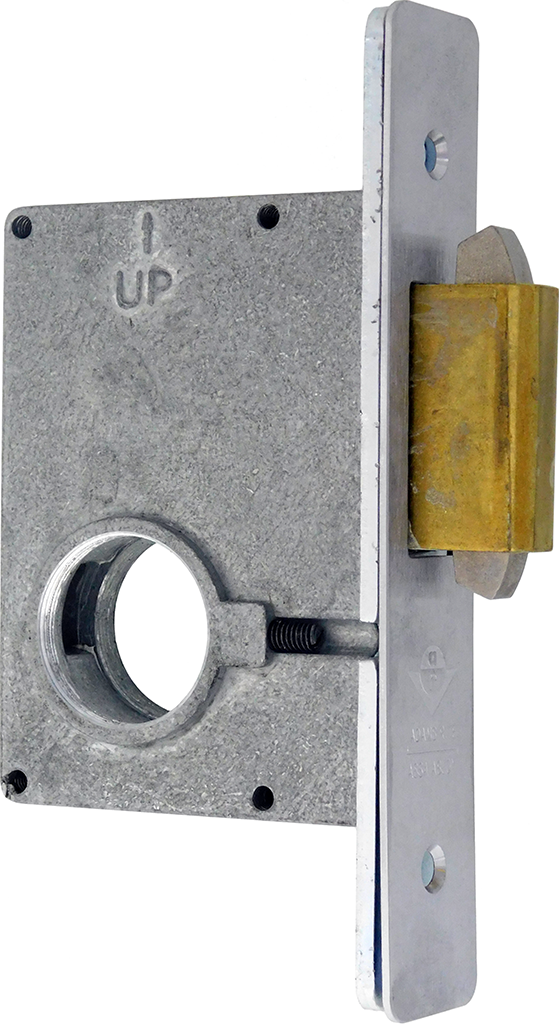

The 2331 Heavy Duty Deadbolt provides a heavy duty deadbolt lock that expands into the strike for heavy duty wood or hollow metal applications. A heavy duty deadbolt for heavy duty metal or wood sliding doors, the 2331 Heavy Duty Deadbolt throws a massive brass bolt into its strike, then expands two stainless steel dogs to secure the door. A single turn of the key expands or retracts the bolt. Operates with standard mortise cylinder (standard cam) or with standard mortise cylinder thumbturn. There is no latch action. Operation: 360deg. turn of key or thumbturn extends and expands or retracts and withdraws the bolt. Key cannot be removed unless bolt is positively locked or totally retracted. Requires special Cylinder Cam.

Specifications:

• Backset: 1-3/4" only
• Case: Zinc alloy, measures 7/8" x 3-5/8" x 2-5/8" deep.
• Bolt: Brass with stainless steel dogs, 1/2" x 1-1/2" with 3/4" horizontal throw and 11/32" expansion above and below main bolt.
• Armor Faceplate: Flat faceplate of brass, 1" x 5-3/4". Available in a variety of finishes.

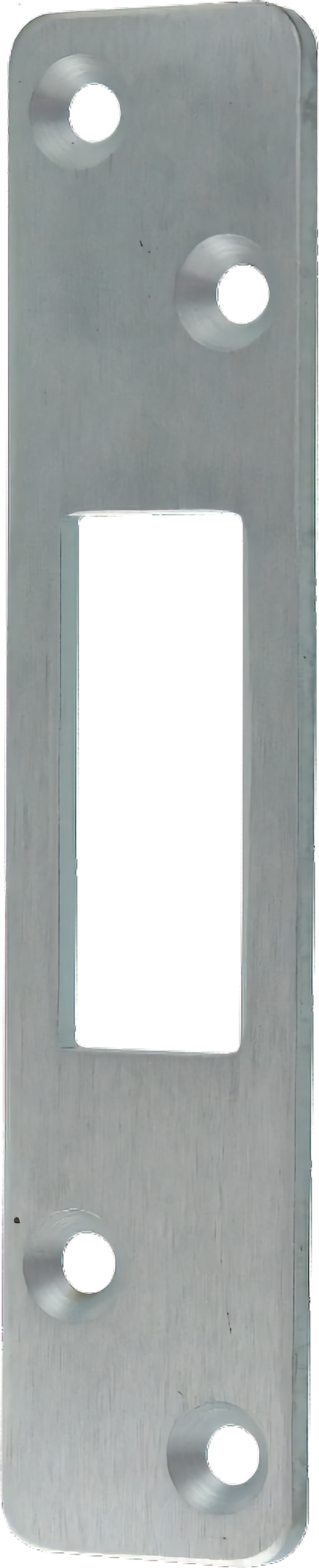

• Strike: 1/8" x 1" x 4-11/16" with 5/8" x 1-5/8" opening. Brass, with four-screw mounting. Trim finish same as faceplate.
• Special Cylinder Cam: 2331 Heavy Duty Deadbolts are operable by any standard 1-5/32" diameter mortise cylinder with special cam dimensions.
• Options: Specify trim finish: US3 Polished Brass (605), US26 Bright Chrome (625), or US26D Satin Chrome (626).
• Standard Package: Individually boxed with strike and wood screws for mounting lock and strike. Shipping weight: 2 lbs.

Features

• Backset: 1-3/4" only
• Strike: 1/8" x 1" x 4-11/16" with 5/8" x 1-5/8" opening. Brass, with four-screw mounting. Trim finish same as faceplate.
• Standard Package: Individually boxed with strike and wood screws for mounting lock and strike. Shipping weight: 2 lbs.
• Bolt: Brass with stainless steel dogs, 1/2" x 1-1/2" with 3/4" horizontal throw and 11/32" expansion above and below main bolt.
• Options: Specify trim finish: US3 Polished Brass (605), US26 Bright Chrome (625), or US26D Satin Chrome (626).
• Case: Zinc alloy, measures 7/8" x 3-5/8" x 2-5/8" deep.
• Special Cylinder Cam: 2331 Heavy Duty Deadbolts are operable by any standard 1-5/32" diameter mortise cylinder with special cam dimensions.
• Armor Faceplate: Flat faceplate of brass, 1" x 5-3/4". Available in a variety of finishes.
