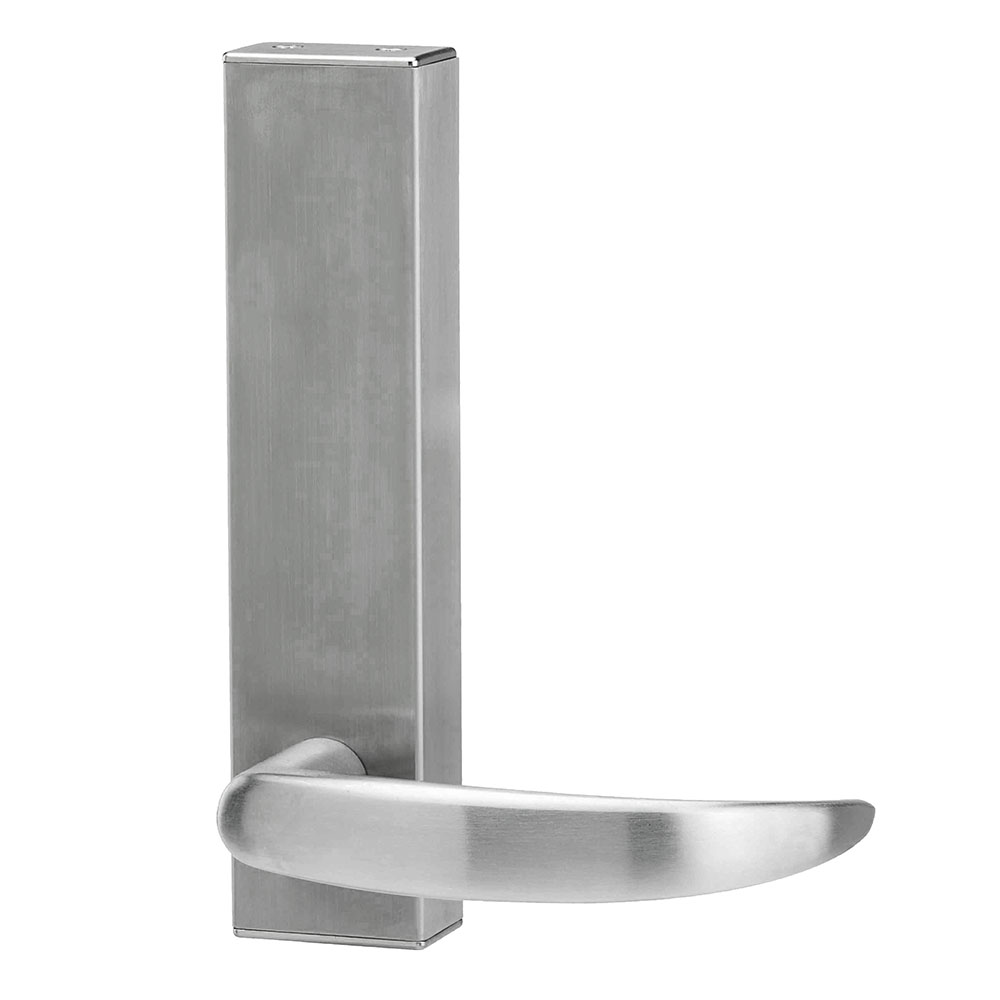

Adams Rite 3080-01-0-96-US32D Entry Trim

Adams Rite 3080-01-0-96-US32D Entry Trim offers reliable and secure outside activation for doors equipped with any Adams Rite exit device and deadlatch. This trim features a sleek 01 curve lever design, crafted from durable satin stainless steel, ensuring both aesthetic appeal and long-lasting performance. Engineered with a breakaway clutching mechanism, the 3080-01 protects the locked handle from vandalism and forced entry from either direction. This innovative feature enhances security while maintaining ease of use. The solid construction of the trim meets Grade 1 standards, making it suitable for commercial applications. The trim is designed to accommodate standard mortise cylinders with an MS cam, although it is available without a cylinder hole for added flexibility. This versatility allows for easy handle changes without the need to replace the entire trim, ensuring cost-effective maintenance. Additionally, the non-handed design enhances installation convenience. With a matte silver finish (630/US32D), the Adams Rite 3080 Entry Trim complements various architectural styles and is compliant with local code requirements. Whether used in commercial settings or knowledgeable residential applications, this entry trim stands as a testament to quality and security. Order today to enhance your door hardware solutions!

Entry Trim

Entry Trim, 01 Curve Lever, Without Cylinder Hole, CVR Exit Devices, Satin Stainless Steel

The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device and deadlatch. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism.

Provides outside activation of doors that have any type of Adams Rite Exit Device.

Breakaway clutching mechanism protects the locked handle from vandalism or forced entry, in either direction. All models share the same core components, so handles can be changed without having to replace the entire trim. Solid construction meets Grade 1 standards.

• Standard Handles: The 3080-01, -02, and -03 lever handles are designed to return within ½” of the door face. Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.
• Options: Can be ordered with or without a hole for cylinder. Order standard mortise cylinder with MS® cam separately. Order 4603 Rectifier, 4605/4606 Transformer or PS-1 Power Supply separately.

Resources

• 3080 Entry Trim Cut Sheet
• 3081/82/83 Trim Installation Instructions
• Mechanical to Electrical - Making the Jump
