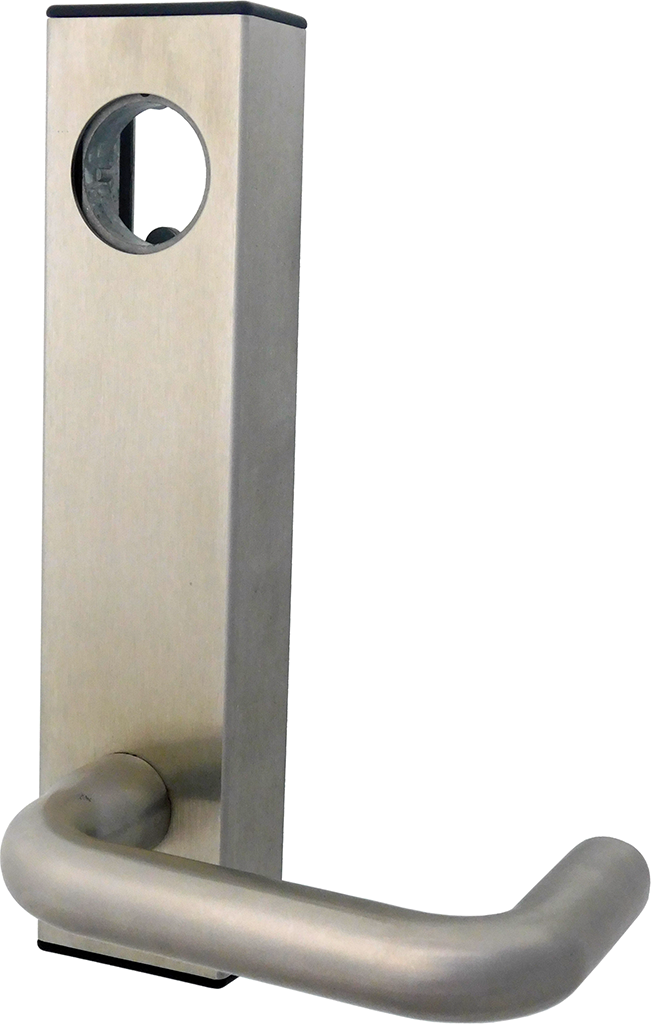

Adams Rite 3080-02-0-3U-00-32D Trim Tubular Clutch Lever, 630/US32D Satin Stainless Steel

Adams Rite Manufacturing 3080-02-0-3U-00-32D Trim Tubular Clutch Lever is expertly designed for seamless outside activation of doors equipped with any Adams Rite exit device. Crafted from high-quality 630/US32D satin stainless steel, this lever combines durability with an elegant finish, making it ideal for both commercial and residential applications. A standout feature of the 3080 Series is its breakaway clutching mechanism, which protects the locked handle from vandalism and forced entry, ensuring enhanced security. The lever handle is engineered to return within 1/2" of the door face, facilitating easy access while complying with local code requirements. Additionally, this trim can be customized to include or exclude a cylinder hole, providing flexibility to meet specific installation needs. For those requiring electrical functionality, the 3080E Electrified Entry Trim option allows for remote activation, making it a perfect choice for stairwell and fire doors. The trim is compatible with standard mortise cylinders, allowing for easy integration with existing locking systems. Whether you are updating access control or installing new exit hardware, the Adams Rite 3080-02-0-3U-00-32D Trim Tubular Clutch Lever is a reliable choice that prioritizes security without compromising on style.

Trim Tubular Clutch Lever, 630/US32D Satin Stainless Steel

The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism. The 3080-01, -02, and -03 lever handles are designed to return within 1/2" of the door face. Handles in the Designer Series do not have this same feature. The 3080E Electrified Entry Trim provides a continuous duty solenoid mounted to the trim, which enables remote activation of the locking function without unlatching the door, making this trim ideal for stairwell and fire doors.

Specifications:

• Standard Handles: The 3080-01, -02, and -03 lever handles are designed to return within 1/2" of the door face. Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.
• Options: Can be ordered with or without a hole for cylinder. Order standard mortise cylinder with MS® cam separately. Order 4603 Rectifier, 4605/4606 Transformer or PS-1 Power Supply separately.
• 3001 and 3002 Fixed Pulls: US32D Satin Stainless Steel pulls have 2-3/4" x 11-1/2" escutcheon. Order with or without cylinder hole. For hollow metal and wood doors only.
• Door Preparation and Trim Installation: Door prep and installation will differ depending on the type of exit device being used. Refer to the Adams Rite templates for 3080 Entry Trim or 3080E Electrified Entry Trim for preparation details.

Cylinders:

• Mortise Cylinder – 4036-01: Standard diameter five-pin unit with MS cam, suitable for use with entry trim. Available in quantity all keyed different (KD), in pairs (KA2), or 50 alike (KA50).
• Any other make standard mortise cylinder with MS® cam can be used to key-in with existing systems.
• Cylinder Cam: 3080 Series Entry Trim can accept any standard 1-5/32" diameter mortise cylinder with MS® cam.

Features

• Options: Can be ordered with or without a hole for cylinder. Order standard mortise cylinder with MS® cam separately. Order 4603 Rectifier, 4605/4606 Transformer or PS-1 Power Supply separately.
• 3001 and 3002 Fixed Pulls: US32D Satin Stainless Steel pulls have 2-3/4" x 11-1/2" escutcheon. Order with or without cylinder hole. For hollow metal and wood doors only.
• Standard Handles: The 3080-01, -02, and -03 lever handles are designed to return within 1/2" of the door face. Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.
• Door Preparation and Trim Installation: Door prep and installation will differ depending on the type of exit device being used. Refer to the Adams Rite templates for 3080 Entry Trim or 3080E Electrified Entry Trim for preparation details.

Resources

• Cut Sheet
