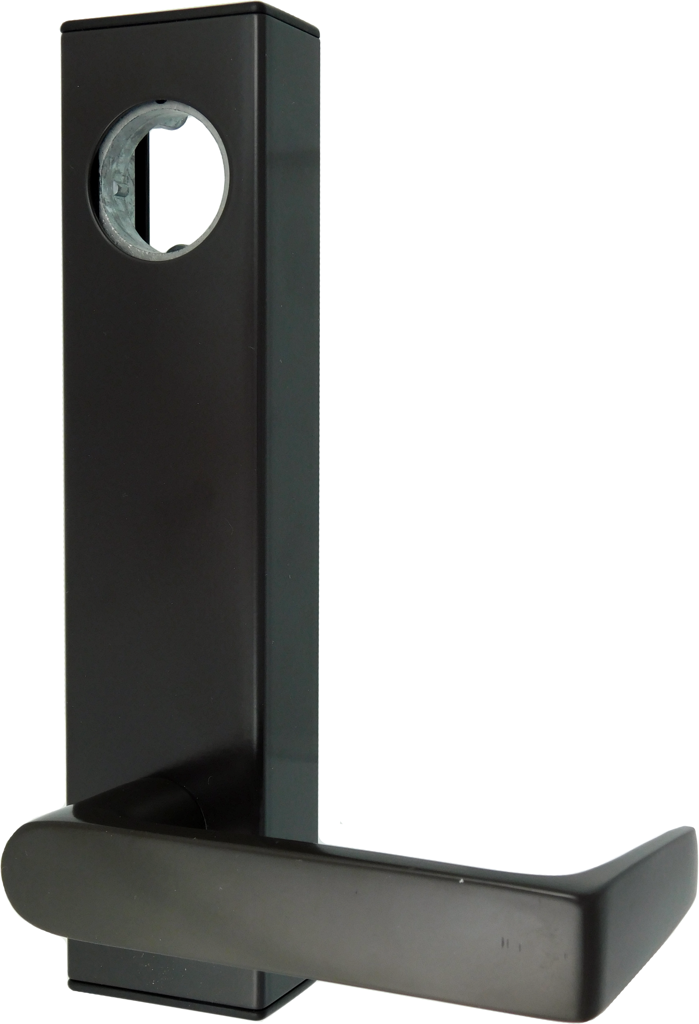

Adams Rite 3080-03-0-3U-00-10B Exit Trim Clutched, Squared Lever, 613/US10B Oil Rubbed Bronze

Adams Rite Manufacturing 3080-03-0-3U-00-10B Exit Trim Clutched features a robust design that provides reliable outside activation for doors equipped with any Adams Rite exit device. This trim is expertly crafted from oil-rubbed bronze, providing both durability and an attractive finish that complements various architectural styles. The clutched lever mechanism is engineered to protect against vandalism and forced entry, ensuring the handle remains secure. Notably, the lever handles are designed to return within 1/2" of the door face, providing a sleek profile that enhances usability while maintaining compliance with local codes. This exit trim can be customized with or without a cylinder hole, and it is compatible with standard mortise cylinders, allowing for easy integration into existing systems. The 3080-03 trim is non-handed, making it versatile for various door applications. Furthermore, for enhanced functionality, the electrified version (3080E) supports continuous duty solenoids, enabling remote activation for locking without unlatching the door-ideal for stairwell and fire doors. With an elegant dark bronze finish and a square bent back lever style, the Adams Rite 3080-03-0-3U-00-10B Exit Trim Clutched combines security and style, making it a valuable addition to any building's exit solution.

Exit Trim Clutched, Squared Lever, 613/US10B Oil Rubbed Bronze

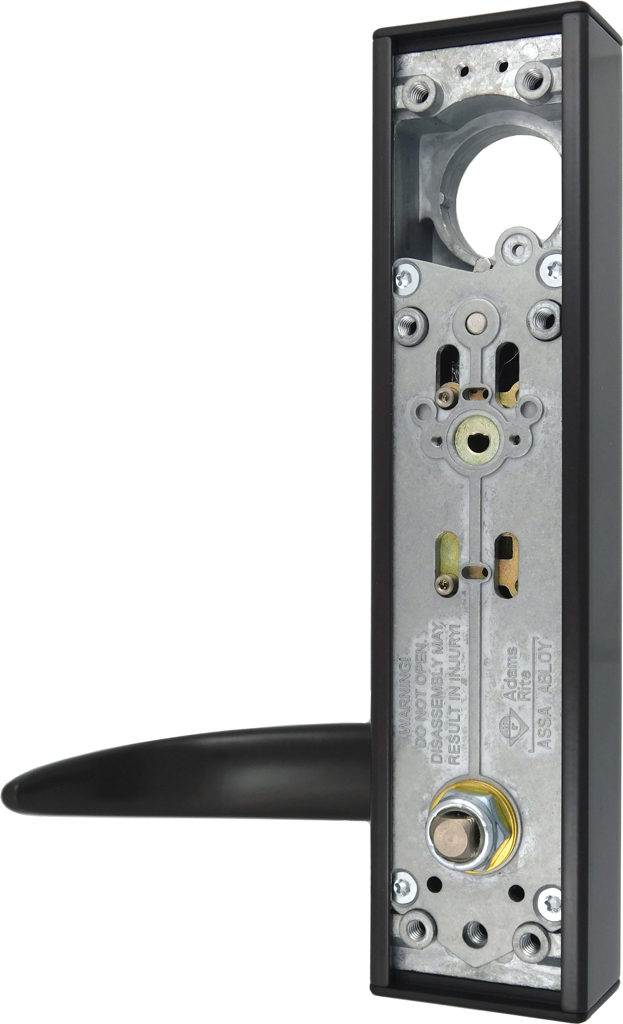

The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism. The 3080-01, -02, and -03 lever handles are designed to return within 1/2" of the door face. Handles in the Designer Series do not have this same feature. The 3080E Electrified Entry Trim provides a continuous duty solenoid mounted to the trim, which enables remote activation of the locking function without unlatching the door, making this trim ideal for stairwell and fire doors.

Specifications:

• Standard Handles: The 3080-01, -02, and -03 lever handles are designed to return within 1/2" of the door face. Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.
• Options: Can be ordered with or without a hole for cylinder. Order standard mortise cylinder with MS® cam separately. Order 4603 Rectifier, 4605/4606 Transformer or PS-1 Power Supply separately.
• 3001 and 3002 Fixed Pulls: US32D Satin Stainless Steel pulls have 2-3/4" x 11-1/2" escutcheon. Order with or without cylinder hole. For hollow metal and wood doors only.
• Door Preparation and Trim Installation: Door prep and installation will differ depending on the type of exit device being used. Refer to the Adams Rite templates for 3080 Entry Trim or 3080E Electrified Entry Trim for preparation details.

Cylinders:

• Mortise Cylinder – 4036-01: Standard diameter five-pin unit with MS cam, suitable for use with entry trim. Available in quantity all keyed different (KD), in pairs (KA2), or 50 alike (KA50).
• Any other make standard mortise cylinder with MS® cam can be used to key-in with existing systems.
• Cylinder Cam: 3080 Series Entry Trim can accept any standard 1-5/32" diameter mortise cylinder with MS® cam.

Features

• Options: Can be ordered with or without a hole for cylinder. Order standard mortise cylinder with MS® cam separately. Order 4603 Rectifier, 4605/4606 Transformer or PS-1 Power Supply separately.
• 3001 and 3002 Fixed Pulls: US32D Satin Stainless Steel pulls have 2-3/4" x 11-1/2" escutcheon. Order with or without cylinder hole. For hollow metal and wood doors only.
• Standard Handles: The 3080-01, -02, and -03 lever handles are designed to return within 1/2" of the door face. Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.
• Door Preparation and Trim Installation: Door prep and installation will differ depending on the type of exit device being used. Refer to the Adams Rite templates for 3080 Entry Trim or 3080E Electrified Entry Trim for preparation details.
