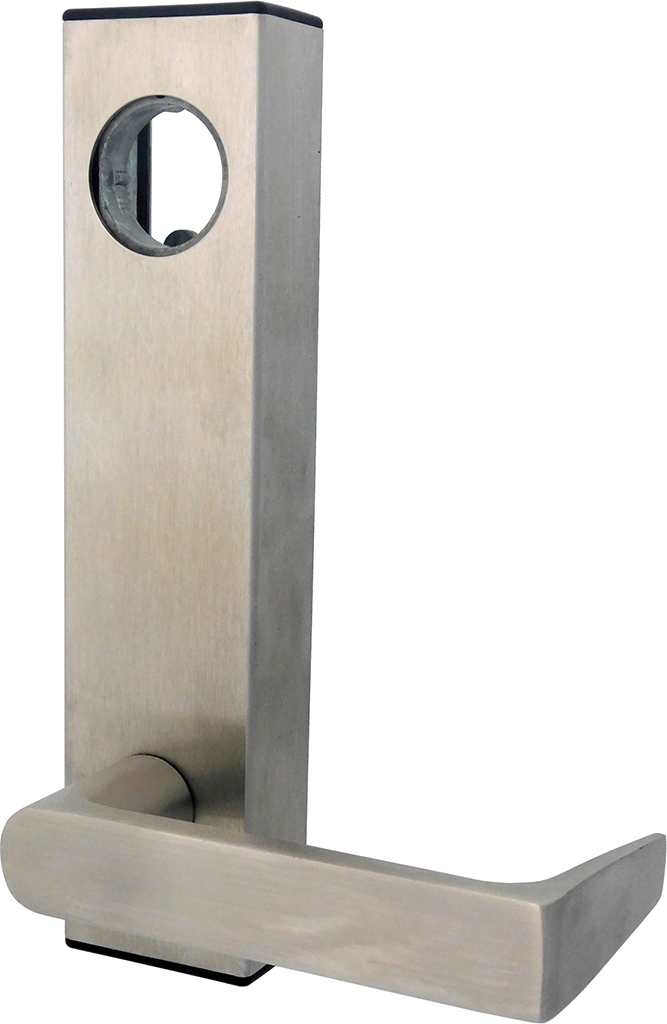

Adams Rite 3080-03-0-3U-00-32D Trim Traditional Clutch Lever, 630/US32D Satin Stainless Steel

Adams Rite Manufacturing 3080-03-0-3U-00-32D Trim Traditional Clutch Lever, 630/US32D Satin Stainless Steel offers robust functionality and security for doors equipped with Adams Rite exit devices. This entry trim is designed for outside activation, ensuring ease of use while maintaining a high level of protection against vandalism and forced entry through its innovative breakaway clutching mechanism. The lever handles, part of the 3080 Series, return within 1/2" of the door face, providing a sleek and unobtrusive profile. Options are available to customize the trim with or without a cylinder hole, allowing for versatile configurations based on your specific needs. For electrified applications, the 3080E version features a continuous duty solenoid, making it ideal for stairwell and fire doors where remote activation is essential. Constructed from durable satin stainless steel, the trim is suitable for both hollow metal and wood doors. It complies with local code requirements, ensuring reliable performance under various conditions. The compatibility with Adams Rite deadlatches and exit devices enhances its utility in commercial settings. The 3080-03 is non-handed, ensuring easy installation regardless of door orientation, while the square bent back lever style adds a modern touch to any entryway. With a finish code of US32D, this trim not only meets functional demands but also complements the aesthetic of your establishment.

Trim Traditional Clutch Lever, 630/US32D Satin Stainless Steel

The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism. The 3080-01, -02, and -03 lever handles are designed to return within 1/2" of the door face. Handles in the Designer Series do not have this same feature. The 3080E Electrified Entry Trim provides a continuous duty solenoid mounted to the trim, which enables remote activation of the locking function without unlatching the door, making this trim ideal for stairwell and fire doors.

Specifications:

• Standard Handles: The 3080-01, -02, and -03 lever handles are designed to return within 1/2" of the door face. Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.
• Options: Can be ordered with or without a hole for cylinder. Order standard mortise cylinder with MS® cam separately. Order 4603 Rectifier, 4605/4606 Transformer or PS-1 Power Supply separately.
• 3001 and 3002 Fixed Pulls: US32D Satin Stainless Steel pulls have 2-3/4" x 11-1/2" escutcheon. Order with or without cylinder hole. For hollow metal and wood doors only.
• Door Preparation and Trim Installation: Door prep and installation will differ depending on the type of exit device being used. Refer to the Adams Rite templates for 3080 Entry Trim or 3080E Electrified Entry Trim for preparation details.

Cylinders:

• Mortise Cylinder – 4036-01: Standard diameter five-pin unit with MS cam, suitable for use with entry trim. Available in quantity all keyed different (KD), in pairs (KA2), or 50 alike (KA50).
• Any other make standard mortise cylinder with MS® cam can be used to key-in with existing systems.
• Cylinder Cam: 3080 Series Entry Trim can accept any standard 1-5/32" diameter mortise cylinder with MS® cam.

Features

• Options: Can be ordered with or without a hole for cylinder. Order standard mortise cylinder with MS® cam separately. Order 4603 Rectifier, 4605/4606 Transformer or PS-1 Power Supply separately.
• 3001 and 3002 Fixed Pulls: US32D Satin Stainless Steel pulls have 2-3/4" x 11-1/2" escutcheon. Order with or without cylinder hole. For hollow metal and wood doors only.
• Standard Handles: The 3080-01, -02, and -03 lever handles are designed to return within 1/2" of the door face. Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.
• Door Preparation and Trim Installation: Door prep and installation will differ depending on the type of exit device being used. Refer to the Adams Rite templates for 3080 Entry Trim or 3080E Electrified Entry Trim for preparation details.

Resources

• Cut Sheet
