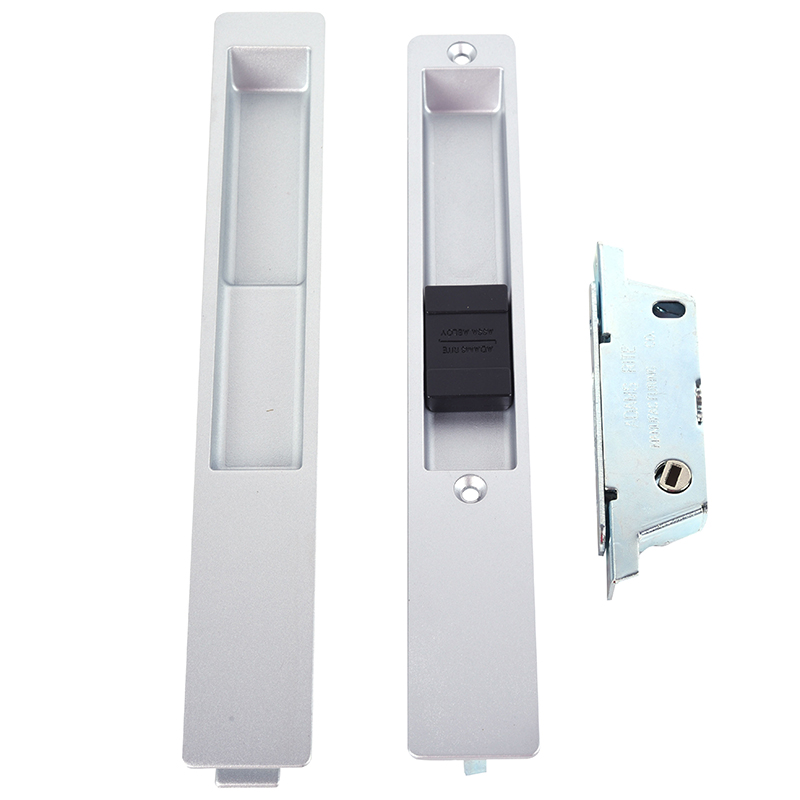

Adams Rite 4189-09-02-130IB Flush Lockset without Cylinder

Adams Rite 4189-09-02-130IB Flush Lockset No Cylinder offers a sleek and functional solution for sliding doors, specifically designed to enhance accessibility and ease of use. This flush lockset features a radius lock face and accommodates stile thicknesses ranging from 1-7/16" to 1-5/8". With its profile projecting only 1/10" from the door stile on either side, the 4189 allows doors to slide effortlessly past other units or stationary panels, preventing any obstruction from handles that could damage draperies or hinder stacking in wall pockets. Operated from the inside by a simple up or down movement of a slide button, this lockset is designed for convenience and efficiency. The lock mechanism is based on the proven Adams Rite MS1847, renowned for its durability and reliability. While it does not include a cylinder, it offers a secure locking option with an adjustable, self-protecting bolt. This model is not recommended for wood doors, making it ideal for commercial applications where robustness is essential. Adams Rite's commitment to quality is evident, with the 4189 being part of a broader selection of deadlocks and flush locksets, ensuring that you can find the perfect fit for your specific needs.

Flush Lockset No Cylinder

Flush Lockset without Cylinder, Radius Lock Face, 1-7/16" to 1-5/8" Stile Thickness, Aluminum

The 4189 and 4190 Flush Locksets for sliding doors combine the time-tested and field-proven Adams Rite MS1847 with a slide button. Projecting only 1/10" from the door stile on either side, 4189 and 4190 locksets allow doors to slide freely past other sliding units or stationary panels. There are no projecting handles to tear draperies or prevent the door from being "stacked" in a wall packet. 4190 has a flush mounted cylinder outside. Not recommended for wood doors. Both locksets operated from inside by a simple up or down movement of a slide button, set flush in the deeply recessed finger pull. The lock mechanism (latching action unavailable) is the time-tested and field-proven Adams Rite MS1847 and features the adjustable, self-protecting bolt. Matching "dummy set" is also available (4195).

Adams Rite makes a great selection of deadlocks and flush locksets.

Resources

• 1875 Two Point Deadlock Installation Instructions
• 4189, 4190 Flush Locksets Installation Instructions
• 4430, 4431 Flush Locksets Installation Instructions
• Flush Locksets and Deadlocks Cut Sheet
