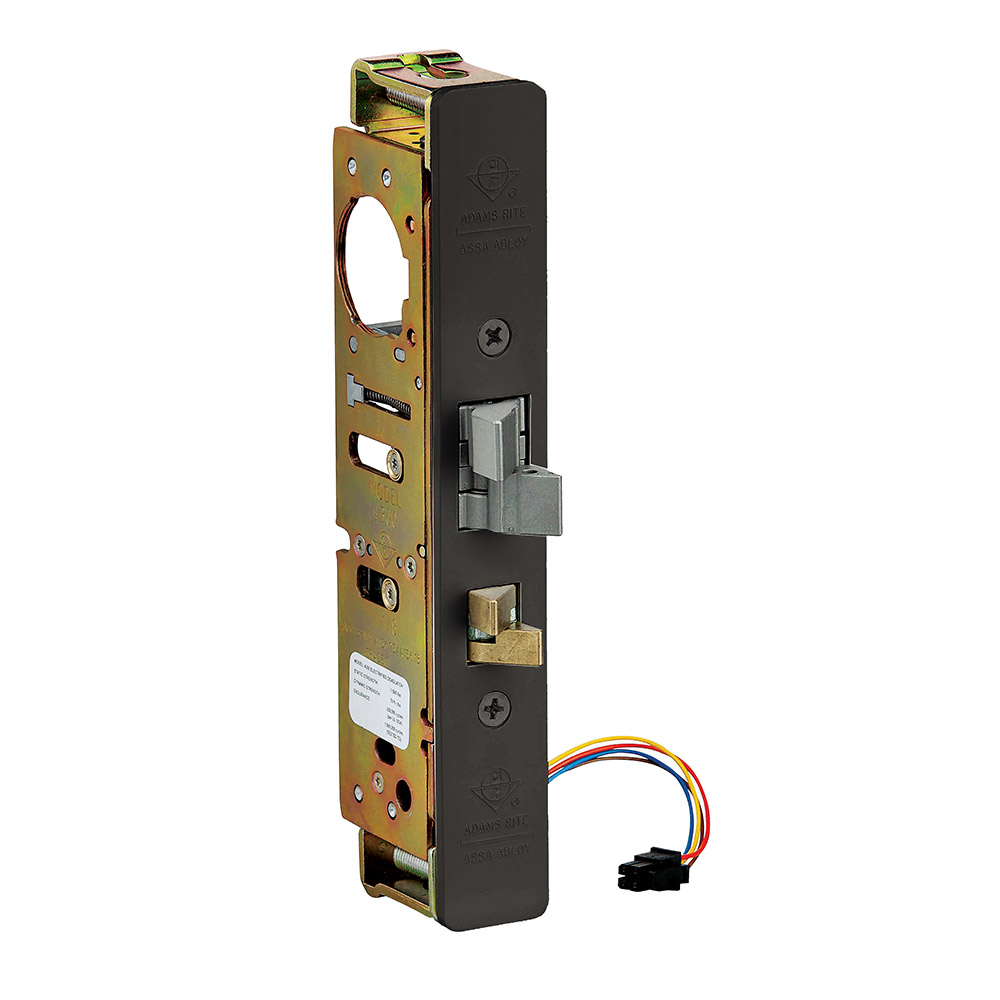

Adams Rite 4300-20-101-335 Steel Hawk eLatch 4300

Adams Rite 4300-20-101-335 4300 Steel Hawk eLatch offers a perfect blend of mechanical and electrified access control for your commercial needs. This robust electrified deadlatch features a non-handed design with a narrow 31/32" backset, making it ideal for standard aluminum entrance door preparations. It operates seamlessly with a keyed mortise cylinder or any access control element, ensuring reliable entry while maintaining security. The 4300 eLatch is fail-secure and rated for continuous duty, accommodating 12, 16, or 24 volt DC power. With a quick connect plug-in type connector, installation is straightforward. The latchbolt, constructed of stainless steel, boasts a 5/8" x 1" x 5/8" throw, while the auxiliary bolt enhances security by preventing unauthorized entry methods. The case measures 15/16" x 5-13/16" and features corrosion-resistant plating for durability. Included with the eLatch are both flat and radius faceplates, which can be adjusted on-site to fit right or left beveled edge doors. This model is designed for 1-3/4" minimum door thickness and is compatible with MS Deadlocks and other Adams Rite deadlatches without stile modification. Elevate your door security with the versatility and reliability of the Adams Rite Steel Hawk eLatch.

4300 Steel Hawk eLatch

Steel Hawk Electrified Deadlatch, 31/32" Backset, Surface Strike, Black

The Steel Hawk 4300 Electrified Deadlatch (eLatch) combines non-handed, narrow backset, mechanical locking hardware with electrified access control. The 4300 eLatch combines mechanical locking hardware with electrified access control while working within standard aluminum entrance door preparations. Always operable from the inside via handle or paddle device. Entry via keyed mortise cylinder or access control element. Fail-secure lock with optional form "C" latch status monitor. The standard 4300 operates on 12, 16, or 24 volt DC power and is rated for continuous duty. Units are equipped with a quick connect plug-in type connector. Interchangeable without stile modification for MS Deadlocks or 4500 and 4900 Deadlatches. 1-3/4" minimum door thickness required. Turn key, apply voltage, or operate handle or paddle to release the spring-loaded latchbolt. Electrically-rated for continuous duty for timed applications. Interface with access control. Uses any standard mortise cylinder with MS cam.

Combines non-handed, narrow backset, mechanical locking hardware with electrified access control.

• Cylinder Backset: 31/32”, 1-1/8”, and 1-1/2”
• Case: Measures 15/16” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
• Latchbolt: 5/8” x 1” x 5/8” throw. Stainless steel.
• Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.
• Faceplates: Measures 1” x 6-7/8”. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.
• Voltage: Field-selectable to match power source of 12, 16, or 24 VAC/VDC
