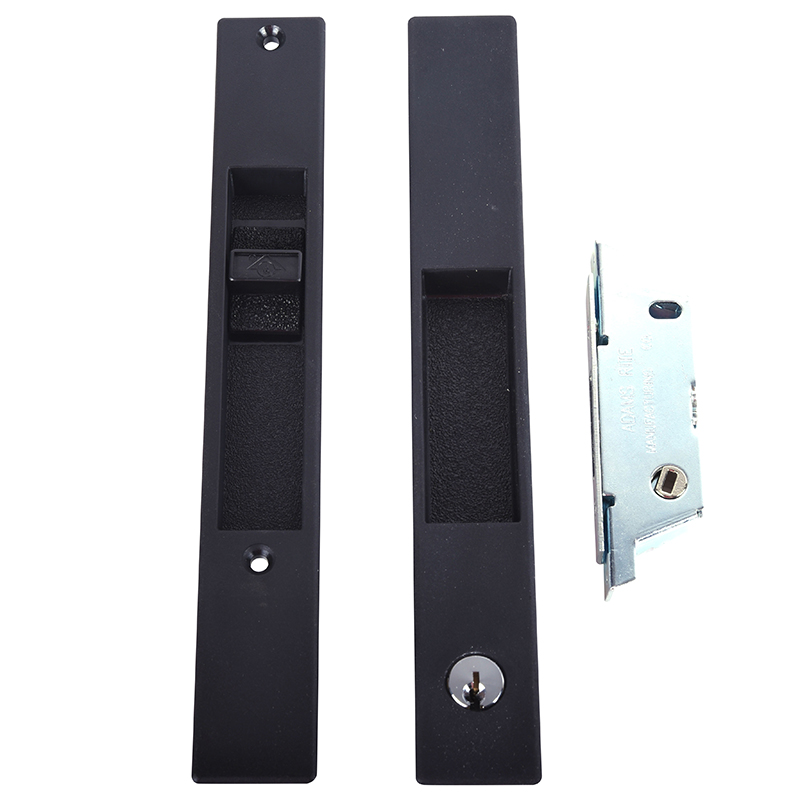

Adams Rite 4431-10-00-01-IB Flush Lock Set

Adams Rite 4431-10-00-01-IB Flush Lock Set offers a reliable and elegant solution for sliding doors, specifically designed for commercial applications. This flush lockset features a sturdy ABS construction and a sleek black satin finish, making it an attractive addition to aluminum door stiles. With a square lock face and compatibility for stile thicknesses ranging from 1" to 1-5/16", it provides versatility for various installations. The 4431 model combines the trusted Adams Rite MS1847 design with a user-friendly slide button mechanism. Operated from the inside with a simple up or down motion, the lockset is set flush within a deeply recessed finger pull, ensuring an unobtrusive look and feel. While this unit is not recommended for wood doors, it is ideal for commercial environments needing both security and aesthetics. The lock mechanism is based on the proven Adams Rite MS1848, featuring an adjustable, self-protecting bolt that enhances security. For those seeking a complete look, a matching dummy set (model 4432) is also available. With its combination of durability, functionality, and style, the Adams Rite 4431-10-00-01-IB Flush Lock Set is an excellent choice for professionals looking to secure sliding doors effectively.

Flush Lock Set

ABS Flush Lockset with Cylinder, Square Lock Face, 1" to 1-5/16" Stile Thickness

The 4430 and 4431 Flush Locksets for sliding doors combine the time-tested and field-proven Adams Rite MS1847 with a slide button. Similar in function and nearly identical in size to the all-metal 4189 and 4190 Flush Locksets, these economical units feature escutcheons molded of sturdy ABS resin. The black satin finish of the 4430 and 4431 lends elegance to aluminum door stiles. Not recommended for wood doors. Both locksets operated from inside by a simple up or down movement of a slide button, set flush in the deeply recessed finger pull. The lock mechanism (latching action unavailable) is the time-tested and field-proven Adams Rite MS1848 and features the adjustable, self-protecting bolt. Matching "dummy set" is also available (4432).

Adams Rite makes a great selection of deadlocks and flush locksets.

Resources

• 1875 Two Point Deadlock Installation Instructions
• 4189, 4190 Flush Locksets Installation Instructions
• 4430, 4431 Flush Locksets Installation Instructions
• Flush Locksets and Deadlocks Cut Sheet
