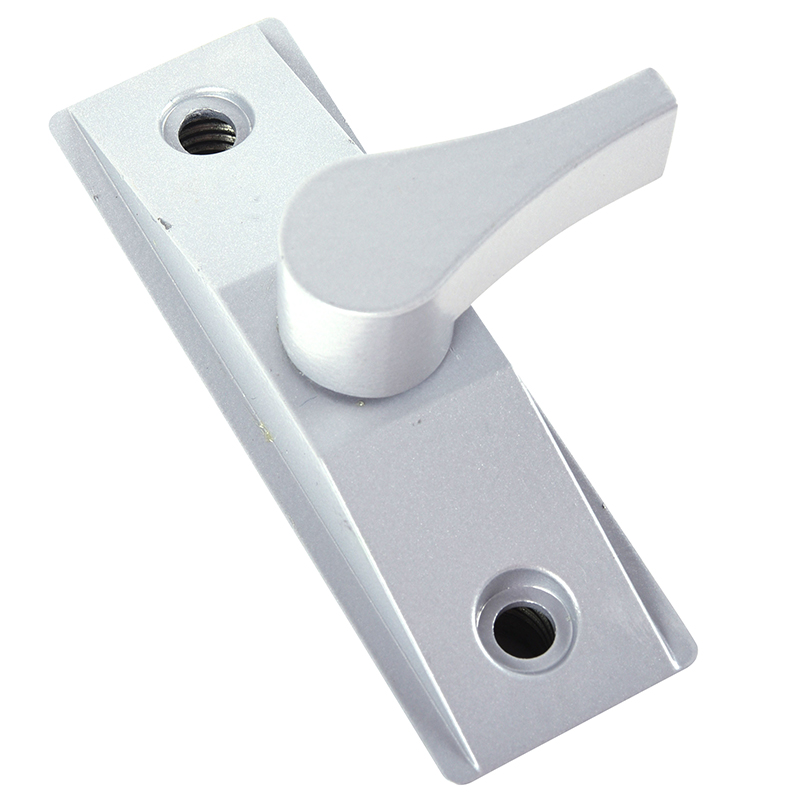

Adams Rite 4565-501-130 Thumbturn Handle

Adams Rite 4565-501-130 Thumbturn Handle offers a reliable solution for infrequent door operations or emergencies. Designed for doors ranging from 1-3/4 inches to 2 inches thick, this left-hand or left-hand reverse (LH or LHR) handle is finished in sleek satin aluminum paint, ensuring a modern aesthetic that complements any environment. This thumbturn lever trim is engineered to operate with Adams Rite's 4300, 4500, and 4900 Series Deadlatches, utilizing a natural downward motion for ease of use. The handle features an activator cam disc that securely fits into the latch’s cylinder hole, while its thoughtfully designed grip allows for firm fingertip control. It is important to note that this handle is not intended for use as a pull. Installation is straightforward, with a reversible handing feature that can be adjusted in the field by removing a spring clip and reversing the cam. The cam plug is secured in the latch body by a cylinder setscrew, enhancing its durability. Each unit is individually bagged for convenience and can be bulk-packed, making it an efficient choice for commercial applications. With a limited 5-year warranty, the Adams Rite 4565-501-130 Thumbturn Handle is a dependable addition to your door hardware collection.

Thumbturn Handle

Thumbturn Lever Trim, For infrequent operation or emergencies only, For 1-3/4 In. to 2 In. Thick Door, LH or LHR, Satin Aluminum Paint

Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull. 4565 thumbturn lever of minimum practical length is designed to offer a firm grip to the fingertips. Ideal for doors where the latch is operated infrequently or in emergencies only. Includes cam plug which is secured in latch body by cylinder set screw, the plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip. Individually bagged.

Easily unlock the 4300, 4500 and 4900 Series Deadlatches.

Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull.

• 4560 Handle: ADA Compliant lever is shaped to fit the hand, with a concave thumb-rest portion that tends to keep knuckles and thumb safely away from the jamb, even on a short backset narrow stile.
• 4565 Handle: Thumbturn of minimum practical length is designed to offer a firm grip to the fingertips. Ideal for doors where the latch is operated infrequently or in emergencies only.
• Escutcheons: Both handles shown here use the same 1-3/8” x 4” escutcheon, designed to match the clean lines of a narrow stile door. A 1/4” square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
• Cam Plugs: Secured in latch body by cylinder setscrew, the plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.
• Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. The standard handles shown are for 1-3/4” thick doors. Available on special order for doors up to 3-1/4”.
• Standard Package: Individually bagged and bulk-packed in cartons, up to 100 per carton.

Resources

• 4560/4565 Deadlatch Handle Cut Sheet
