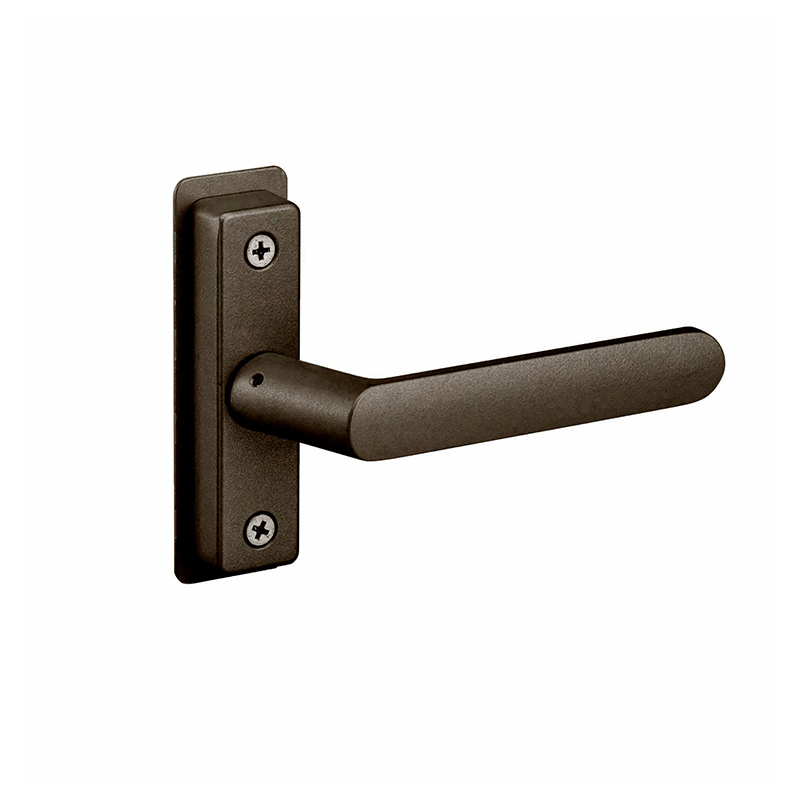

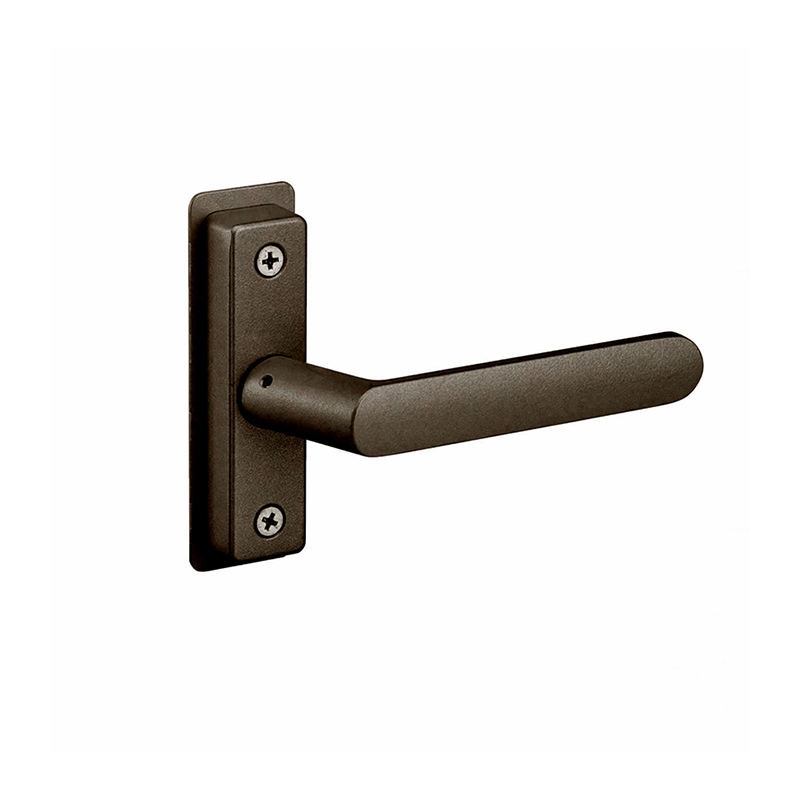

Adams Rite 4568-601-121 Aluminum Door Trim

Images may not represent actual product and finish

Adams Rite 4568-601-121 Aluminum Door Trim

Your Price: $48.86

Retail Price:$79.00

Your Savings:$30.14(38%)

Flat Euro Lever Trim without Return, For 1-3/4 In. to 2 In. Thick Door, RH or RHR, Dark Bronze Paint

Part Number

: ADR_4568601121

Availability: 71 In Stock

Quantity

Description

Adams Rite 4568-601-121 Aluminum Door Trim

Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles escutcheon and fits solidly into the cylinder hole of the latch.

Features

Cam Plugs: Secured in latch body by cylinder setscrew, plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.
Escutcheons: Both handles shown use the same 1-3/8" x 4" escutcheon, designed to match the clean lines of a narrow stile door. Steel mounted base is secured by hidden screws and has two large helical compression springs. (One becomes a "spare" once handing is given.) A 1/4" square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
Standard Package: Packed individually with cam plug handed LH or RH as specified. Mounting screws included. Shipping weight: 1/2 lb.
Levers: Lever of cast aluminum, in choice of 130 Satin Aluminum, 121 Dark Bronze, or 119 Black. Modern European styling offers a generous hand grip with shank offset from the narrow stile jamb for hand safety. 4569 has return end to meet anti-snag code requirements.
Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. The three standard handles shown are for 1-3/4" thick doors. Available on special order for doors up to 3-1/4".

Attributes

Alternate Codes: 100842, 214276, 4568-601-121, 4568-601313, 4568601121, 4568601313, ADR4568-601313

Baa Qualified: Yes

Base Material: VARIES

Category: Glass Aluminum Hardware, Levers, Handles & Pulls, Locking Hardware, Lock Sets

Commercial Residential: Commercial

Compatibility: 4700, 4900, AdamsRite 4500

Country of Origin: Usa

Country of origin: USA

Door Application: Glass Aluminum Hardware

Door Thickness: 1-3/4" - 2"

Door Thickness Max: 2"

Door Thickness Min: 1-3/4"

Finish: Satin Aluminum

Finish Code: 313

Finish Color: Satin Aluminum

Finish Description: Dark Bronze Ritecoat Paint

For Use With: 4300, 4500 and 4900 Series

Function: Deadlatch Trim Lever

Hand: RH

Handing: Right Handed, Right Handed Reverse

Installation: Commercial

Knob/ Lever Design: Straight

Knob/ Lever Style: Lever

Lever Knob Design: Flat Euro Lever, No Return

Lever Style: Lever For Deadlatches, Straight

Leverknob Design: Flat Euro Lever, No Return

Limited Warranty: 5 Years

Origin: USA

Pack Height: 2.75"

Pack Length: 5"

Pack Qty: 1

Pack Volume: 61.88 in³

Pack Width: 4.5"

Product Height: 2.34"

Product Length: 3.95"

Product Width: 1.34"

Rose Escutcheon Design: Rectangle

Roseescutcheon Design: Rectangle

Screws: Machine

Series: 4560

Ship Weight: 0.7 lbs.

Subtype: Aluminum Door Trim

Supplier: Adams Rite

Type: GLASS ALUMINUM HARDWARE

Unit of Measure: Each
