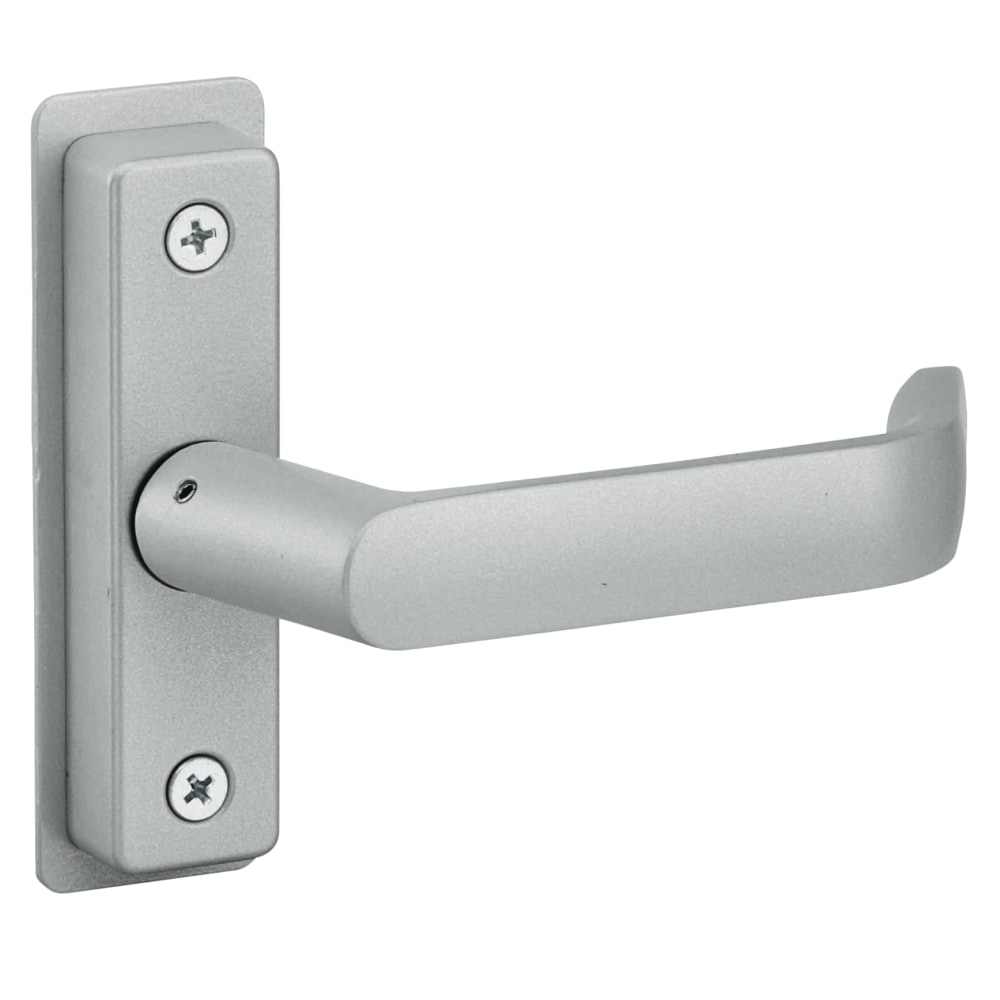

Adams Rite 4569-502-130 Lever w/Return for MS1890 Latch offers a sleek and modern solution for your door hardware needs. Designed specifically for 2-1/4 to 2-1/2-inch thick doors, this flat Euro lever trim features a return end that not only enhances aesthetics but also meets anti-snag code requirements. The lever operates seamlessly with 4500, 4700, and 4900 series latches, utilizing a natural downward motion for effortless operation. Constructed from cast aluminum, this lever comes in a refined Satin Aluminum finish, ensuring durability while providing a generous hand grip. The hidden mounting screws create a clean, contemporary look, while the cam disc securely fits into the latch cylinder, ensuring reliable functionality. This lever is adaptable for left-hand or right-hand doors and can be reconfigured in the field, making it versatile for various applications. Packed individually with mounting screws and a cam plug, the Adams Rite 4569-502-130 is an excellent choice for commercial installations. With a limited warranty of five years, you can trust in its quality and performance. Elevate your door hardware with this stylish and effective lever trim, designed to suit both function and form.

Lever w/Return for MS1890 Latc

Flat Euro Lever Trim with Return, For 2-1/4 In. to 2-1/2 In. Thick Door, LH or LHR, Satin Aluminum Paint

Euro style lever handles are designed to operate 4500, 4700, 4900 series latches with a natural downward motion. These handles include an activator cam disc that mounds on the handle escutcheon and fits solidly into the latch lock. Not intended for use as a door pull. Mounting screws are hidden for a clean, modern look. Lever and cam disc are easily handed. Standard unit fits 1-3/4 In. thick doors. Available for doors up to 3-1/4 In. thick. Packed individually with cam plug and two 10-32 mounting screws.

These handles fit solidly into the cylinder hole of the latch.

Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull.

• Levers: Lever of cast aluminum, in choice of 130 Satin Aluminum, 121 Dark Bronze, or 119 Black. Modern European styling offers a generous hand grip with shank offset from the narrow stile jamb for hand safety. 4569 has return end to meet anti-snag code requirements.
• Escutcheons: Both handles shown use the same 1-3/8” x 4” escutcheon, designed to match the clean lines of a narrow stile door. Steel mounted base is secured by hidden screws and has two large helical compression springs. (One becomes a “spare” once handing is given.) A 1/4” square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
• Cam Plugs: Secured in latch body by cylinder setscrew, plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.
• Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. The three standard handles shown are for 1-3/4” thick doors. Available on special order for doors up to 3-1/4”.
• Standard Package: Packed individually with cam plug handed LH or RH as specified. Mounting screws included. Shipping weight: 1/2 lb.

Resources

• 4560, 4561, 4565 Eurostyle Deadlatch Handles for 4500/4700 Installation Instructions
• 4568 Eurostyle Deadlatch Handle Installation Instructions
