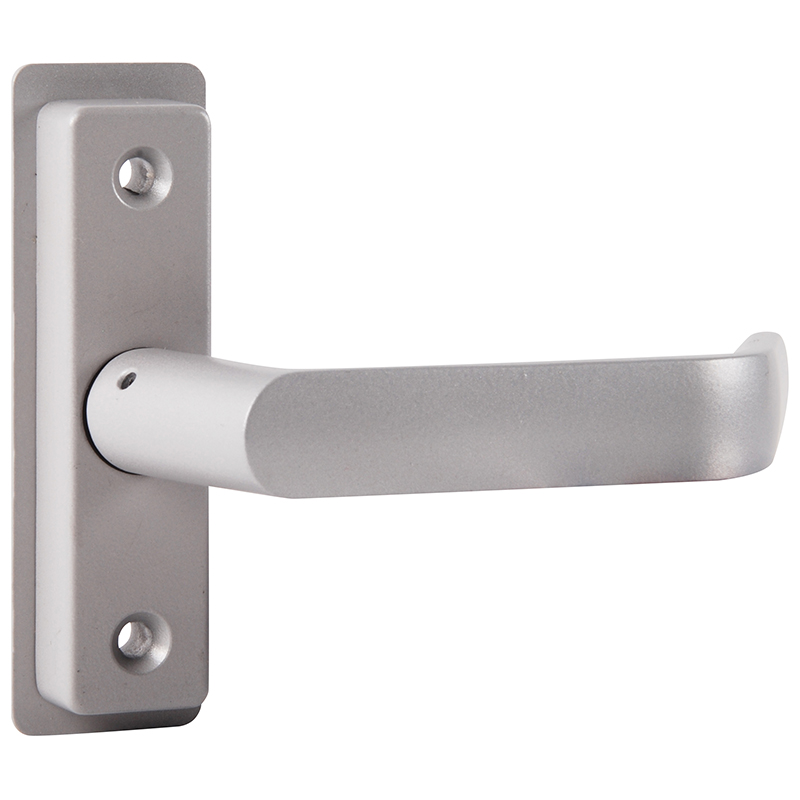

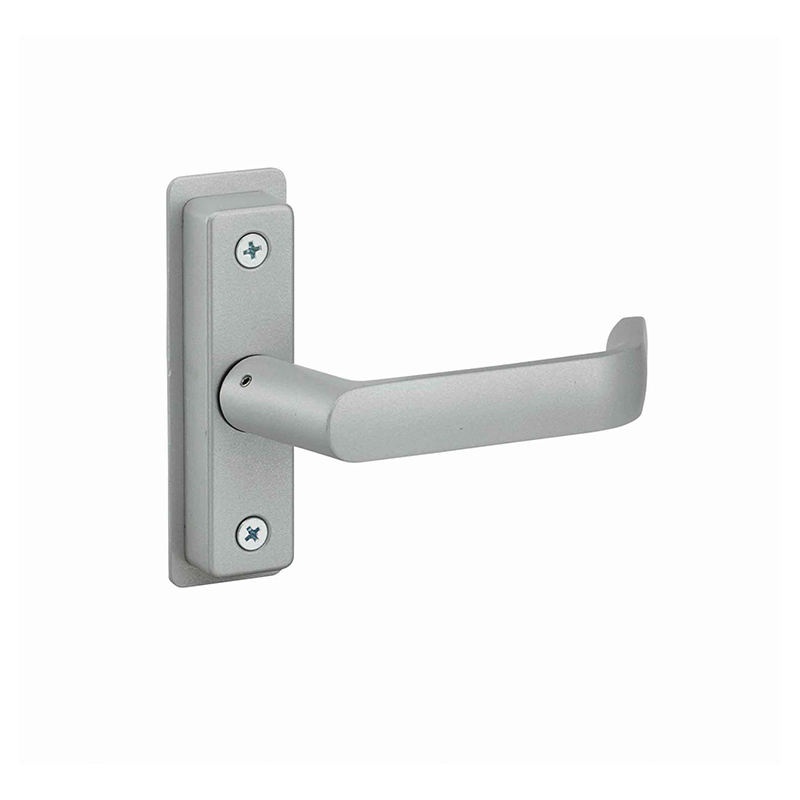

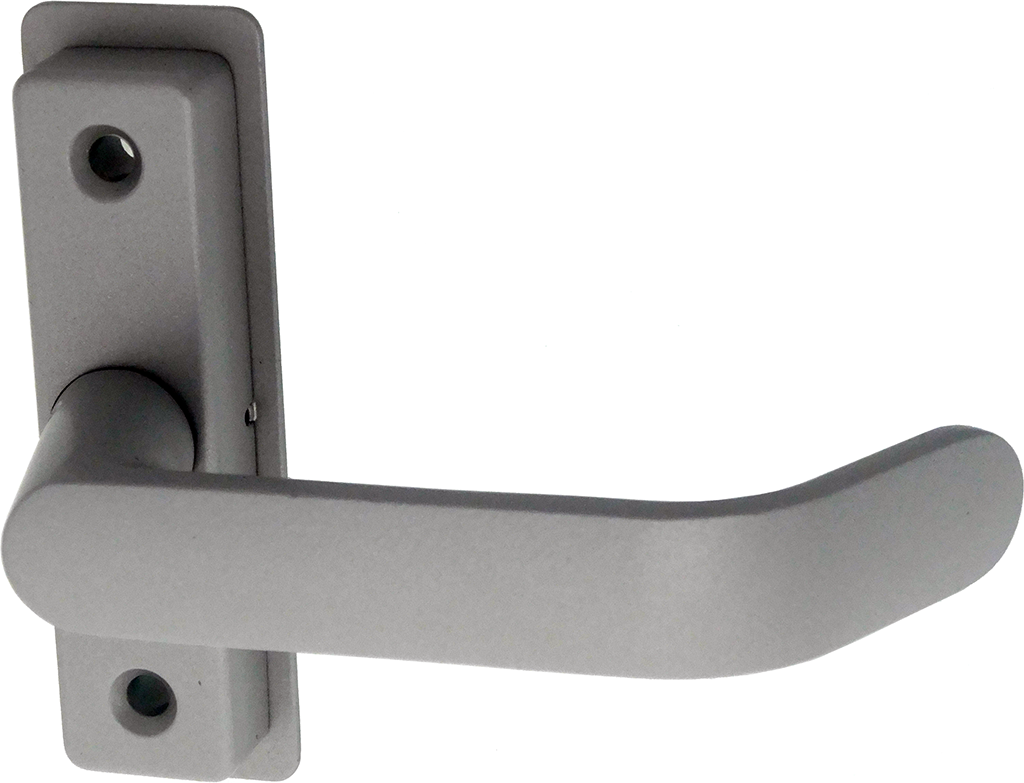

Adams Rite 4569-601-130 Aluminum Door Trim

Images may not represent actual product and finish

Adams Rite 4569-601-130 Aluminum Door Trim

Your Price: $48.06

Retail Price:$91.00

Your Savings:$42.94(47%)

Flat Euro Lever Trim with Return, For 1-3/4 In. to 2 In. Thick Door, RH or RHR, Satin Aluminum Paint

Part Number

: ADR_4569601130

Availability: 78 In stock

Quantity

Description

Adams Rite 4569-601-130 Aluminum Door Trim

Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles escutcheon and fits solidly into the cylinder hole of the latch.

Features

Cam Plugs: Secured in latch body by cylinder setscrew, plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.
Escutcheons: Both handles shown use the same 1-3/8" x 4" escutcheon, designed to match the clean lines of a narrow stile door. Steel mounted base is secured by hidden screws and has two large helical compression springs. (One becomes a "spare" once handing is given.) A 1/4" square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
Standard Package: Packed individually with cam plug handed LH or RH as specified. Mounting screws included. Shipping weight: 1/2 lb.
Levers: Lever of cast aluminum, in choice of 130 Satin Aluminum, 121 Dark Bronze, or 119 Black. Modern European styling offers a generous hand grip with shank offset from the narrow stile jamb for hand safety. 4569 has return end to meet anti-snag code requirements.
Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. The three standard handles shown are for 1-3/4" thick doors. Available on special order for doors up to 3-1/4".

Attributes

Ship via: Can Ship UPS

Alternate Codes: 126004, 4569-601-130, 4569-601-130-628, 4569-628, 4569601130, 4569601130628, 4569628, ADR4569-501-RC130, ADR4569-601-130-628, ADR4569-601-RC130, ADR4569-628, RC 130, RC130

Baa Qualified: Yes

Category: Glass Aluminum Hardware, Levers, Handles & Pulls, Locking Hardware, Lock Sets

Compatibility: 4700, 4900, AdamsRite 4500

Country of Origin: Usa

Door Application: Glass Aluminum Hardware

Door Thickness: 1-3/4" - 2"

Finish: Satin Aluminum

Finish Code: 628

Finish Color: Satin Aluminum

Finish Description: Satin Aluminum Ritecoat Paint

For Use With: 4300, 4500 and 4900 Series

Hand: RH

Handing: Right Handed, Right Handed Reverse

Knob/ Lever Design: Return End

Lever Knob Design: Flat Euro Lever w/Return

Lever Style: Bent Back to Door, Lever For Deadlatches

Limited Warranty: 5 Years

Rose Escutcheon Design: Rectangle

Screws: Machine

Series: 4560

Subtype: Aluminum Door Trim

Type: GLASS ALUMINUM HARDWARE
