Adams Rite 4581-01 Aluminum Door Lock Parts and Accessories

Features

• Cylinder Backset: 31/32" [24.6 mm], 1-1/8"[28.6 mm], and 1-1/2" [38.1 mm].
• Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent "loiding" or case-knife entry. Faceplate Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. Both flat and radius Faceplates are supplied. Flat Faceplates can also be adjusted in the field for right or left beveled edge doors.
• Note: The 4600M with monitoring switch option cannot be used in conjunction with the 4300 Electrified Deadlatch.
• Strike: Pick from optional Strikes. 4304 no-cut surface mounted strike for easy retrofits. Specify 4901-01 mortised-flush version when covering existing MS® deadlock preparation or for new applications. 4901-02 strike is available with radius profiles for pairs of doors and with extended lips of center-hung or thick door applications.
• Backset, strike, and finish must be specified when ordering.
• Latchbolt: Stainless steel. Measures 5/8" x 1" x 5/8"[15.9 mm x 25.4 mm x 15.9 mm] throw.

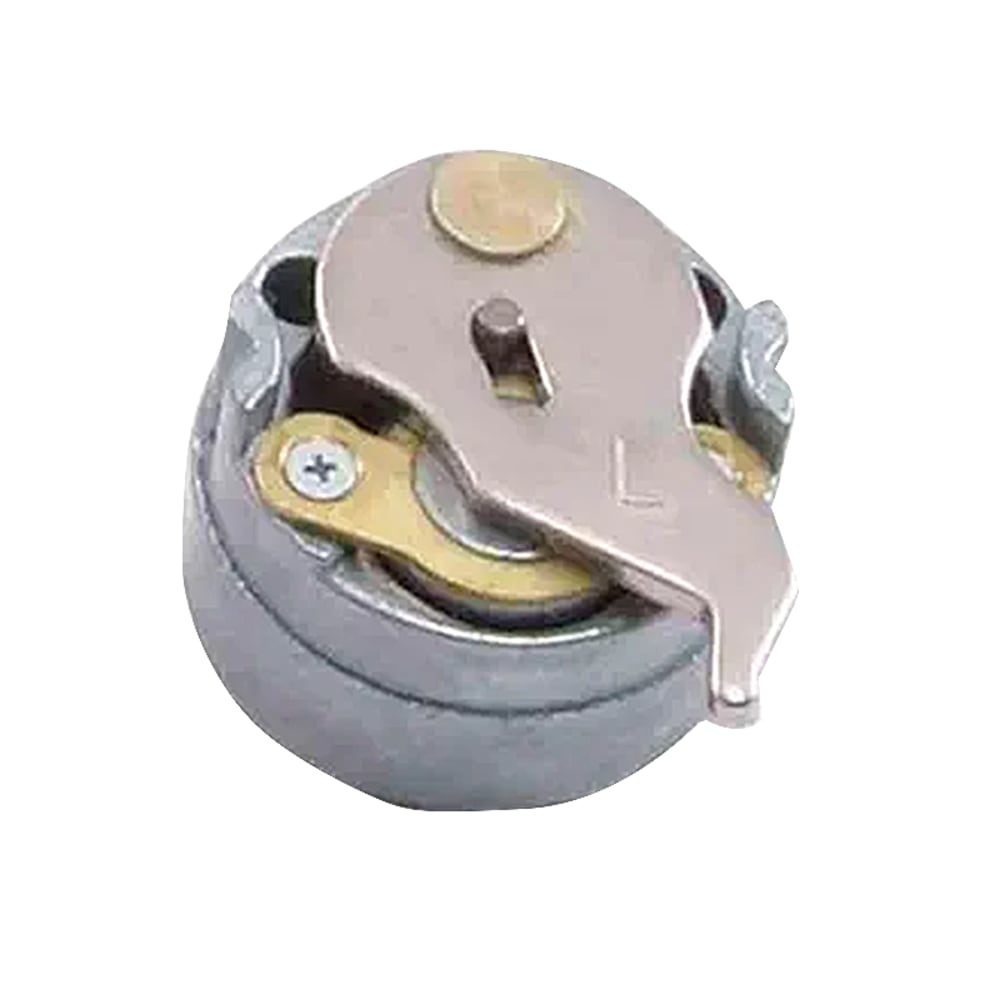

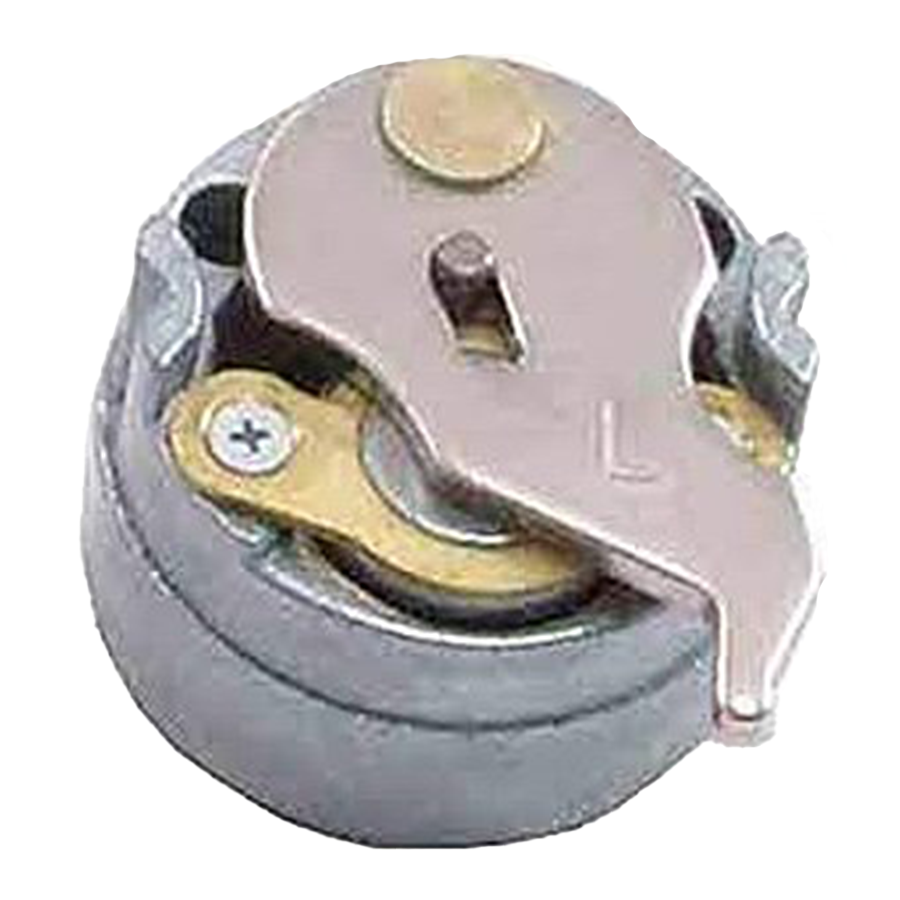

• Standard Package: Individually boxed with strike plate, flat and radius Faceplates, and mounting screws. Supplied with 4581 Universal Cam Plug to work with specified handles or paddle operators. Cylinder, paddle, handle available separately.
• Case: Steel with corrosion-resistant plating. Measures 15/16" x 5-13/16" x depth [23.8 mm x 147.6 mm x depth]. Depth varies by backset.
• Options:
• Pairs the non-handed, narrow backset, electrified deadlatch with multiple Faceplates in a single package. Includes one electrified deadlatch and four Faceplates: 2 flat Faceplates, 2 radius Faceplates: one each of 628 Clear and one 313 Dark bronze anodized finish.
• Voltage: Field-selectable to match power source of 12, 16, or 24 VDC. Current Draw/Amps 0.44A at 12VDC 0.458A at 16VDC (0.23A at 24VDC Required 16 VDC adapter (P/N VA 7400-16VDC))
• Optional form "C" latch status monitoring available.
