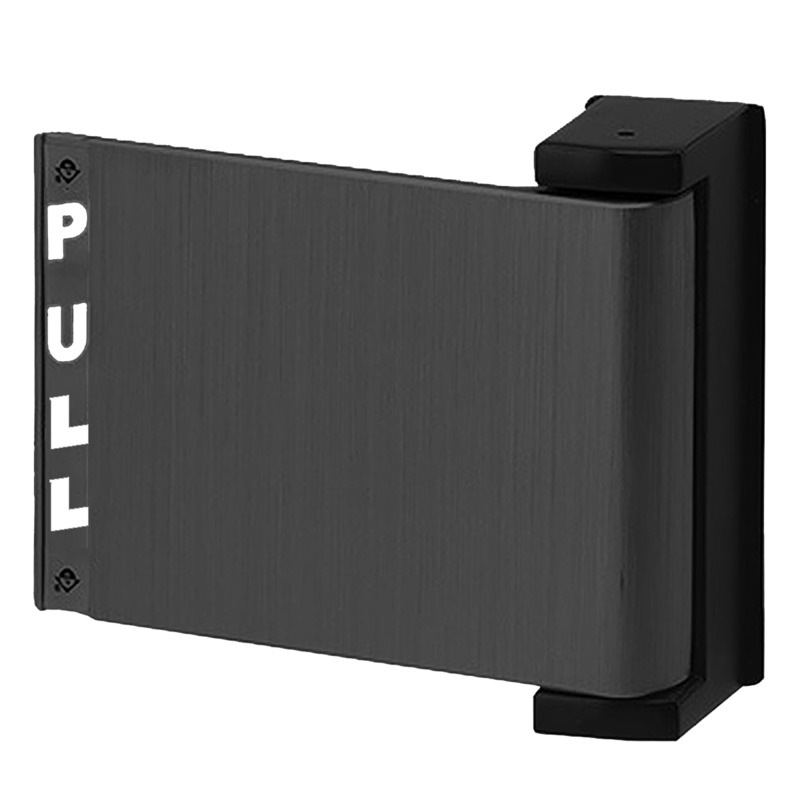

Adams Rite 4590-01-00-335 Aluminum Door Trim

Images may not represent actual product and finish

Adams Rite 4590-01-00-335 Aluminum Door Trim

Your Price: $70.27

Retail Price:$128.000

Your Savings:$57.73(45%)

Flat Deadlatch Paddle, Pull to Left, For 1-3/4 In. Thick Door, RH (or Exterior of LHR), Black Anodized

Part Number

: ADR_45900100335

Availability: 12 In Stock

Quantity

Description

Adams Rite 4590-01-00-335 Aluminum Door Trim

An alternative to knob or lever handles. Adams Rite paddle operator makes opening a latched door as natural as opening an unlatched door. Just push or pull in the direction the door swings. Available for any Adams Rite 4500, 4900, MS+1890 and 2190 series locks. Cam plug is furnished for use with 4500 and 4900 series latches. Cam plug is not required with the MS+1890 and the 2190 locks. Plug is secured in latch body by cylinder set screw and tied to escutcheon with two hardened steel pins. Escutcheon is constructed from zinc alloy and finished with black Rite coat finish. Escutcheon houses a steel mechanism and is secured to the door stile with special binder posts for a solid installation. Available in four configurations, push, pull, left and right, but can easily be handed in the field as needed. Individually boxed with mounting hardware. Standard unit fits 1-3/4 In. thick doors. Available for thicker doors.

Features

Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.
Escutcheon: Zinc alloy with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available.
Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug. Shipping weight: 1-1/2 lb.
Options: First dash number specified operation (handing) and compatible latch. Second dash number can be used to specify non-standard units for doors thicker than 1-3/4".

Attributes

Ship via: Can Ship UPS

Alternate Codes: 4590-01-00-335, 45900100335

Baa Qualified: Yes

Base Material: Aluminum

Category: Glass Aluminum Hardware, Levers, Handles & Pulls, Locking Hardware, Lock Sets

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Door Application: Glass Aluminum Hardware

Door Thickness: 1-3/8" - 1-3/4"

Finish: 315/335

Finish Code: BLK

Finish Color: Anodized Aluminum, Black, Black, Black/Gray, Black Powder Coat

Finish Description: Black Anodized Aluminum

For Use With: 4300, 4500 and 4900 Series

Hand: RH

Handing: RH

Installation: Commercial

Lever Knob Design: Flat Paddle

Leverknob Design: Flat Paddle

Limited Warranty: 5 Years

Origin: USA

Pack Height: 2"

Pack Length: 6.38"

Pack Qty: 1

Pack Volume: 57.38 in³

Pack Width: 4.5"

Product Height: 4"

Product Length: 5.43"

Product Width: 2.31"

Push Pull Paddle Style: 4500, 4900 Deadlatch, Flat Style, For 4300

Screws: Machine

Series: 4590 Deadlatch Paddle

Ship Weight: 1.5 lbs.

Subtype: Aluminum Door Trim

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each
