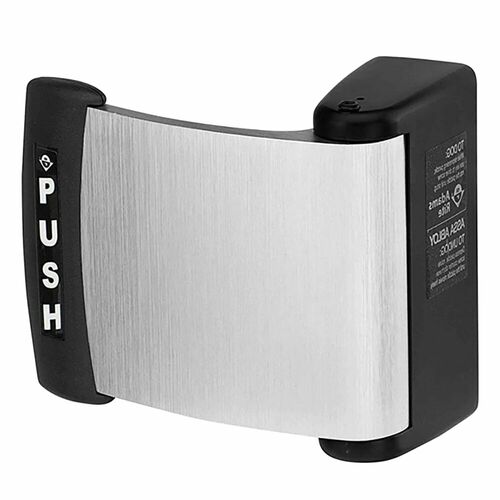

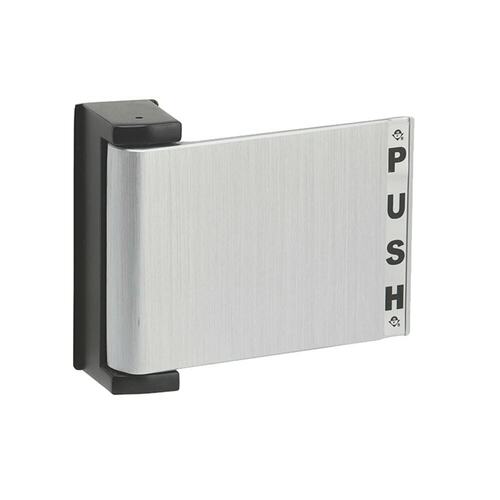

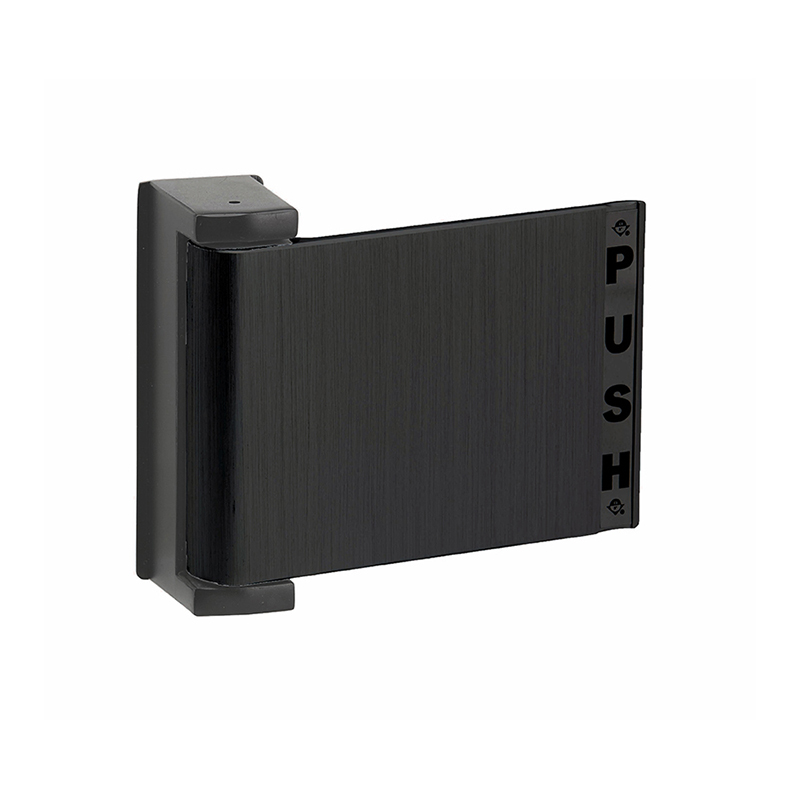

An alternative to knob or lever handles. Adams Rite paddle operator makes opening a latched door as natural as opening an unlatched door. Just push or pull in the direction the door swings. Available for any Adams Rite 4500, 4900, MS+1890 and 2190 series locks. Cam plug is furnished for use with 4500 and 4900 series latches. Cam plug is not required with the MS+1890 and the 2190 locks. Plug is secured in latch body by cylinder set screw and tied to escutcheon with two hardened steel pins. Escutcheon is constructed from zinc alloy and finished with black Rite coat finish. Escutcheon houses a steel mechanism and is secured to the door stile with special binder posts for a solid installation. Available in four configurations, push, pull, left and right, but can easily be handed in the field as needed. Individually boxed with mounting hardware. Standard unit fits 1-3/4 In. thick doors. Available for thicker doors.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: 4590-04-00-335, 45900400335, ADR4590-04-00-335
Baa Qualified: Yes
Base Material: Aluminum
Category: Glass Aluminum Hardware, Levers, Handles & Pulls, Locking Hardware, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Door Application: Glass Aluminum Hardware
Door Thickness: 1-3/8" - 1-3/4"
Finish: 315/335
Finish Code: BLK
Finish Color: Anodized Aluminum, Black, Black, Black/Gray, Black Powder Coat
Finish Description: Black Anodized Aluminum
For Use With: 4300, 4500 and 4900 Series
Installation: Commercial
Lever Knob Design: Flat Paddle
Leverknob Design: Flat Paddle
Limited Warranty: 5 Years
Origin: USA
Pack Height: 2"
Pack Length: 6.38"
Pack Qty: 1
Pack Volume: 57.38 in³
Pack Width: 4.5"
Product Height: 4"
Product Length: 5.43"
Product Width: 2.31"
Push Pull Paddle Style: 4500, 4900 Deadlatch, Flat Style, For 4300
Screws: Machine
Series: 4590 Deadlatch Paddle
Ship Weight: 1.5 lbs.
Subtype: Aluminum Door Trim
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
