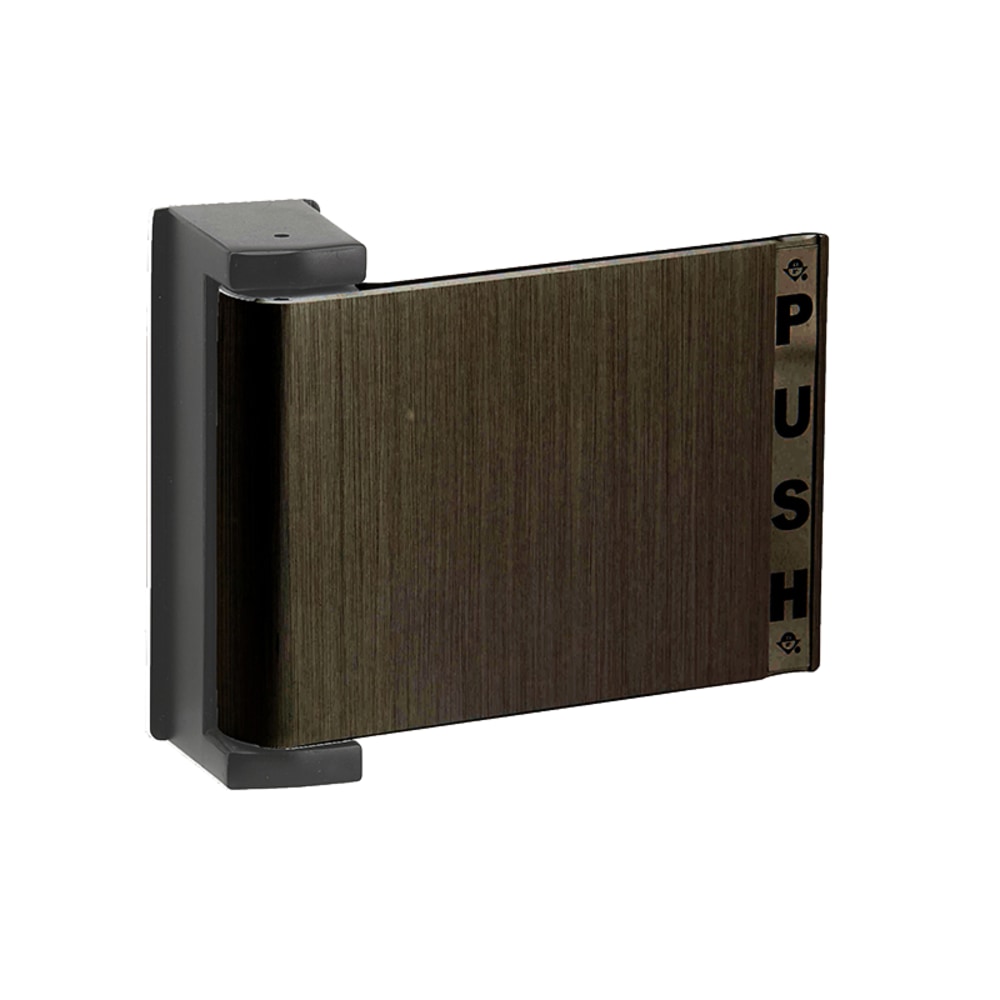

Adams Rite 4590-04-03-313 Paddle Operator 4500/4900 offers a seamless solution for effortlessly accessing latched doors. This flat deadlatch paddle operator is designed for doors ranging from 2-3/4 inches to 3 inches in thickness and features a push-to-right operation. Crafted from extruded aluminum, the paddle is available in a dark bronze anodized finish, ensuring durability and aesthetic appeal. Eliminating the need for traditional knob or lever handles, this paddle operator allows users to open a latched door as easily as an unlatched one-simply push or pull in the direction the door swings. It is compatible with Adams Rite's 4300, 4500, and 4900 series deadlatches, as well as the MS+1890 and 2190 interconnected deadbolts. The paddle’s escutcheon is constructed from robust zinc alloy and houses a steel operating mechanism, offering a solid installation with resistance to torque loads. The 4590 Paddle Operator is available in multiple handing configurations and is individually boxed with all necessary mounting hardware. With a five-year limited warranty, this product exemplifies quality craftsmanship and reliability, making it an ideal choice for commercial applications.

Paddle Operator 4500/4900

Flat Deadlatch Paddle, Push to Right, For 2-3/4 In. to 3 In. Thick Door, LHR (or Exterior of RH), Dark Bronze Anodized

An alternative to knob or lever handles. Adams Rite paddle operator makes opening a latched door as natural as opening an unlatched door. Just push or pull in the direction the door swings. Available for any Adams Rite 4500, 4900, MS+1890 and 2190 series locks. Cam plug is furnished for use with 4500 and 4900 series latches. Cam plug is not required with the MS+1890 and the 2190 locks. Plug is secured in latch body by cylinder set screw and tied to escutcheon with two hardened steel pins. Escutcheon is constructed from zinc alloy and finished with black Rite coat finish. Escutcheon houses a steel mechanism and is secured to the door stile with special binder posts for a solid installation. Available in four configurations, push, pull, left and right, but can easily be handed in the field as needed. Individually boxed with mounting hardware. Standard unit fits 1-3/4 In. thick doors. Available for thicker doors.

The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle.

An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Latch, or 2190/2290 Interconnected Deadbolt/Deadlatch.

• Function: An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Latch, or 2190/2290 Interconnected Deadbolt/Deadlatch.
• Operation: Available in four modes: push to left, push to right, pull to left, and pull to right.
• Specifications:
• Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available.
• Escutcheon: Zinc alloy with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
• Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.
• Options: First dash number specified operation (handing) and compatible latch. Second dash number can be used to specify non-standard units for doors thicker than 1-3/4”. See dash table on catalog page.
• Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug. Shipping weight: 1-1/2 lb.
