Adams Rite 45910100628 Pull to Left Curved Deadlatch Paddle offers a sophisticated solution for enhancing access control in commercial and institutional settings. With its sleek design crafted from extruded aluminum, this paddle is finished in clear anodized aluminum, seamlessly integrating with modern door aesthetics. Measuring 4" x 5-29/32" with a 2-5/16" projection, it is specifically designed for 1-3/4" door thicknesses, making it a versatile choice for a variety of applications. This curved deadlatch paddle operates effortlessly with a simple push or pull, providing an ergonomically-friendly alternative to traditional knobs and levers. Available in four operational modes-Push To Left, Push To Right, Pull To Left, and Pull To Right-it allows for customizable installation to suit specific access needs. Additionally, it boasts a limited 5-year warranty, ensuring reliability and peace of mind. Designed to meet safety and access codes, the Adams Rite 45910100628 is an excellent choice for those seeking durable, high-quality exit device trims. Ideal for both new construction and retrofitting projects, it reflects Adams Rite's commitment to quality and innovation in door hardware solutions.

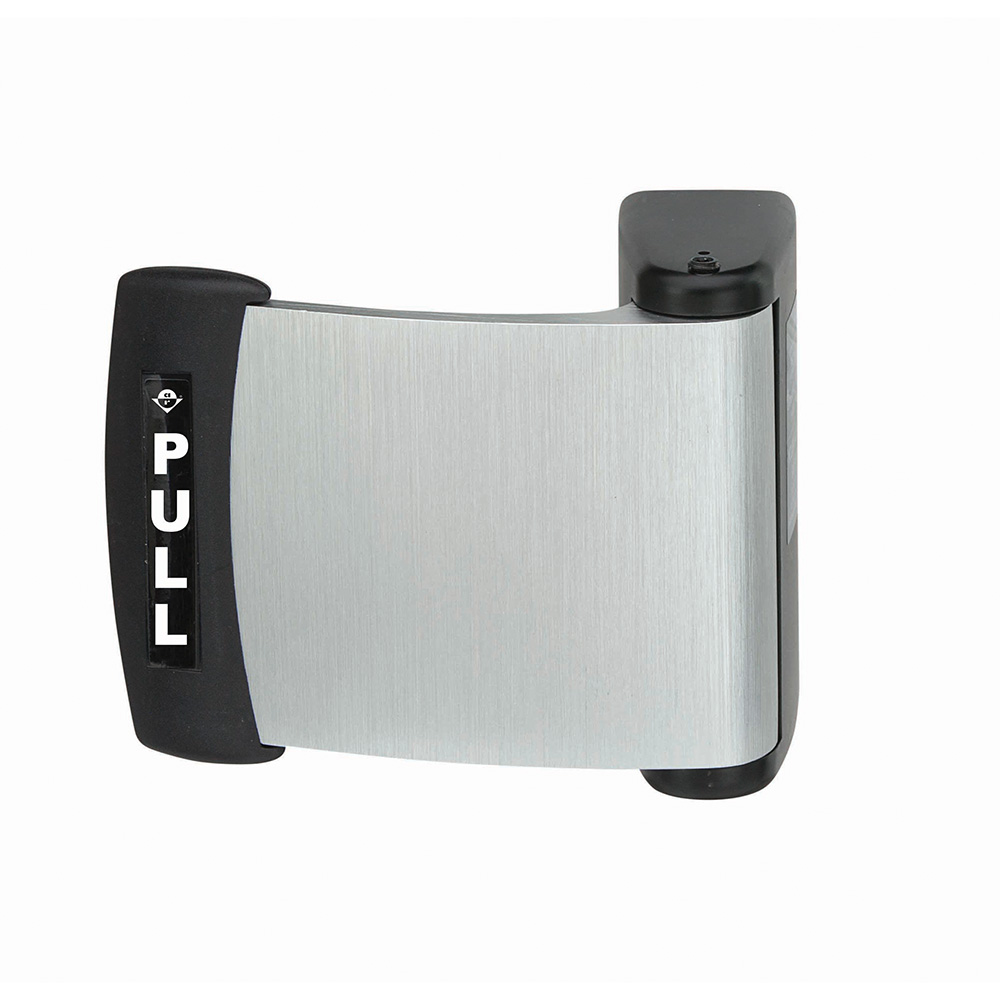

Pull to Left Curved Deadlatch Paddle for 1-3/4" Clear Anodized Aluminum Finish

For over 100 years, Adams Rite has been the Aluminum Hardware Authority, known for their innovative designs and high quality products. When the Maximum Security (MS) Lock� launched in 1955, it quickly became the industry standard and even now remains the dominant locking solution for narrow stile aluminum openings. Today Adams Rite designs, manufactures and markets door and door hardware products to the commercial, industrial and institutional building construction industry and is recognized as one of the leading suppliers in its area of specialization. Our product lines include electromechanical deadlocks and deadlatches, electric strikes and exit devices for exterior and interior doors as well as integrated door assemblies. Our products are designed to complement the clean lines of modern doors, while at the same time meeting safety and access codes.

• Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available. US3 Bright Brass, US26 Bright Chrome, or US26D Satin Chrome plating is also available.
• Escutcheon: Zinc allow with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
• Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.
• Operates with a Simple Push or Pull
• Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
• Available In Four Modes: Push To Left, Push To Right, Pull To Left, And Pull To Right
• Ergonimcally-Friendly Alternative to a Knob or Lever
• Curved Deadlatch Paddle

Features

• Escutcheon: Zinc allow with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
• Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.
• 4591M: Paddle without latch drive mechanism but with switch that can be wired to make or break a low voltage circuit.
• Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available. US3 Bright Brass, US26 Bright Chrome, or US26D Satin Chrome plating is also available.
• Monitor Switch Options:
• 4591MA: Paddle with latch drive mechanism, complete active paddle with switch.
• 91-0914 Monitor Switch Kit: Adds monitor switch function to any 4591 Paddle ("push" version only).
• Standard Package: Individually boxed with dogging hex key and mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug. Shipping weight: 1-1/2 lbs.
• Paddle Dogging ("Push" versions only): Turning hex key in escutcheon holds the paddle down, leaving door free-swinging. Dogging key provided.
• Options: First dash number specifies operation (handing) and compatible latch. Second dash number can be used to specify non-standard units for doors thicker than 1-3/4" Also available: 4591M Paddle/switch to actuate magnetic lock, alarm, etc. (No latch retracting mechanism.) 4591MA Active Paddle with switch and latch retracting mechanism. 4781 Two-Point Deadlatch uses a modified, but matching version of the 4591 Paddle.
