Adams Rite 4591-02-00-335 Aluminum Door Trim

Images may not represent actual product and finish

Adams Rite 4591-02-00-335 Aluminum Door Trim

Your Price: $86.19

Retail Price:$157.000

Your Savings:$70.81(45%)

Curved Deadlatch Paddle, Push to Left, For 1-3/4 In. Thick Door, RHR (or Exterior of LH), Black Anodized

Part Number

: ADR_45910200335

Availability: 37 In Stock

Quantity

Description

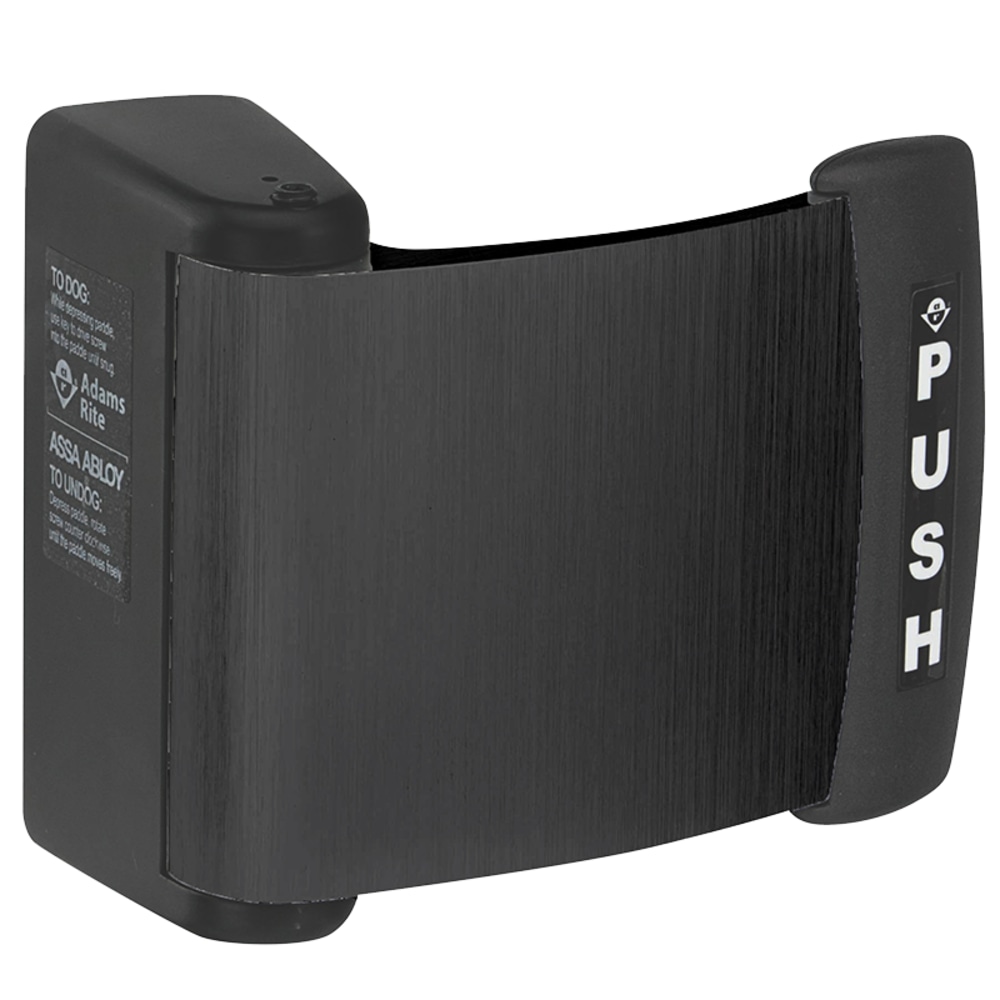

Adams Rite 4591-02-00-335 Aluminum Door Trim

A contemporary designed alternative to knob or lever handles. Adams Rite paddle operator makes opening a latched door as natural as opening an unlatched door. Just push or pull in the direction the door swings. Available for any Adams Rite 4500, 4900, MS+1890 and 2190 series locks. Cam plug is furnished for use with 4500 and 4900 series latches. Cam plug is not required with the MS+1890 and the 2190 locks. Plug is secured in latch body by cylinder set screwand tied to escutcheon with two hardened steel pins. Escutcheon is constructed from zinc alloy and finished with black Ritecoat finish. Escutcheon houses a steel mechanism and is secured to the door stile with special binder posts for a solid installation. Available in four configurations, push, pull, left and right , but can easily be handed in the field as needed. Individually boxed with mounting hardware. Standard unit fits 1-3/4 In. thick doors. Available for thicker doors. Available with a monitor switch that can be used to drop low voltage power to an electric lock or act as a request to exit signal. Standard 4591 paddle includes a dogging device to lock the paddle in an unlocked position with the supplied hex key.

Curved Deadlatch Paddle
Operates with a Simple Push or Pull
Ergonimcally-Friendly Alternative to a Knob or Lever
Available In Four Modes: Push To Left, Push To Right, Pull To Left, And Pull To Right
Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service

Attributes

Ship via: Can Ship UPS

Baa Qualified: Yes

Base Material: Aluminum

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Door Thickness: 1-3/8" - 1-3/4"

Finish: 315/335

Finish Description: Black Anodized Aluminum

Finish Family: Black

For Use With: 4300, 4500 and 4900 Series

Hand: RHR

Handing: Interior RHR or Exterior LH

Installation: Commercial

Lever Knob Design: Curved Paddle

Leverknob Design: Curved Paddle

Limited Warranty: 5 Years

Origin: USA

Pack Height: 2"

Pack Length: 6.38"

Pack Qty: 1

Pack Volume: 57.38 in³

Pack Width: 4.5"

Product Height: 4.15"

Product Length: 5.13"

Product Width: 2.88"

Screws: Machine

Series: 4591 Deadlatch Paddle

Ship Weight: 1.5 lbs.

Subtype: Aluminum Door Trim

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each
