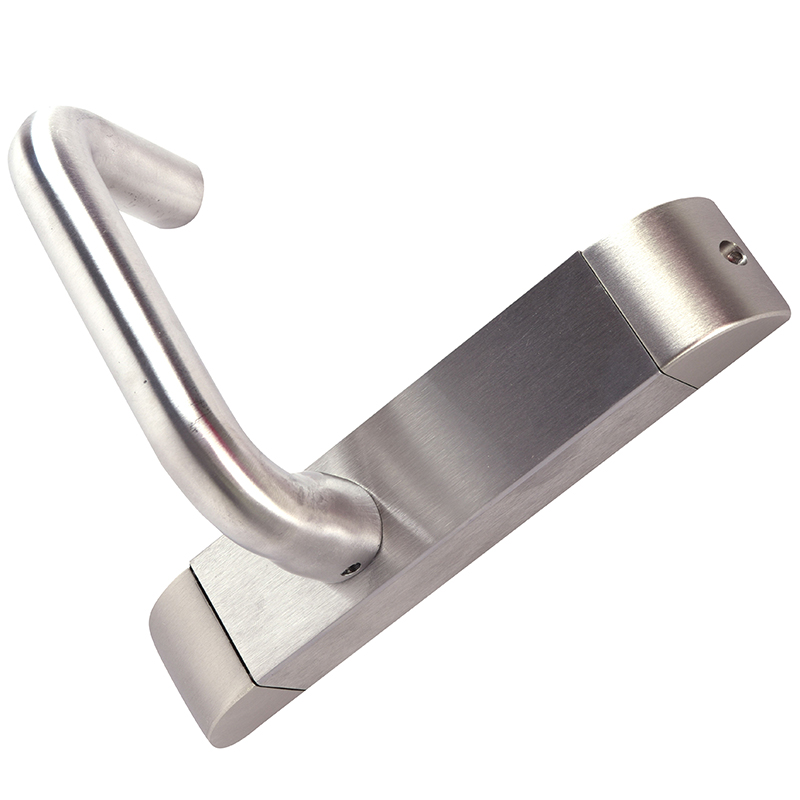

Adams Rite 4600-02-512-32D Heavy-Duty Lever Handle

Adams Rite 4600-02-512-32D Heavy Duty Lever offers a reliable and aesthetically pleasing solution for your passage door needs. Designed as a Grade 1 mortise trim pack, this non-keyed, round lever handle is suitable for doors with a thickness of 1-3/4" to 2". Its satin stainless steel finish lends a modern touch, while the field-reversible handing allows for easy installation on either left-hand or left-hand reverse doors. This heavy-duty lever is compatible with Adams Rite deadlatches and can be retrofitted onto the 2190 Interconnected Deadbolt/Deadlatch, maximizing versatility. The patented adjustable drive mechanism ensures smooth operation with the 4300, 4500, and 4900 Series Deadlatches. The handle's design complements the sleek lines of narrow stile doors, making it an excellent choice for commercial settings. Constructed from solid cast materials, the 4600 lever is built to last, providing both strength and style. The escutcheon is secured with hidden screws and features a durable heat-treated spindle. Its thoughtful design includes options for both standard and designer lever styles, ensuring it fits seamlessly into any architectural theme. With a limited 5-year warranty, the Adams Rite 4600 Heavy Duty Lever is a reliable investment for any professional or homeowner.

Heavy Duty Lever

Grade 1 Passage Mortise Trim Pack Only, Non-Keyed, Round Lever, Escutcheon, 1-3/4" - 2" Door Thickness, Satin Stainless Steel Finish, Left Hand/Left Hand Reverse, Field Reversible

The 4600 Heavy Duty Designer Deadlatch Handles are designed to operate Adams Rite deadlatches and retro-fit onto the 2190 Interconnected Deadbolt/Deadlatch. Offered in a wide range of lever designs and architectural finishes to match the clean lines of a narrow stile door.

Designed with a patented adjustable drive mechanism to operate the 4300, 4500, and 4900 Series Deadlatches.

4600 Deadlatch Handles can be retrofitted in the field onto the 2190/2290 Interconnected Deadbolt/Deadlatch. Shipped handed, but easily reconfigured to accommodate either door swing (MV and MN handle types cannot be re-handed).

• Design: Designed to match the clean lines of a narrow stile door, the 4600 Heavy Duty Designer Series Deadlatch Handles combine aesthetics, function, and strength in a compact yet robust package. Offered in a wide range of lever designs and architectural finishes, the 4600 Series Deadlatch Handle complements the most contemporary door systems.
• Handles: Available in standard and designer series levers to blend with existing architecture or to create a new design statement. Made from solid cast stainless, brass, or bronze, and finished to match any design requirement. Standard series lever styles (-01, -02, -03) are designed to return within 1/2” of the door face, as required by code in some areas.
• Escutcheon: Mounted base is secured by hidden screws and has two large helical compression springs. A 1/4” square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
• Cam Plug (4581): Used when matched with 4300, 4500, or 4900 Series Deadlatches. Secured to the latch body by cylinder setscrew, the cam plug is tied to the handle escutcheon by integral anti-rotation pins. Handing easily reversed with push-and-release cam design.
• Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. Standard handles are for 1-3/4” thick doors. Available by special order for doors up to 3-1/4”. Fixed lever (dummy) kit available – use part number DTK-4600. Through-bolt mounting kit for back-to-back mounting on wood doors, use part number TBK-4600-XX (specify door thickness).
• Standard Package: Packed individually with cam plug (as needed), fasteners, and optional equipment specified.
