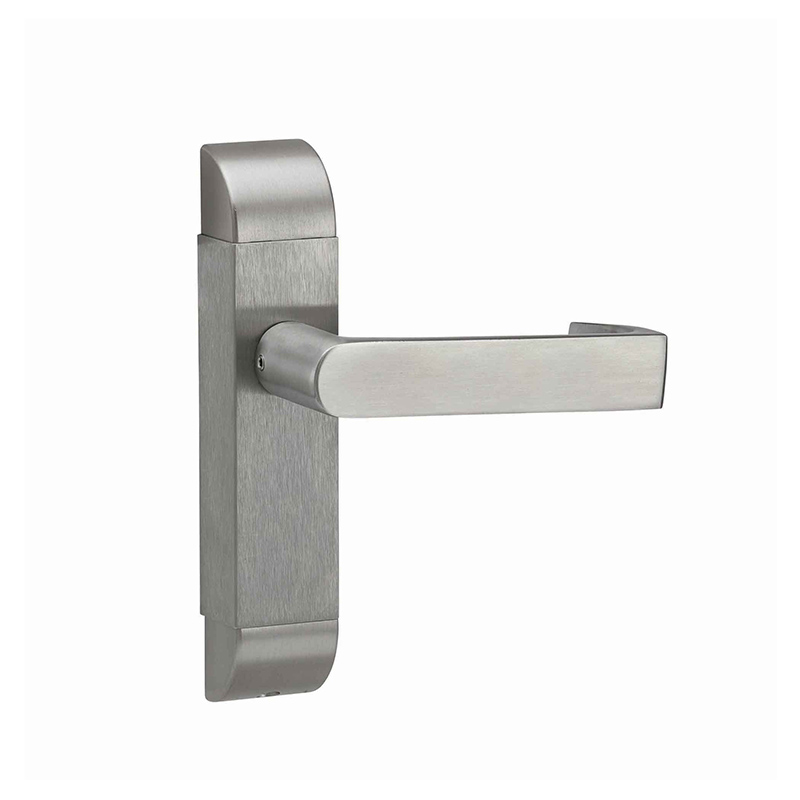

Adams Rite 4600M-03-612-32D Heavy Duty Lever with Rex Switch

Adams Rite 4600M-03-612-32D Heavy Duty Lever w/Rex Switch offers a robust solution for commercial door applications. This Grade 1 passage mortise trim is designed for doors with a thickness of 1-3/4" to 2", presenting a sleek satin stainless steel finish that complements modern architectural aesthetics. The non-keyed square lever features a request-to-exit function, enhancing convenience and safety. Engineered to operate seamlessly with Adams Rite deadlatches, this lever handle is compatible with the 4300, 4500, and 4900 Series models, ensuring versatility across various installations. The patented adjustable drive mechanism allows for easy retrofitting onto the 2190 Interconnected Deadbolt/Deadlatch, making it a flexible choice for existing door setups. The 4600 series is available in multiple lever designs and can be easily reconfigured for right-hand or right-hand reverse handing, catering to diverse installation needs. With a mounting escutcheon secured by hidden screws and durable helical compression springs, this handle is not only stylish but built to withstand frequent use. Backed by a 5-year limited warranty, the Adams Rite 4600M is the perfect blend of functionality and design, making it an essential addition to any commercial space.

Heavy Duty Lever w/Rex Switch

Grade 1 Passage Mortise Trim Pack Only, Non-Keyed, Square Lever, Escutcheon, Request to Exit, 1-3/4" - 2" Door Thickness, Satin Stainless Steel Finish, Right Hand/Right Hand Reverse, Field Reversible

The 4600 Heavy Duty Designer Deadlatch Handles are designed to operate Adams Rite deadlatches and retro-fit onto the 2190 Interconnected Deadbolt/Deadlatch. Offered in a wide range of lever designs and architectural finishes to match the clean lines of a narrow stile door.

Designed with a patented adjustable drive mechanism to operate the 4300, 4500, and 4900 Series Deadlatches.

4600 Deadlatch Handles can be retrofitted in the field onto the 2190/2290 Interconnected Deadbolt/Deadlatch. Shipped handed, but easily reconfigured to accommodate either door swing (MV and MN handle types cannot be re-handed).

• Design: Designed to match the clean lines of a narrow stile door, the 4600 Heavy Duty Designer Series Deadlatch Handles combine aesthetics, function, and strength in a compact yet robust package. Offered in a wide range of lever designs and architectural finishes, the 4600 Series Deadlatch Handle complements the most contemporary door systems.
• Handles: Available in standard and designer series levers to blend with existing architecture or to create a new design statement. Made from solid cast stainless, brass, or bronze, and finished to match any design requirement. Standard series lever styles (-01, -02, -03) are designed to return within 1/2” of the door face, as required by code in some areas.
• Escutcheon: Mounted base is secured by hidden screws and has two large helical compression springs. A 1/4” square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
• Cam Plug (4581): Used when matched with 4300, 4500, or 4900 Series Deadlatches. Secured to the latch body by cylinder setscrew, the cam plug is tied to the handle escutcheon by integral anti-rotation pins. Handing easily reversed with push-and-release cam design.
• Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. Standard handles are for 1-3/4” thick doors. Available by special order for doors up to 3-1/4”. Fixed lever (dummy) kit available – use part number DTK-4600. Through-bolt mounting kit for back-to-back mounting on wood doors, use part number TBK-4600-XX (specify door thickness).
• Standard Package: Packed individually with cam plug (as needed), fasteners, and optional equipment specified.
