Adams Rite 4781-021-313 Two-Point Deadlatch with Paddle

Adams Rite 4781-021-313 Two Point DeadLatch W/Paddle is engineered for optimal security and convenience in paired outswinging narrow stile doors, while also being suitable for single doors. The innovative paddle design allows for easy operation, and the paddle dogging feature enables the door to remain free-swinging when the hex screw is turned down. This deadlatch incorporates a top bolt that mimics the functionality of automotive and aircraft door latches, wrapping securely around the strike post to ensure a robust deadlock. The clever header strike design accommodates door misalignments, sagging, or bumpers, enhancing resistance to forced entry. Featuring a stainless hexagonal steel bottom bolt that requires just a ½" diameter hole in the threshold for installation, this lock is practical and straightforward to set up. Designed for doors up to 66" above the paddle height, or 110" with the optional 8655 Tall Door Kit, the Adams Rite 4781 offers versatility for various door sizes. Choose from options such as exit-only functionality or key access from the outside with the 8650 Cylinder Escutcheon. The product comes individually boxed with mounting screws and installation instructions, ensuring a seamless installation process.

Two Point DeadLatch W/Paddle

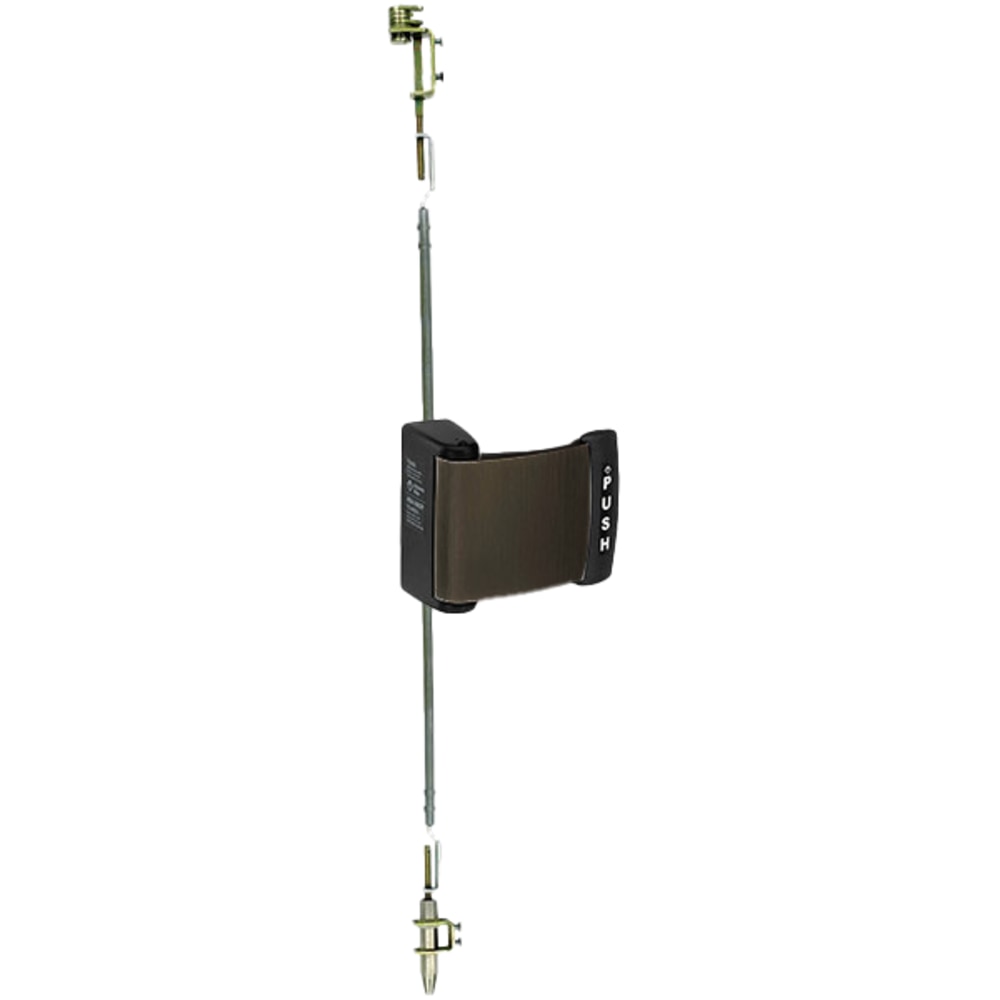

Two-Point Deadlatch with Paddle, Push to Left, Dark Bronze

Designed for paired outswinging narrow stile doors, but is also suitable for single doors.

• Paddle Dogging: Turning hex screw in paddle escutcheon holds paddle down, leaving door free-swinging.
• Top Bolt: Similar to door latches on some automobiles and aircraft, the U-shaped bolt wraps around the strike post to deadlock position, which also deadlocks the bottom bolt through a gear train at the center of the rod assembly.
• Header Strike: A flanged post installed on the header has generous location adjustment to allow for door misalignment, sag, bumpers, etc. Designed to prevent forced entry by bowing the door.
• Bottom Bolt: Stainless hexagonal steel bolt requires only a 1/2" diameter hole in threshold for a strike.
• Door Size: Standard unit will fit doors up to 66” above the paddle height (110” door if paddle is at max 44” height). For taller doors, order 8655 Tall Door Kit, which allows up to 97” above paddle.
• Options: Can be exit only or allow key access from outside with use of 8650 Cylinder Escutcheon. Entry trim available with Adams Rite exit devices can also be specified, in the version used for CVR devices.
• Standard Package: Individually boxed with mounting screws and installation instructions. Shipping weight: 3 lbs.
