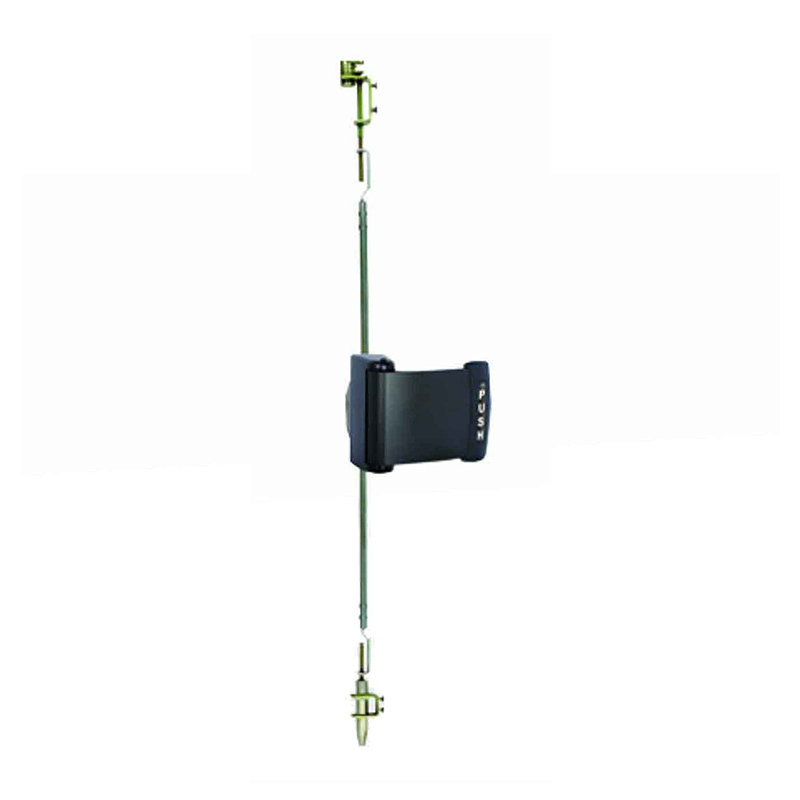

Adams Rite 4781-041-335 Two-Point Deadlatch with Paddle

Adams Rite 4781-041-335 Two Point DeadLatch W/Paddle offers a robust locking solution ideal for paired outswinging narrow stile doors, while also accommodating single doors. This innovative design features a paddle mechanism that allows for easy operation, and with paddle dogging, simply turning the hex screw in the paddle escutcheon holds the paddle down, creating a free-swinging door. The deadlatch incorporates a top bolt that utilizes a U-shaped design, effectively wrapping around the strike post for enhanced security. This mechanism also ensures that the bottom bolt is deadlocked through a centralized gear train. A generously adjustable header strike allows for seamless installation, compensating for door misalignment and sagging, thereby preventing forced entry. Crafted from durable materials, the stainless hexagonal bottom bolt requires just a ½" diameter hole for installation, making it a practical choice for various applications. This standard unit accommodates doors up to 66" high, with an option for taller installations using the 8655 Tall Door Kit. The Adams Rite 4781-041-335 comes individually boxed with mounting screws and installation instructions, ensuring a straightforward setup. With its combination of security, flexibility, and ease of use, this deadlatch is an excellent choice for commercial settings.

Two Point DeadLatch W/Paddle

Two-Point Deadlatch with Paddle, Push to Right, Black

Designed for paired outswinging narrow stile doors, but is also suitable for single doors.

• Paddle Dogging: Turning hex screw in paddle escutcheon holds paddle down, leaving door free-swinging.
• Top Bolt: Similar to door latches on some automobiles and aircraft, the U-shaped bolt wraps around the strike post to deadlock position, which also deadlocks the bottom bolt through a gear train at the center of the rod assembly.
• Header Strike: A flanged post installed on the header has generous location adjustment to allow for door misalignment, sag, bumpers, etc. Designed to prevent forced entry by bowing the door.
• Bottom Bolt: Stainless hexagonal steel bolt requires only a 1/2" diameter hole in threshold for a strike.
• Door Size: Standard unit will fit doors up to 66” above the paddle height (110” door if paddle is at max 44” height). For taller doors, order 8655 Tall Door Kit, which allows up to 97” above paddle.
• Options: Can be exit only or allow key access from outside with use of 8650 Cylinder Escutcheon. Entry trim available with Adams Rite exit devices can also be specified, in the version used for CVR devices.
• Standard Package: Individually boxed with mounting screws and installation instructions. Shipping weight: 3 lbs.

Resources

• 4781 Catalog Page
• 4781 Two Point Deadlatch Installation Instructions
• 4781 Two Point Deadlatch with Paddle Cut Sheet
• What is Backset and How Do I Measure it?
