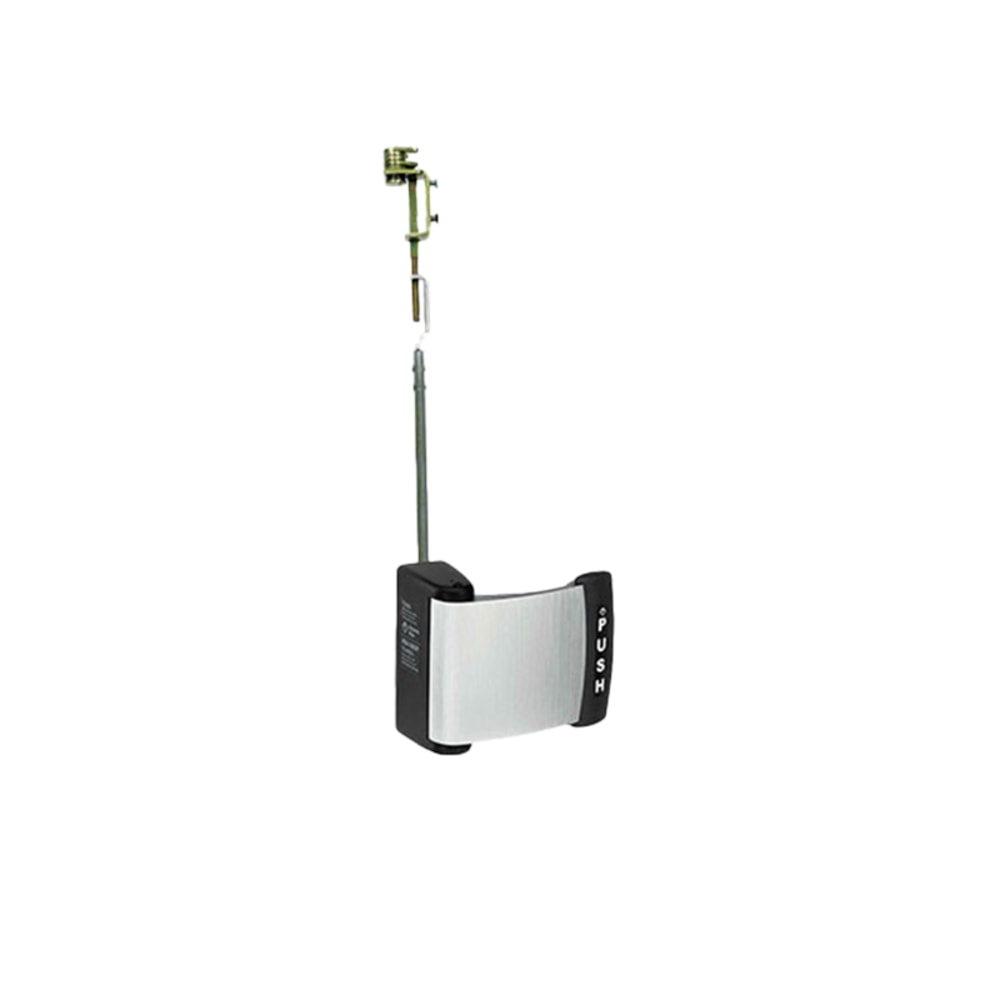

Adams Rite 4781T-021-628 Two-Point Deadlatch with Paddle

Adams Rite 4781T-021-628 Two Point DeadLatch W/Paddle offers a robust locking solution designed specifically for paired outswinging narrow stile doors, with versatility for single doors as well. This deadlatch features a unique paddle mechanism, allowing for paddle dogging-simply turn the hex screw in the paddle escutcheon to hold the paddle down, enabling free-swinging access. The top bolt is engineered for enhanced security, utilizing a U-shaped design that wraps around the strike post to deadlock the door, while simultaneously locking the bottom bolt through a gear train within the rod assembly. The header strike includes generous location adjustments to accommodate door misalignments, ensuring reliable performance even under stress. Constructed with a stainless hexagonal steel bolt, the bottom bolt only requires a ½" diameter hole in the threshold for installation. This standard unit is suitable for doors up to 66" above the paddle height, with options available for taller installations using the 8655 Tall Door Kit. The Adams Rite 4781T-021-628 comes packaged with mounting screws and installation instructions, making setup straightforward. With a sleek aluminum finish (628/US28), this deadlatch is an ideal choice for commercial applications, ensuring security and functionality in one elegant design.

Two Point DeadLatch W/Paddle

Two-Point Deadlatch with Paddle, Top Rod Only, Push to Left, Aluminum

Designed for paired outswinging narrow stile doors, but is also suitable for single doors.

• Paddle Dogging: Turning hex screw in paddle escutcheon holds paddle down, leaving door free-swinging.
• Top Bolt: Similar to door latches on some automobiles and aircraft, the U-shaped bolt wraps around the strike post to deadlock position, which also deadlocks the bottom bolt through a gear train at the center of the rod assembly.
• Header Strike: A flanged post installed on the header has generous location adjustment to allow for door misalignment, sag, bumpers, etc. Designed to prevent forced entry by bowing the door.
• Bottom Bolt: Stainless hexagonal steel bolt requires only a 1/2" diameter hole in threshold for a strike.
• Door Size: Standard unit will fit doors up to 66” above the paddle height (110” door if paddle is at max 44” height). For taller doors, order 8655 Tall Door Kit, which allows up to 97” above paddle.
• Options: Can be exit only or allow key access from outside with use of 8650 Cylinder Escutcheon. Entry trim available with Adams Rite exit devices can also be specified, in the version used for CVR devices.
• Standard Package: Individually boxed with mounting screws and installation instructions. Shipping weight: 3 lbs.
