Images may not represent actual product and finish

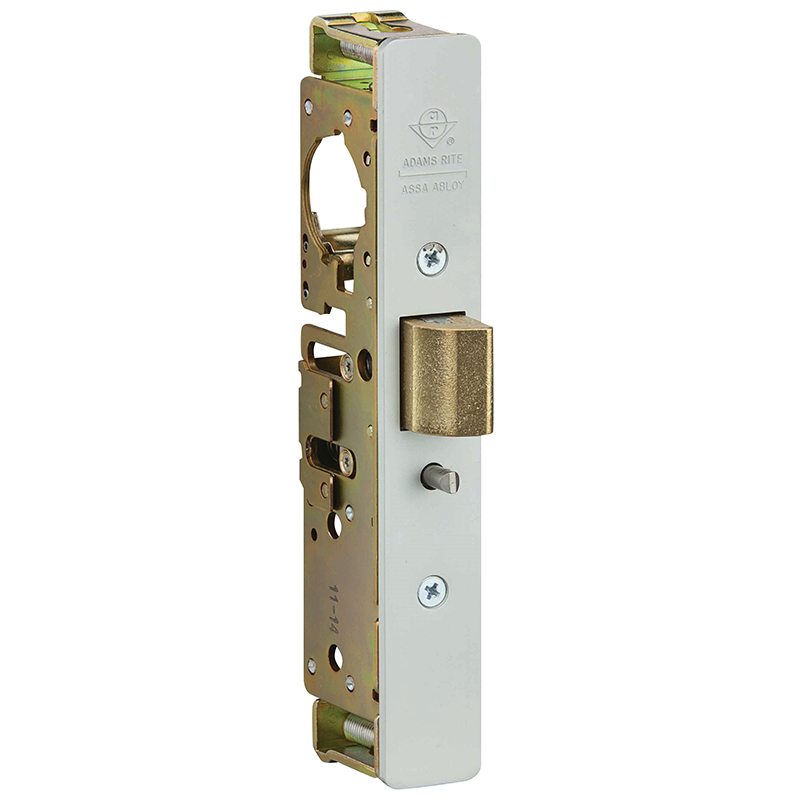

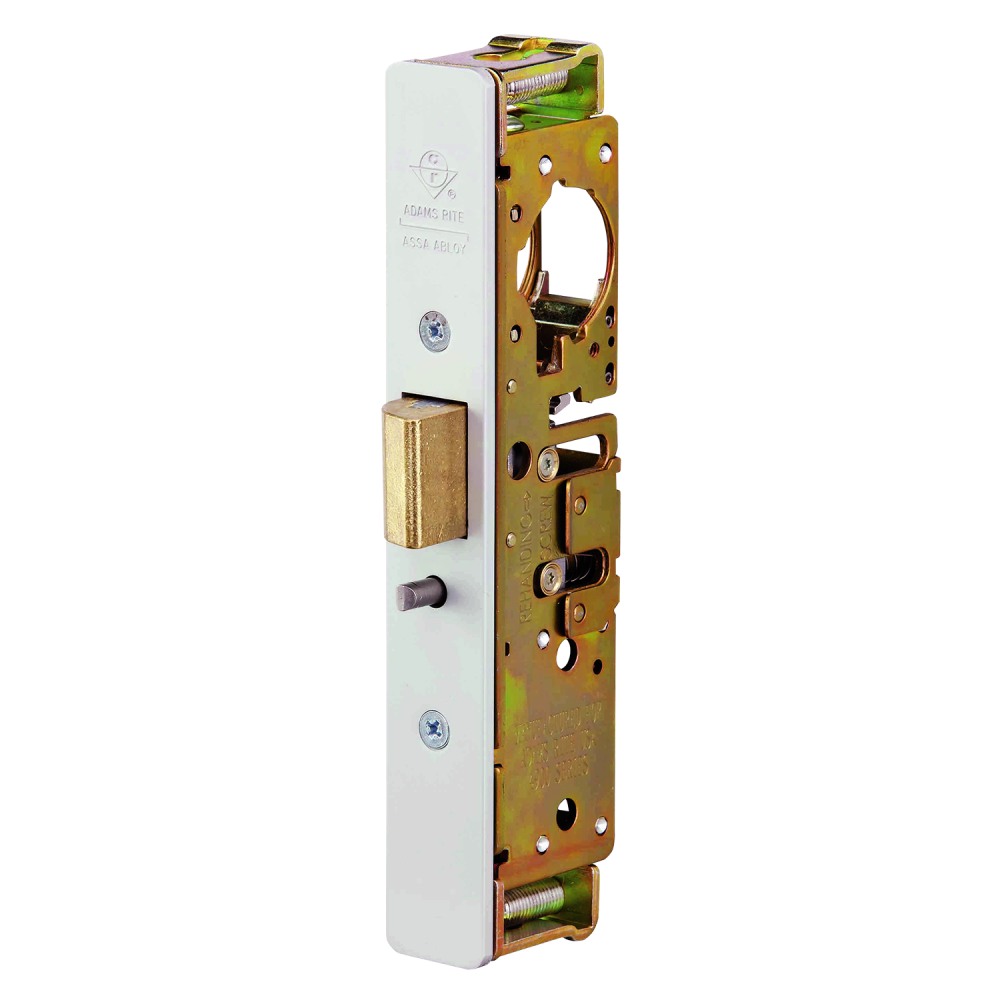

Adams Rite 4900-46-201-628 Mortise Lock

Your Price: $90.56

Retail Price:$161.000

Your Savings:$70.44(44%)

Heavy Duty Deadlatch, Flat Faceplate, 1-1/2 In. Backset, 2-5/8 In. Flat Mortised Strike, RH or LHR, Satin Aluminum

Part Number : ADR_490046201628

Availability: 61 In Stock

Quantity

Description

Adams Rite 4900-46-201-628 Mortise Lock

Adams Rite 490046201628 Heavy Duty Deadlatch 1-1/2" Right Hand, 2-5/8" Flat Mortised Strike Clear Anodized Aluminum Finish

Bolt Holdback:
While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
Cylinder Backset:
31/32", 1-1/8", or 1-1/2"
Case:
Measures 7/8" x 5-13/16" x depth. Depth varies by backset. Steel with corrosion-resistant plating. Screw-fastened tube spacer brackets allow for cleaner removal when tab mounting.
Latchbolt:
5/8" x 1" x 5/8" throw. Solid brass. Handing is easily reversible using only a screwdriver.
Auxiliary Latchpin:
Stainless steel. Deadlocks latch bolt to prevent "loiding" or case-knife entry.

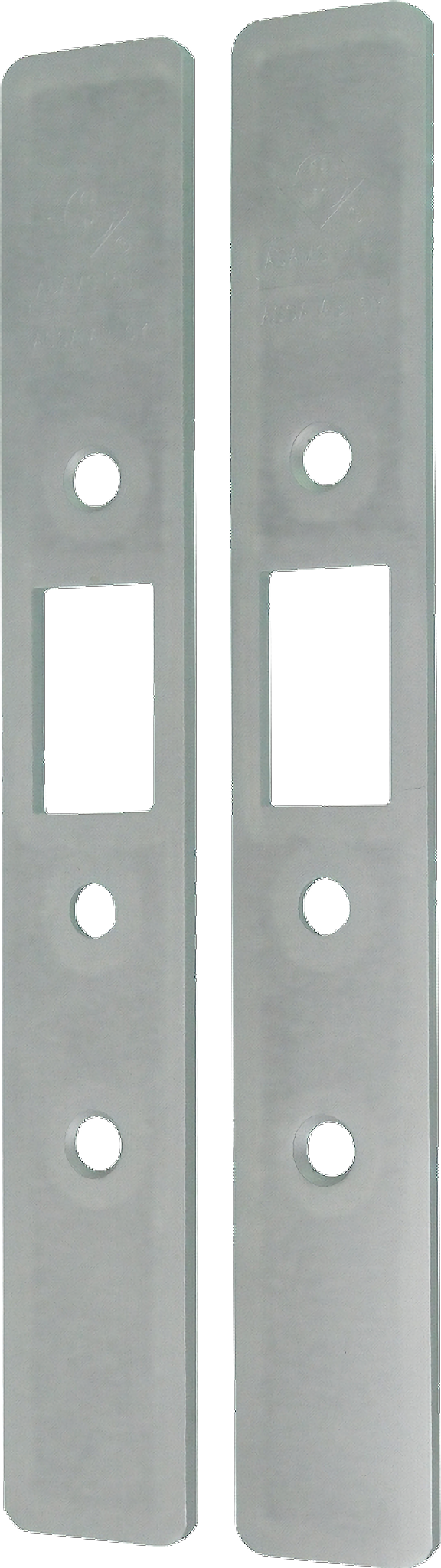

Faceplates:
Measures 1" x 6-7/8". Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.
Strikes:
Standard strike furnished is 4902 for flat jamb where door closes flush or nearly flush. Specify 4901 for retrofit installations. Also available: radius strike for opposite stile in paired doors and long lip strikes for centerhung doors.
Cylinder Cam:
4900 Heavy Duty Deadlatches are operable by any standard 1-5/32" diameter mortise cylinder with MS® cam
Standard Package:
Individually boxed with flat and radius faceplates, strike, and machine screws for mounting. Order cylinders, paddles, handles, or lever operators separately. Shipping weight: 1-1/4 lbs.
Heavy Duty Deadlatch
Provides Flexible Traffic Control
Easy Installation
1-3/4" Minimum Door Thickness Required
Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service

Attributes

Manufacturer surcharge: $ 0.0

Alternate Codes: 100867, 401851, 4711-46628, 471146628, 4900-46-201-628, 4900-46628, 490046201628, 490046628, ADR4510-46-201-628, ADR4511-46-101628, ADR4900-46628

Baa Qualified: Yes

Backset: 1-1/2"

Base Material: Aluminum

Bolt Projection: 5/8"

Bolt Protection: 5/8"

Category: Glass Aluminum Hardware, Locking Hardware, Lock Sets

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Cylinder Included: Adams Rite

Cylinder Type: Standard Mortise Cylinder

Door Application: Glass Aluminum Hardware

Door Thickness: 1-3/4" - 2"

Dust Box: Plastic

Faceplate Size: 6-7/8" x 1"

Faceplate Style: Standard

Finish: Clear Anodized Aluminum

Finish Code: US28

Finish Color: Satin Chrome

Finish Description: Satin Aluminum Clear Anodized

Function: Narrow Stile Latch Lock

Grade: Grade 1

Hand: Field Reversible

Handing: Left Handed Reverse, Right Handed

Installation: Commercial

Jamb Type: Standard Jamb With Door Stop

Latch Backset Dim: 1-1/2"

Latch Bolt Throw: 5/8"

Latch Bolt Type: Deadlatch

Latch Type: Dead Latch (Guarded)

Limited Warranty: 5 Years

Lock Category: Mortise Lock

Lock Face Size: 6-7/8" x 1"

Origin: USA

Pack Height: 2.13"

Pack Length: 8.88"

Pack Qty: 1

Pack Volume: 61.29 in³

Pack Width: 3.25"

Pbs Options: 103,937,301,037,198,000,000,000

Product Height: 2.14"

Product Length: 6.87"

Product Width: 1"

Screws: Machine

Series: 4900

Ship Weight: 1.25 lbs.

Std Latch Backset Dim: 1-1/2"

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 2-5/8"

Std Strike Number: 4902-01

Std Strike Type: Mortise

Std Strike Width: 1-9/16"

Strike: 2-5/8" Flat Mortised Strike

Strike Height: 2-5/8"

Strike Included: Yes

Strike Number: 4902-01

Strike Size: 4-1/8" x 1-1/8"

Strike Type: Mortise

Strike Width: 1-9/16"

Subtype: Latches

Type: Door Hardware Parts

Unit of Measure: Each
