Images may not represent actual product and finish

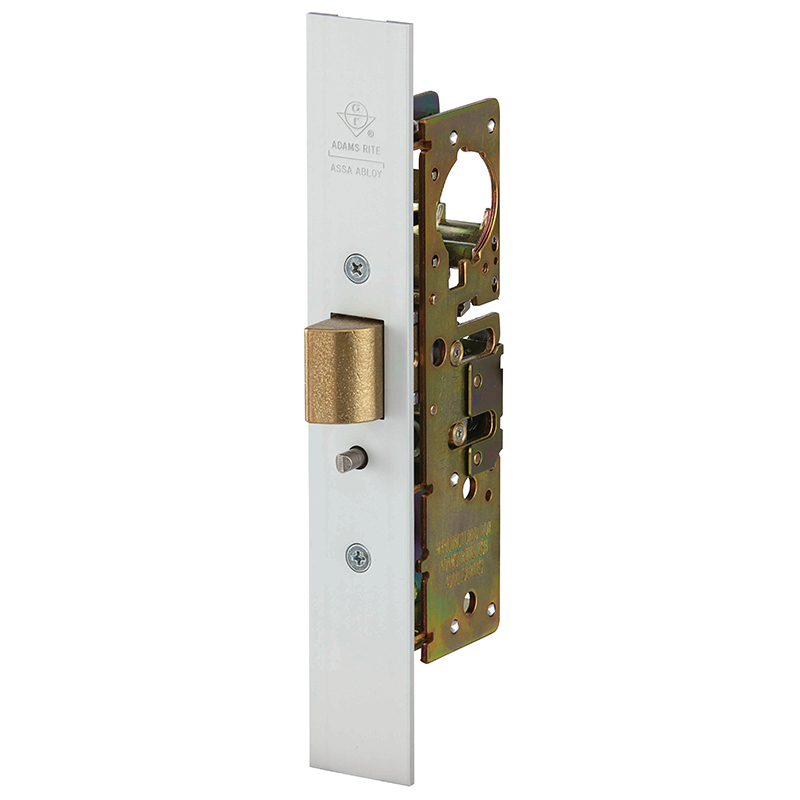

Adams Rite 4920AN-55-602-628 Mortise Lock

Your Price: $113.63

Retail Price:$202.000

Your Savings:$88.37(44%)

Heavy Duty ANSI Size Deadlatch, Flat Faceplate, 2-3/4 In. Backset, 4-7/8 In. Flat Mortised Strike, LH or RHR, Satin Aluminum

Part Number : ADR_4920AN55602628

Availability: 9 In Stock

Quantity

Description

Adams Rite 4920AN-55-602-628 Mortise Lock

For hollow metal or wood doors prepared for hardware according to the specifications of the American National Standards Institute (ANSI), 4920AN Heavy Duty Deadlatches provide precise traffic control. A key-controlled bolt hold-back feature allows a door to free-swing part of the day and exit-only when the bolt is free to latch. This allows a "locked" entrance to be used as an exit by customers or visitors already in the building. Interchangeable, without door modification, with any MS1850SN Deadlock of same faceplate shape and backset. Replaces 4520 and 4720 ANSI Deadlatches. Steel case with corrosion-resistant plating. Solid brass latch bolt. Handing is easily reversible using only a screwdriver. Stainless steel auxiliary latchpin deadlocks latchbolt to prevent "loiding"or case-knife entry. Armored flat faceplate can also be adjusted in the field for right or left beveled edge doors. 4506-02 Strike furnished to ANSI preparation specifications for flat jamb. 4920AN Heavy Duty Deadlatches are operable by any standard 1-5/32 In. diameter mortise cylinder with MS cam. Individually boxed with faceplate, strike, and machine screws for mounting. Order cylinders, paddles, handles or lever operators separately.

Heavy Duty Deadlatch
Provides Flexible Traffic Control
Easy Installation
For Wood Or Hollow Metal Doors
Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service

Attributes

Manufacturer surcharge: $ 0.0

Baa Qualified: Yes

Backset: 1-1/2" Backset

Base Material: Aluminum

Bolt Projection: 5/8"

Bolt Protection: 5/8"

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Cylinder Type: Less Cylinder

Door Thickness: 1-3/4" - 2"

Finish: 628/US28

Finish Description: Satin Aluminum Clear Anodized

Function: All Purpose

Hand: Field Reversible

Handing: Field Reversible

Installation: Commercial

Latch Backset Dim: 2-3/4"

Latch Type: Guarded Latch

Limited Warranty: 5 Years

Lock Face Size: 8" x 1-1/4"

Origin: USA

Pack Height: 2.13"

Pack Length: 8.88"

Pack Qty: 1

Pack Volume: 61.29 in³

Pack Width: 3.25"

Pbs Options: 10394044,157406768

Product Height: 3.39"

Product Length: 8"

Product Width: 1.25"

Screws: Machine

Series: 4920AN Heavy Duty Deadlatch

Ship Weight: 1.25 lbs.

Std Latch Backset Dim: 2-3/4"

Std Latch Type: Guarded Latch

Std Strike Height: 4-7/8"

Std Strike Number: 4506

Std Strike Type: ASA

Std Strike Width: 1-1/4"

Strike: 4506 Strike

Strike Height: 4-7/8"

Strike Number: 4506

Strike Type: ASA

Strike Width: 1-1/4"

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each
