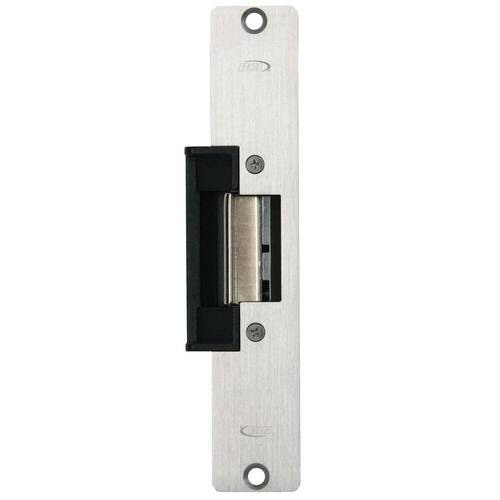

Adams Rite 7100-315-628-00 Electric Strike 12VDC offers a reliable solution for secure door access with its Grade 1 rating and fail-safe operation. Designed primarily for aluminum applications, this electric strike features a flat faceplate measuring 4-7/8" x 1-1/4" with rounded corners, finished in an elegant matte silver (628/US28). This electric strike operates on 12 VDC, providing remote electrical control for doors equipped with Adams Rite 4500, 4700 (discontinued), or 4900 deadlatches and cylindrical locksets that have a latchbolt projection of 1/2" to 5/8". When electrically actuated, it unlocks the keeper, allowing the door to be opened effortlessly without manual operation of the latch. With a robust holding force of 1500 lbs static and 70 ft lbs dynamic, the 7100 ensures high security. It is also field convertible from fail-safe to fail-secure mode for added versatility, though care should be taken not to use the AC intermittent solenoid continuously. Installation is straightforward, making it suitable for commercial environments. Furthermore, the unit is UL 1034 and UL 294 listed, ensuring compliance with industry safety standards. Backed by a 5-year limited warranty, the Adams Rite 7100 Electric Strike is a trusted choice for both security and convenience.
Electric Strike 12VDC
Grade 1 Electric Strike, Fail Safe, 12 VDC, for Aluminum Applications, 4-7/8" x 1-1/4" Flat Faceplate with Round Corners, Aluminum Finish
Remote Electrical Control of Any Door Equipped with an Adams Rite 4500, 4700 (Discontinued), or 4900 Deadlatch or Cylindrical Lockset with 1/2" [12.7 mm] To 5/8"[15.9 mm] Latchbolt Projection. Electrical Actuation Unlocks the Keeper, Releasing the Latchbolt so the Door May Be Opened Without Operating the Latch Itself.
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection.
For use in aluminum, hollow metal, or wood applications — remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
Ship via: Can Ship UPS
Amp Draw: .33 Amps
Ansi: ANSI/BHMA A156.23
Application: Aluminum Applications
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Round Corners
Faceplate Size: 4-7/8" x 1-1/4"
Finish: 628/US28
Finish Family: Matte Silver
Function: Fail Safe
Grade: Grade 1
Holding Force: 1500 lbs Static, 70 ft lbs Dynamic
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 12 VDC
Pack Qty: 1
Pbs Options: 103,963,901,039,639,000,000,000
Series: 7100 Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 1034 and UL 294 Listed
Unit of Measure: Each
