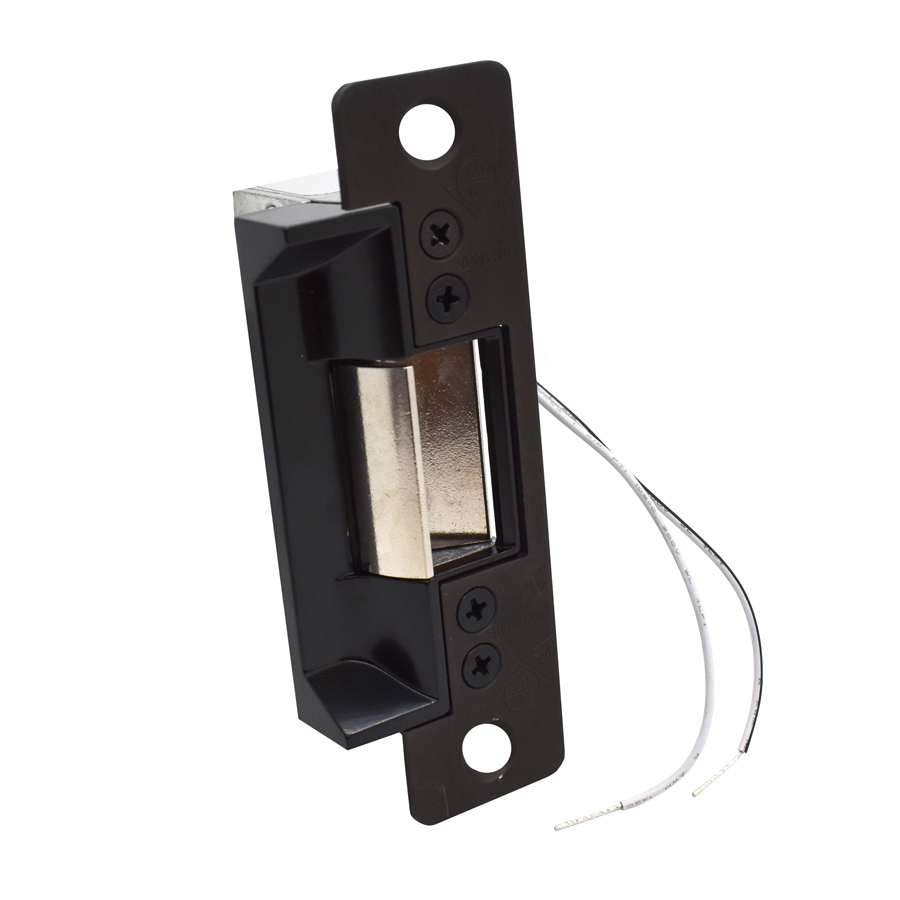

Adams Rite 7100-510-313 24VDC Fail Secure Electric Strike for Deadlatches, Radius Corner, Dark Bronze

Adams Rite Manufacturing 7100-510-313 Electric Strike offers a robust solution for securing aluminum frames with a fail-secure (FSE) design, providing peace of mind without compromising accessibility. Operating on 24VDC, this electric strike is engineered to work seamlessly with Adams Rite deadlatches or cylindrical locksets, featuring a latchbolt projection range of ½" to ⅝". The compact design fits into aluminum jambs as shallow as 1-5/8", making installation straightforward and efficient. The 1-1/4" x 4-7/8" faceplate boasts a radius corner design, ensuring compatibility with narrow stile glass doors. The strike jaw is constructed from durable stainless steel, capable of accepting bolts from any Adams Rite 4500, 4700, or 4900 series deadlatches. Its field-convertible feature allows for easy switching between fail-safe and fail-secure modes, accommodating varying security needs. With an electrical actuation that unlocks the strike jaw, users can operate the door without manually engaging the latch. This unit is available in a striking anodized dark bronze finish, enhancing aesthetic appeal while ensuring longevity. The Adams Rite 7100-510-313 Electric Strike is ideal for professionals looking for reliable, efficient access control solutions.

Electric Strike 24VDC Fail Secure (FSE), Works with Deadlatches on Aluminum Frames, (Field Reversible to FS), Radius Corner( RC), 1-1/4in x 4-7/8in Faceplate, 695/SP313 Anodized Dark Bronze

7100, 7101 Electric Strikes with 4-7/8" Faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection. For use in aluminum jambs and stiles. Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2" to 5/8" latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8". Fits existing prep for discontinued Adams Rite 7000, 7500, 7800 Electric Strikes.

Specifications:

• Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
• Case: Approximately 1" x 3-3/8" x 1-5/8" deep.
• Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4" thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.
• Strike Opening: 5/8" x 1-7/16" x 1/2" deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4" x 4-7/8". 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.
• Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units "buzz" on operation.

Series Options:

• Available with two monitoring signal switches which sense whether latch bolt is in strike and whether strike jaw is blocked. Choice of mounting in AC and DC for intermittent or continuous duty. 7100 Electric Strike (flat faceplate) available with extended strike lip. Specify assembled for either fail-secure (locked when unpowered) or fail-safe (locked when powered) operation, but can be field converted to the other mode.
• 4603 Rectifier: converts AC to DC, installs in low voltage line between transformer and strike. Rated 2 amps (200 PIV)
• 4605 Transformer: converts 120VAC to 12/24 VAC. Rated 40 Volt-amp output assures plenty of power for strike release. Patented mounting bracket fits in knockout hole of standard junction boxes.
• 4606 Transformer: Plug-in version for standard wall outlet.

Finishes:

• 313 - Dark Bronze Anodized (Similar to 613 - 10B - US10B)
• 335 - Black Anodized
• 626 - Satin Chrome (US26D - 26D)
• 628 - Clear Anodized (US28)

Features

• Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4" thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.
• Strike Opening: 5/8" x 1-7/16" x 1/2" deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4" x 4-7/8". 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.
• Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units "buzz" on operation.
• Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
• Case: Approximately 1" x 3-3/8" x 1-5/8" deep.
