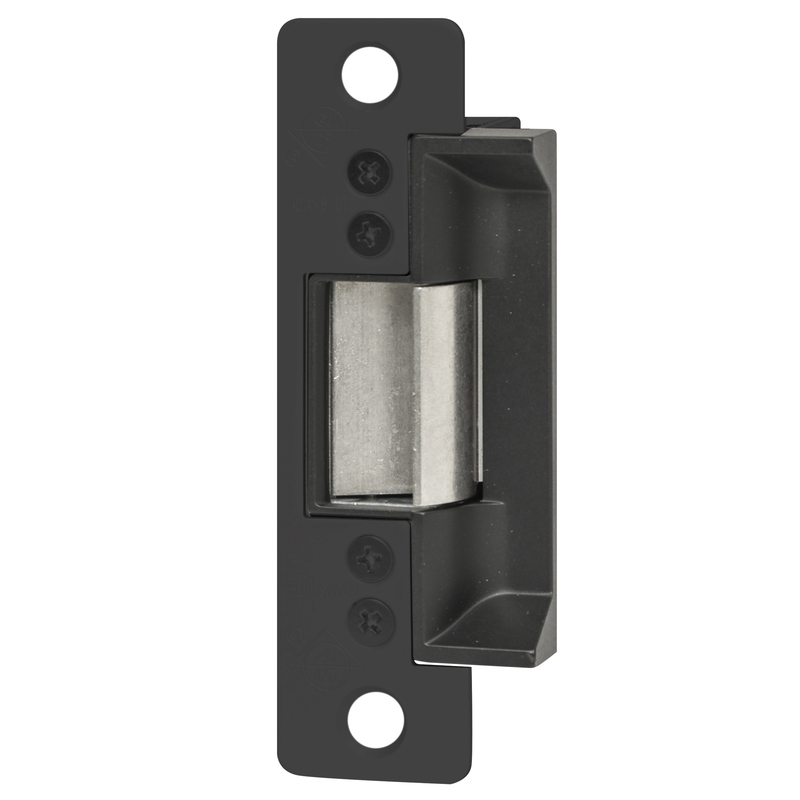

Adams Rite 7100-510-335-00 Electric Strike 24VDC is a Grade 1 electric strike designed for reliable security in aluminum applications. This fail secure model operates at 24 VDC and features a flat faceplate measuring 4-7/8" x 1-1/4" with round corners, finished in a sleek black anodized coating. Ideal for remote electrical control, the 7100 is compatible with Adams Rite 4500, 4700 (discontinued), or 4900 deadlatches and cylindrical locksets with a latchbolt projection ranging from 1/2" to 5/8". The electrical actuation mechanism unlocks the keeper, allowing the door to be opened without directly operating the latch, enhancing convenience and security. Field convertible between fail-safe and fail-secure modes, this electric strike provides flexibility for varying security needs. It boasts a robust construction with a holding force of 1500 lbs static and 70 ft lbs dynamic, ensuring durability and reliability. The installation process is straightforward, making it suitable for commercial environments. This unit is UL 1034 and UL 294 listed, ensuring compliance with industry standards, and comes with a five-year limited warranty, giving you peace of mind in your investment. Make the Adams Rite 7100 your go-to choice for effective access control and security.
Electric Strike 24VDC
Grade 1 Electric Strike, Fail Secure, 24 VDC, for Aluminum Applications, 4-7/8" x 1-1/4" Flat Faceplate with Round Corners, Black Anodized Finish
Remote Electrical Control of Any Door Equipped with an Adams Rite 4500, 4700 (Discontinued), or 4900 Deadlatch or Cylindrical Lockset with 1/2" [12.7 mm] To 5/8"[15.9 mm] Latchbolt Projection. Electrical Actuation Unlocks the Keeper, Releasing the Latchbolt so the Door May Be Opened Without Operating the Latch Itself.
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection.
For use in aluminum, hollow metal, or wood applications — remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
Manufacturer surcharge: $ 0.0
Amp Draw: .17 Amps
Ansi: ANSI/BHMA A156.23
Application: Aluminum Applications
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Round Corners
Faceplate Size: 4-7/8" x 1-1/4"
Finish: 315/335
Finish Family: Black
Function: Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs Static, 70 ft lbs Dynamic
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 24 VDC
Pack Qty: 1
Pbs Options: 103,963,941,039,639,000,000,000
Series: 7100 Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 1034 and UL 294 Listed
Unit of Measure: Each
Upc: 8.89E+11
