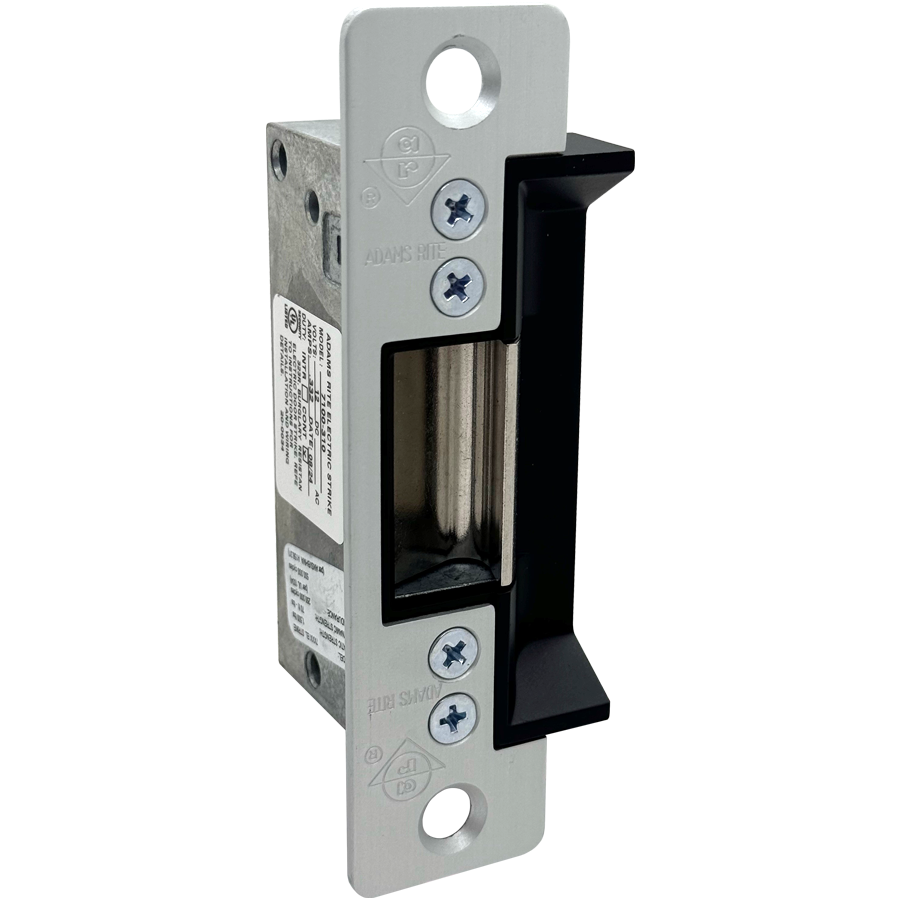

Adams Rite 7100-510-628 24VDC Fail Secure Electric Strike, Radius Corner, 1-1/4" x 4-7/8" Faceplate

Adams Rite Manufacturing 7100-510-628 Electric Strike offers a reliable and versatile solution for securing a range of door applications. Designed for use with Adams Rite deadlatches or cylindrical locksets featuring a 1/2" to 5/8" latchbolt projection, this electric strike operates with remote electrical control, allowing for seamless access without manually operating the latch. Constructed with a compact mechanism that fits into aluminum jambs as shallow as 1-5/8", the 7100-510-628 model features a fail-secure design, ensuring the door remains locked when unpowered. Field convertibility allows customization between fail-safe and fail-secure modes, accommodating varying security needs. The strike's stainless steel bolt retainer jaw and a strike opening measuring 5/8" x 1-7/16" x 1/2" deep provide durability and compatibility with multiple Adams Rite deadlatch models. With a sleek faceplate measuring 1-1/4" x 4-7/8" and available in a clear anodized finish (628/US28), the electric strike seamlessly integrates into various architectural styles. Its operation is powered by 24VDC, making it suitable for both commercial and residential applications. Experience enhanced security and convenience with the Adams Rite Manufacturing 7100-510-628 Electric Strike.

Electric Strike 24VDC Fail Secure (FSE), (Field Reversible to FS), Radius Corner (RC), 1-1/4in x 4-7/8in Faceplate, 628/US28 Aluminum Clear Anodized

7100, 7101 Electric Strikes with 4-7/8" Faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection. For use in aluminum jambs and stiles. Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2" to 5/8" latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8". Fits existing prep for discontinued Adams Rite 7000, 7500, 7800 Electric Strikes.

Specifications:

• Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
• Case: Approximately 1" x 3-3/8" x 1-5/8" deep.
• Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4" thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.
• Strike Opening: 5/8" x 1-7/16" x 1/2" deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4" x 4-7/8". 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.
• Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units "buzz" on operation.

Series Options:

• Available with two monitoring signal switches which sense whether latch bolt is in strike and whether strike jaw is blocked. Choice of mounting in AC and DC for intermittent or continuous duty. 7100 Electric Strike (flat faceplate) available with extended strike lip. Specify assembled for either fail-secure (locked when unpowered) or fail-safe (locked when powered) operation, but can be field converted to the other mode.
• 4603 Rectifier: converts AC to DC, installs in low voltage line between transformer and strike. Rated 2 amps (200 PIV)
• 4605 Transformer: converts 120VAC to 12/24 VAC. Rated 40 Volt-amp output assures plenty of power for strike release. Patented mounting bracket fits in knockout hole of standard junction boxes.
• 4606 Transformer: Plug-in version for standard wall outlet.

Finishes:

• 313 - Dark Bronze Anodized (Similar to 613 - 10B - US10B)
• 335 - Black Anodized
• 626 - Satin Chrome (US26D - 26D)
• 628 - Clear Anodized (US28)

Features

• Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4" thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.
• Strike Opening: 5/8" x 1-7/16" x 1/2" deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4" x 4-7/8". 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.
• Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units "buzz" on operation.
• Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
• Case: Approximately 1" x 3-3/8" x 1-5/8" deep.

Resources

• Cut Sheet
