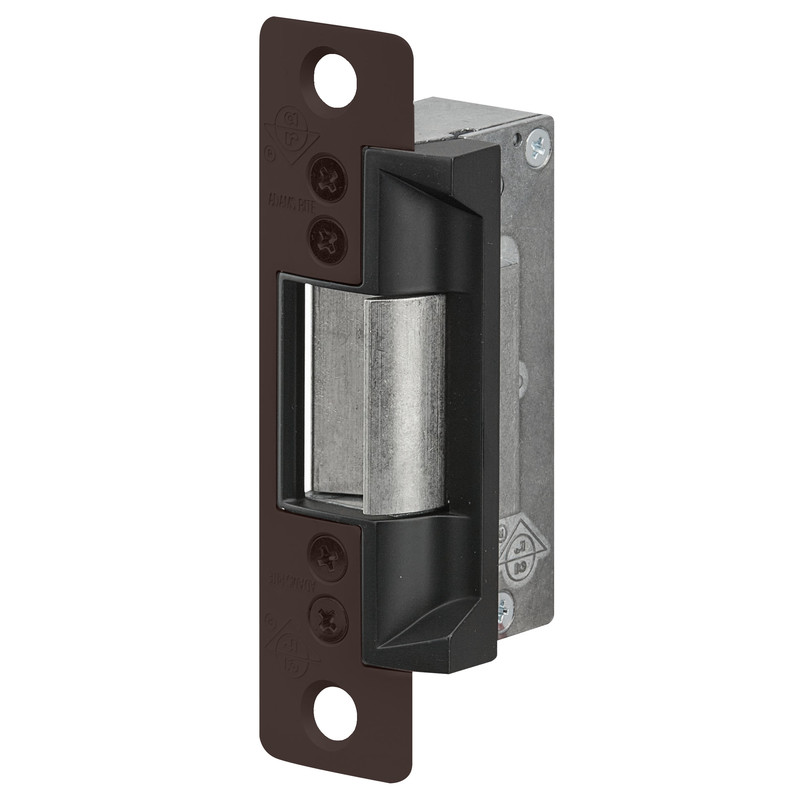

Adams Rite 7101-310-313-00 Electric Strike 12DVC is a Grade 1 electric strike designed for fail secure functionality, ideal for aluminum applications. This robust strike operates on 12 VDC and features a sleek dark bronze anodized finish. Measuring 4-7/8" x 1-1/4" with a radius faceplate and round corners, it seamlessly integrates with narrow stile glass doors, enhancing both aesthetics and security. This electric strike provides remote electrical control for doors equipped with Adams Rite 4500, 4700 (discontinued), or 4900 deadlatches or cylindrical locksets, featuring a latchbolt projection of 1/2" to 5/8". The electrical actuation unlocks the keeper, allowing easy access without the need to operate the latch itself. With a holding force of up to 1500 lbs static and 70 ft lbs dynamic, the 7101 ensures reliable performance in commercial settings. Field convertible between fail-safe and fail-secure modes, this model offers flexibility to meet various security needs. The stainless steel bolt retainer jaw enhances durability, while its UL 1034 and UL 294 listings guarantee compliance with safety standards. Backed by a 5-year limited warranty, the Adams Rite 7101 is a dependable choice for enhancing door security in both commercial and residential applications.
Electric Strike 12DVC
Grade 1 Electric Strike, Fail Secure, 12 VDC, for Aluminum Applications, 4-7/8" x 1-1/4" Radius Faceplate with Round Corners, Dark Bronze Anodized Finish
Remote Electrical Control of Any Door Equipped with an Adams Rite 4500, 4700 (Discontinued), or 4900 Deadlatch or Cylindrical Lockset with 1/2" [12.7 mm] To 5/8"[15.9 mm] Latchbolt Projection. Electrical Actuation Unlocks the Keeper, Releasing the Latchbolt so the Door May Be Opened Without Operating the Latch Itself.
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection.
For use in aluminum, hollow metal, or wood applications — remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
Manufacturer surcharge: $ 0.0
Amp Draw: .33 Amps
Ansi: ANSI/BHMA A156.23
Application: Aluminum Applications
Commercial Residential: Commercial
Faceplate Shape: Radius Face, Round Corners
Faceplate Size: 4-7/8" x 1-1/4"
Finish: 313
Finish Family: Dark Bronze
Function: Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs Static, 70 ft lbs Dynamic
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 12 VDC
Pack Qty: 1
Pbs Options: 103,963,901,039,639,000,000,000
Series: 7100 Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 1034 and UL 294 Listed
Unit of Measure: Each
Upc: 8.89E+11
