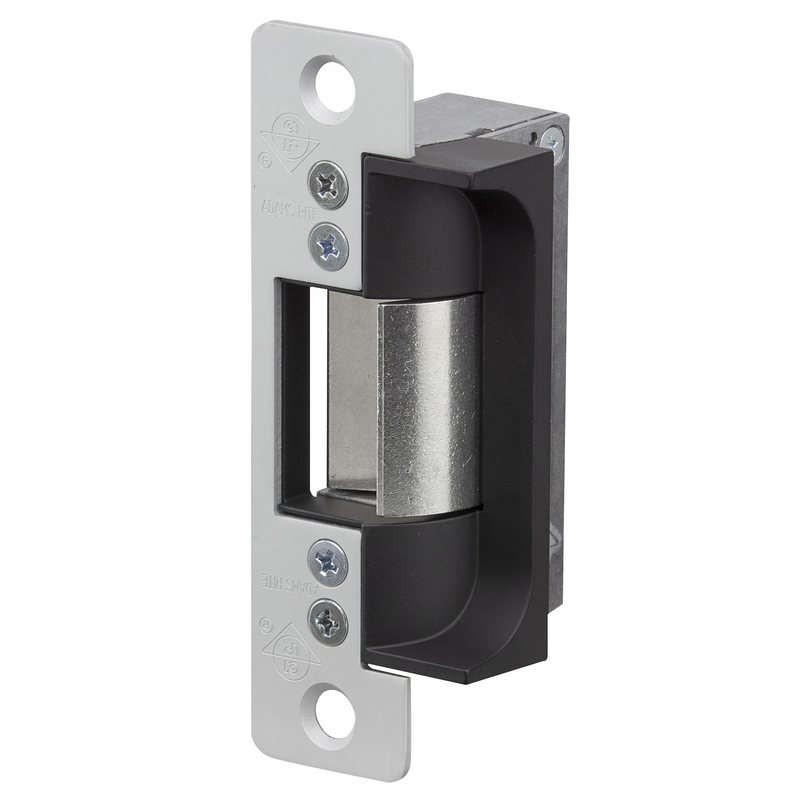

Adams Rite 7160-515-628-00 Electric Strike 24VDC offers a robust solution for securing doors in aluminum applications. This Grade 1 electric strike operates on a fail-safe mechanism, ensuring that in case of a power failure, the door remains unlocked for safe exit. Measuring 4-7/8" x 1-1/4" with a flat faceplate and round corners, this unit seamlessly integrates into various door styles. Designed for compatibility with Adams Rite deadlatches and cylindrical locksets featuring a latchbolt projection of 1/2" to 5/8", the electric strike allows for remote electrical control, unlocking the keeper and releasing the latchbolt without manual operation. This feature enhances convenience and security in commercial settings. The strike's durable construction includes a stainless steel bolt retainer jaw and a holding force of 1500 lbs static and 70 ft lbs dynamic, ensuring reliability in high-traffic areas. With an operating voltage of 24VDC and a UL listing for safety compliance, the Adams Rite 7160 is built to perform. Additionally, it is field convertible between fail-safe and fail-secure modes, offering flexibility for various installation needs. Backed by a 5-year limited warranty, this electric strike is an excellent choice for professional applications.
Electric Strike 24VDC
Grade 1 Electric Strike, Fail Safe, 24VDC, for Aluminum Applications, 4-7/8" x 1-1/4" Flat Faceplate with Round Corners, Aluminum Finish
Remote Electrical Control of Any Door Equipped with an Adams Rite 4500, 4700 (Discontinued), or 4900 Deadlatch or Cylindrical Lockset with 1/2" [12.7 mm] To 5/8"[15.9 mm] Latchbolt Projection. Electrical Actuation Unlocks the Keeper, Releasing the Latchbolt so the Door May Be Opened Without Operating the Latch Itself.
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection.
For use in aluminum, hollow metal, or wood applications — remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
Amp Draw: .17 Amps
Ansi: ANSI/BHMA A156.23
Application: Aluminum Applications
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Round Corners
Faceplate Size: 4-7/8" x 1-1/4"
Finish: 628/US28
Finish Family: Matte Silver
Function: Fail Safe
Grade: Grade 1
Holding Force: 1500 lbs Static, 70 ft lbs Dynamic
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 24VDC
Pack Qty: 1
Pbs Options: 103,963,941,039,639,000,000,000
Series: 7100 Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 1034 and UL 294 Listed
Unit of Measure: Each
