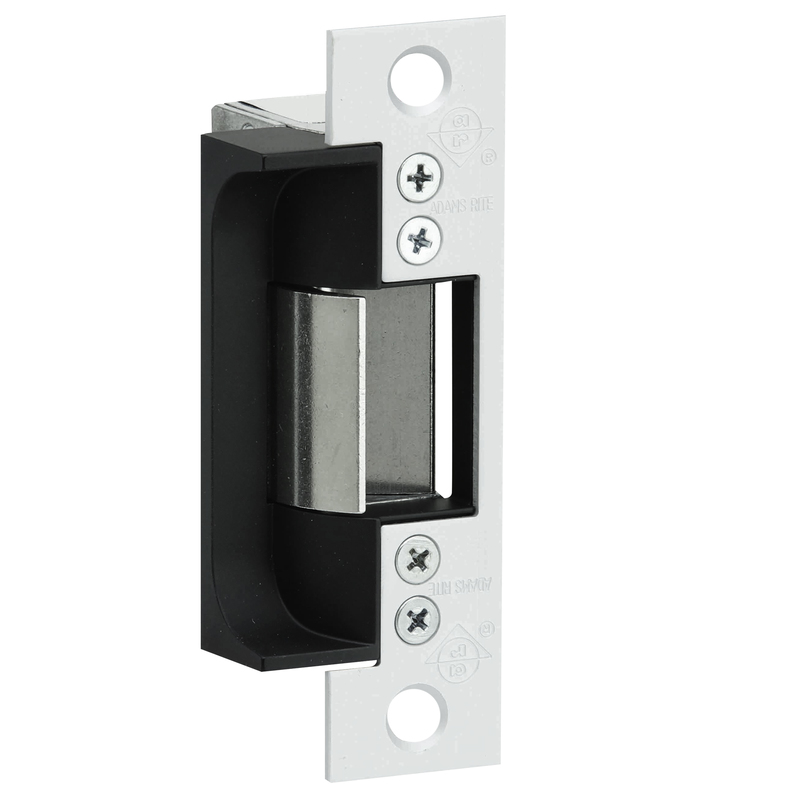

Adams Rite 7170-510-626-00 Electric Strike 24VDC offers a robust solution for securing doors in both commercial and residential settings. This Grade 1 electric strike is designed as a fail secure device, ensuring that doors remain locked during power outages or failures. With a voltage requirement of 24VDC, this strike is ideal for use with Adams Rite 4500, 4700 (discontinued), or 4900 deadlatches, as well as cylindrical locksets featuring a latchbolt projection of 1/2" to 5/8". Measuring 4-7/8" x 1-1/4", the flat faceplate with square corners is finished in a sleek satin chrome, providing a modern touch while blending seamlessly with both hollow metal and wood applications. The electric actuation unlocks the keeper, allowing the latchbolt to release without requiring manual operation, enhancing convenience for high-traffic areas. The strike boasts a holding force of 1500 lbs static and 70 ft lbs dynamic, ensuring reliable performance. Additionally, it is UL 1034 and UL 294 listed, affirming its compliance with stringent safety standards. With a 5-year limited warranty, the Adams Rite 7170-510-626-00 Electric Strike is a dependable choice for those seeking a combination of security and accessibility.
Electric Strike 24VDC
Grade 1 Electric Strike, Fail Secure, 24VDC, for Hollow Metal or Wood Applications, 4-7/8" x 1-1/4" Flat Faceplate with Square Corners, Satin Chrome Finish
Remote Electrical Control of Any Door Equipped with an Adams Rite 4500, 4700 (Discontinued), or 4900 Deadlatch or Cylindrical Lockset with 1/2" [12.7 mm] To 5/8"[15.9 mm] Latchbolt Projection. Electrical Actuation Unlocks the Keeper, Releasing the Latchbolt so the Door May Be Opened Without Operating the Latch Itself.
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection.
For use in aluminum, hollow metal, or wood applications — remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
Amp Draw: .17 Amps
Ansi: ANSI/BHMA A156.23
Application: Hollow Metal or Wood Applications
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8" x 1-1/4"
Finish: 626/US26D
Finish Family: Matte Silver
Function: Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs Static, 70 ft lbs Dynamic
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 24VDC
Pack Qty: 1
Pbs Options: 103,963,941,039,639,000,000,000
Series: 7100 Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 1034 and UL 294 Listed
Unit of Measure: Each
