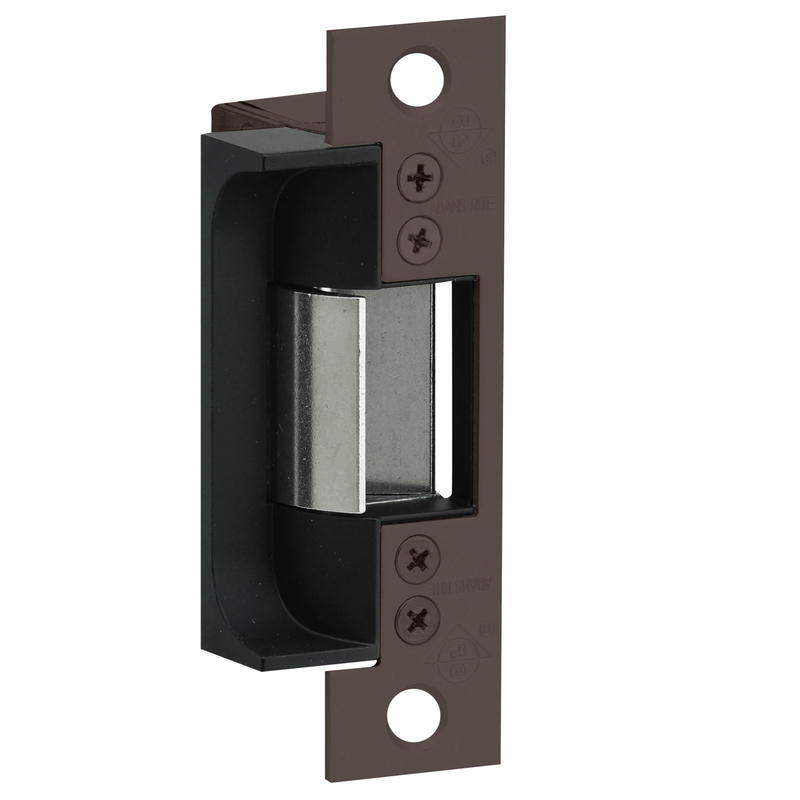

Adams Rite 7170-515-313-00 Electric Strike 24VDC is a Grade 1 electric strike designed for superior functionality in both hollow metal and wood applications. This fail-safe unit operates on a 24VDC power supply and features a robust flat faceplate measuring 4-7/8" x 1-1/4" with square corners, finished in a sleek dark bronze anodized coating. This electric strike allows for remote electrical control of doors equipped with Adams Rite 4500, 4700 (discontinued), or 4900 deadlatches or cylindrical locksets, accommodating latchbolt projections between 1/2" and 5/8". The electrical actuation unlocks the keeper, enabling door access without the need to manually operate the latch. The strike's fail-safe function can be field converted, providing flexibility for various security needs, while the stainless steel bolt retainer jaw enhances durability. Measuring approximately 1" x 3-3/8" x 1-5/8" deep, this strike is built to withstand demanding commercial environments, boasting a static holding force of 1500 lbs and a dynamic force of 70 ft lbs. With a limited 5-year warranty and UL listings for safety, the Adams Rite 7170 electric strike promises reliability and ease of installation in any commercial setting.
Electric Strike 24VDC
Grade 1 Electric Strike, Fail Safe, 24VDC, for Hollow Metal or Wood Applications, 4-7/8" x 1-1/4" Flat Faceplate with Square Corners, Dark Bronze Anodized Finish
Remote Electrical Control of Any Door Equipped with an Adams Rite 4500, 4700 (Discontinued), or 4900 Deadlatch or Cylindrical Lockset with 1/2" [12.7 mm] To 5/8"[15.9 mm] Latchbolt Projection. Electrical Actuation Unlocks the Keeper, Releasing the Latchbolt so the Door May Be Opened Without Operating the Latch Itself.
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection.
For use in aluminum, hollow metal, or wood applications — remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
Amp Draw: .17 Amps
Ansi: ANSI/BHMA A156.23
Application: Hollow Metal or Wood Applications
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8" x 1-1/4"
Finish: 313
Finish Family: Dark Bronze
Function: Fail Safe
Grade: Grade 1
Holding Force: 1500 lbs Static, 70 ft lbs Dynamic
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 24VDC
Pack Qty: 1
Pbs Options: 103,963,941,039,639,000,000,000
Series: 7100 Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 1034 and UL 294 Listed
Unit of Measure: Each
