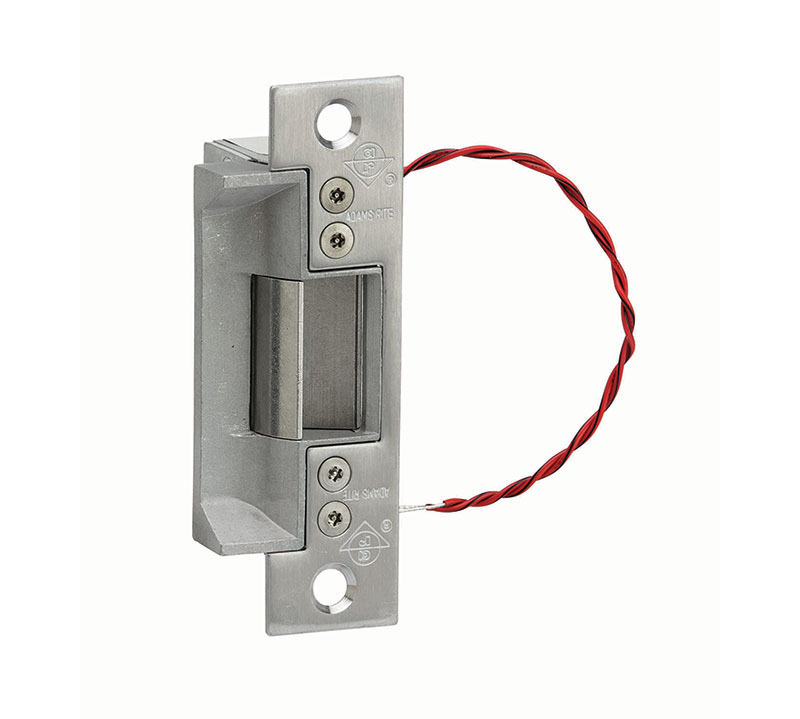

Adams Rite 7240-519-630-50 24VDC Electric Strike Fire Rated

Adams Rite 7240-519-630-50 Electric Strike 24VDC Fire Rated is a robust solution designed for remote electrical control of doors equipped with cylindrical locksets. This fail secure electric strike is engineered for use in hollow metal door jambs, offering a seamless integration into commercial settings. With a fire rating of 3 hours as per UL10C and CAN/ULC-S104 standards, this model ensures safety without compromising accessibility. The strike is configured to accommodate latchbolts with up to 5/8" projection, allowing for smooth operation when unlocking. Once electrical actuation occurs, the strike jaw releases the latchbolt, enabling effortless door access without needing to engage the latch manually. The unit features a sleek satin stainless steel finish (630/US32D) that complements various architectural styles. Measuring approximately 1" x 3-3/8" x 1-5/8" deep, the strike's flat faceplate (1-1/4" x 4-7/8") with square corners adds to its refined aesthetic. Operating at 24VDC, it draws 0.17 amps and is available in monitored or unmonitored versions. The Adams Rite 7240-519-630-50 Electric Strike is an ideal choice for enhancing security in commercial applications while maintaining ease of access.

Electric Strike 24VDC Fire Rat

Electric Strike, Fire Rated, Cylindrical Latches, 24VDC, Fail Secure, Monitored, Satin Stainless Steel

For use in hollow metal door jambs.

Remote electrical control of any door equipped with cylindrical (key-in-knob/lever) type locksets with up to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself.

• UL10C, CAN/ULC-S104, fire rated 3 hr.
• Case: Approximately 1” x 3-3/8” x 1-5/8” deep.
• Strike Lip: Basic 7240 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge.
• Strike Opening: 5/8” x 1-7/16” x 9/16” deep. Bolt retainer jaw and strike lip are stainless steel. Strike accepts bolt from a variety of latchsets.
• Faceplate: Measures 1-1/4 x 4-7/8”. Faceplate is flat, with square corners.
• Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Resources

• 7200 Electric Strikes Cut Sheet
• 7240 Fire-Rated Electric Strike for Metal Jamb w/Key-In-Knob Latches Installation Instructions
• 7270 Fire-Rated Electric Strike for Metal Jamb w/Mortise Latches Installation Instructions
• Electric Strike Catalog
