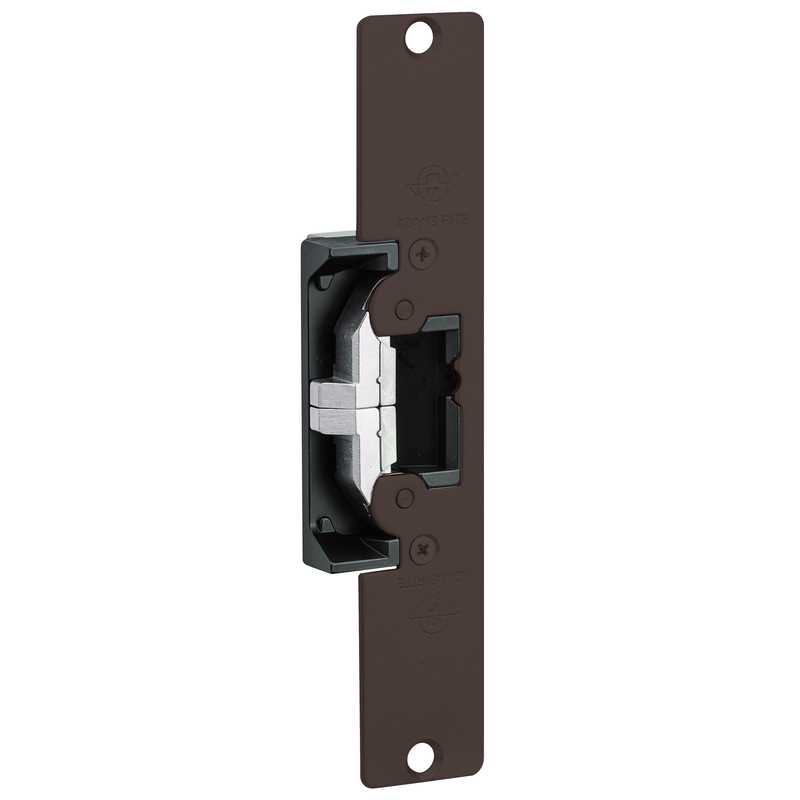

Adams Rite 7410M313 7410 Electric Strike with Monitor

Adams Rite 7410M313 7410 Electric Strike w/Monitor is designed to enhance security in various applications, including aluminum, hollow metal, or wood doors. This electric strike features a field-selectable fail safe or fail secure option, allowing for customization based on your security needs. Its flat faceplate measures 7-15/16" x 1-7/16" with radius corners, ensuring a sleek and professional appearance. Operating on 12, 16, or 24 VAC/DC, the monitored functionality provides an added layer of security by allowing real-time status updates. The strike’s case measures approximately 1" x 3-3/8" x 1-1/16" deep, designed to accommodate various door thicknesses with the basic lip suitable for 1-3/4" doors. For different configurations, lip extension kits are available. The strike opening is adjustable at 5/8" x 1-7/16" x 1/2" deep, crafted with a stainless steel bolt retainer jaw, ensuring durability and reliability. Ideal for commercial applications, the Adams Rite 7410 Electric Strike is finished in a dark bronze anodized aluminum, marrying function with aesthetic appeal. Upgrade your door security effortlessly with this robust electric strike solution, perfect for high-traffic environments.

7410 Electric Strike w/Monitor

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 7-15/16" x 1-7/16" Flat Faceplate with Radius Corners, 12, 16, 24 VAC/DC, Monitored, Dark Bronze Anodized Aluminum

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 7-15/16 In. X 1-7/16 In. Flat Faceplate with Radius Corners, 12, 16, 24 VAC/DC, Monitored, Dark Bronze Anodized Aluminum

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection.

• Fail-Safe/Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Voltage:
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
