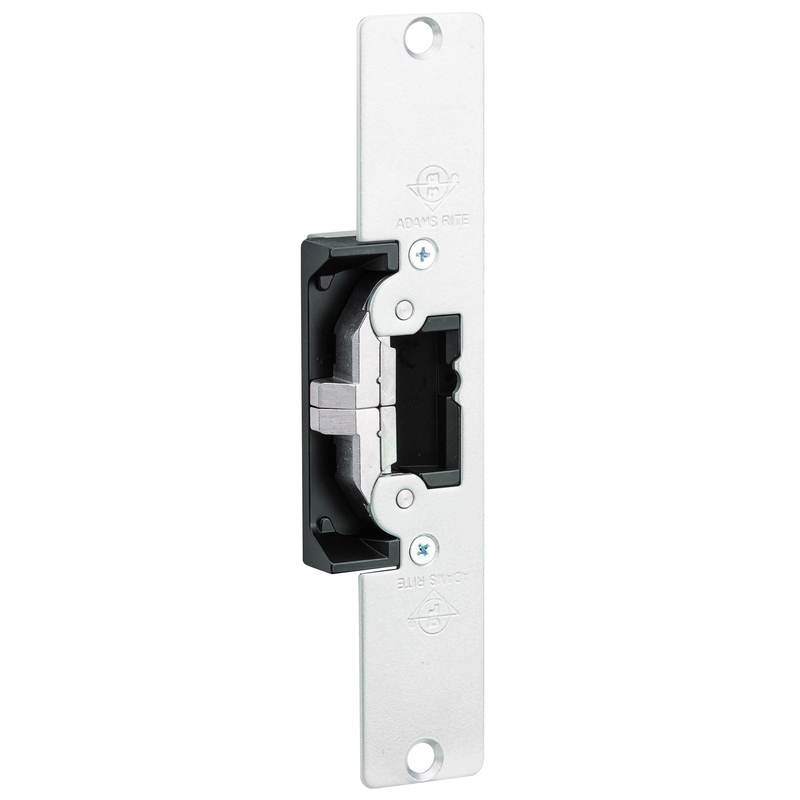

Adams Rite 7410M628 7410 Electric Strike with Monitor

Adams Rite 7410M628 7410 Electric Strike w/Monitor offers a robust solution for securing doors in commercial settings. This electric strike is field selectable between fail safe and fail secure modes, ensuring flexibility to meet your specific security needs. Designed for use with aluminum, hollow metal, or wood applications, it features a flat faceplate measuring 7-15/16" x 1-7/16" with radius corners, providing a sleek aesthetic that complements various door designs. The monitored functionality allows for real-time feedback on the locking status, enhancing security management. Operating on 12, 16, or 24 VAC/DC, the 7410 is versatile in terms of power source compatibility, making it an adaptable choice for different installations. The strike's case dimensions of approximately 1" x 3-3/8" x 1-1/16" deep ensure it fits seamlessly into standard door frames. With a stainless steel bolt retainer jaw and an adjustable strike opening of 5/8" x 1-7/16" x 1/2" deep, this electric strike accommodates various latch types including Adams Rite deadlatches and cylindrical locks. Finished in a matte silver (628/US28), the Adams Rite 7410M628 is not only functional but also visually appealing, making it an excellent addition to any commercial access control system.

7410 Electric Strike w/Monitor

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 7-15/16" x 1-7/16" Flat Faceplate with Radius Corners, 12, 16, 24 VAC/DC, Monitored, Satin Aluminum Clear Anodized

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 7-15/16 In. X 1-7/16 In. Flat Faceplate with Radius Corners, 12, 16, 24 VAC/DC, Monitored, Satin Aluminum Clear Anodized

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection.

• Fail-Safe/Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Voltage:
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
