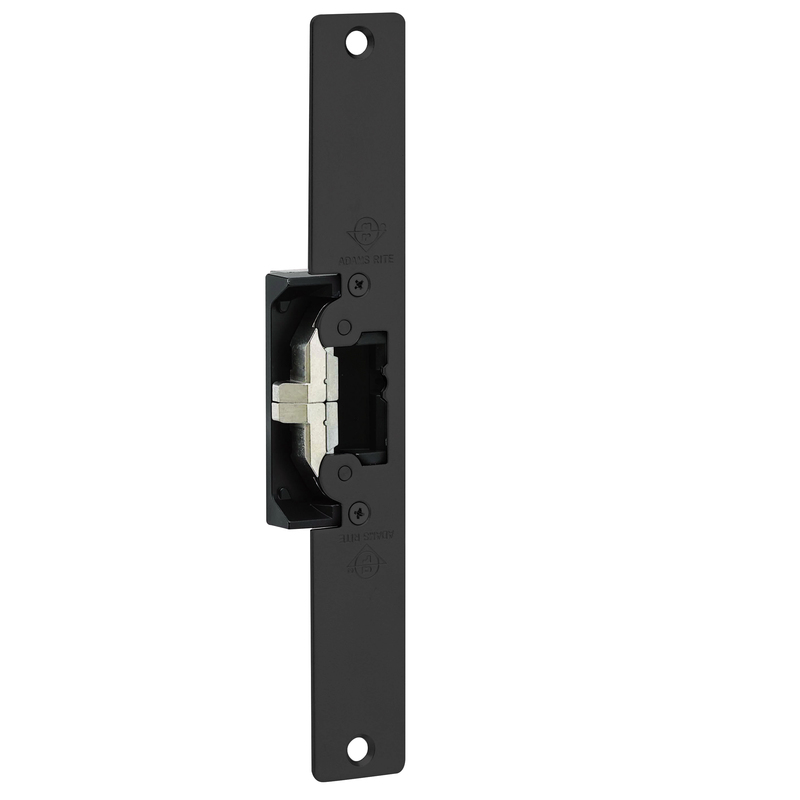

Adams Rite 7411-335 7411 Series Electric Strike

Adams Rite 7411-335 7411 Series Electric Strike offers a reliable solution for securing aluminum, hollow metal, or wood doors. This versatile electric strike is field selectable between fail-safe and fail-secure modes, allowing customization based on the specific security needs of your application. The strike features a flat faceplate measuring 10-1/4" x 1-7/16" with radius corners, designed to integrate seamlessly into a variety of door types. Constructed from black anodized aluminum, the 7411-335 is not only durable but also aesthetically pleasing, making it suitable for both commercial and residential settings. With operating voltages of 12, 16, or 24 VAC/DC, this electric strike accommodates diverse power configurations, ensuring compatibility with your existing systems. The adjustable strike opening of 5/8" x 1-7/16" x 1/2" deep is designed to accept bolts from Adams Rite deadlatches or cylindrical latches, enhancing its functionality. Furthermore, installation is straightforward, requiring minimal effort for integration into your door hardware setup. Whether you are upgrading an existing system or implementing a new solution, the Adams Rite 7411-335 Electric Strike provides the security and performance you need for effective door access control.

7411 Series Electric Strike

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 10-1/4" x 1-7/16" Flat Faceplate with Radius Corners, 12, 16, 24 VAC/DC, Black Anodized Aluminum

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 10-1/4 In. X 1-7/16 In. Flat Faceplate with Radius Corners, 12, 16, 24 VAC/DC, Black Anodized Aluminum

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection.

• Fail-Safe/Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Voltage:
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.

Resources

• 7400 Electric Strikes Cut Sheet
• 7400 Series Electric Strikes Installation Instructions
• Electric Strike Catalog
