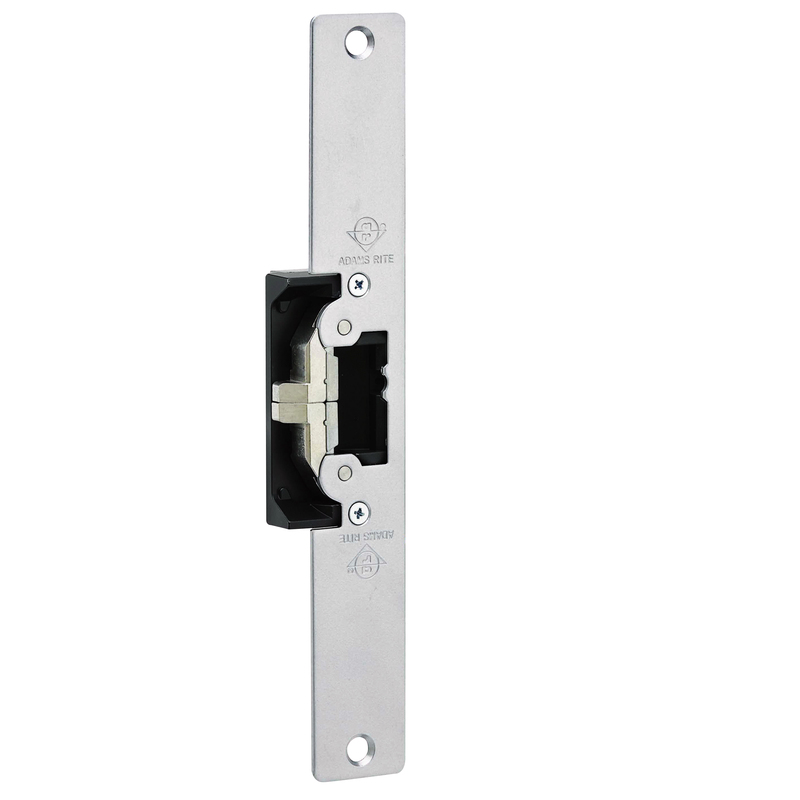

Adams Rite 7411-630 7411 Series Electric Strike

Adams Rite 7411-630 7411 Series Electric Strike offers exceptional versatility and reliability for a variety of door applications, including aluminum, hollow metal, and wood. This field-selectable electric strike accommodates both fail-safe and fail-secure configurations, making it an ideal choice for commercial environments where security needs may change. Measuring 10-1/4" x 1-7/16", the flat faceplate features radius corners, providing a sleek and professional finish in satin stainless steel (630/US32D). With a robust case size of approximately 1" x 3-3/8" x 1-1/16" deep, this electric strike seamlessly integrates into your existing door hardware. The strike opening is adjustable at 5/8" x 1-7/16" x 1/2" deep, ensuring compatibility with Adams Rite deadlatches or cylindrical latches. Operating at 12, 16, or 24 VAC/DC, the 7411-630 is designed to meet diverse electrical requirements, while its amp draw provides efficient power consumption. Additionally, the strike's bolt retainer jaw is constructed from durable stainless steel, enhancing its longevity. For those seeking a reliable and adaptable electric strike solution, the Adams Rite 7411-630 promises to deliver superior performance and security in any commercial setting.

7411 Series Electric Strike

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 10-1/4" x 1-7/16" Flat Faceplate with Radius Corners, 12, 16, 24 VAC/DC, Satin Stainless Steel

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 10-1/4 In. X 1-7/16 In. Flat Faceplate with Radius Corners, 12, 16, 24 VAC/DC, Satin Stainless Steel

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection.

• Fail-Safe/Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Voltage:
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
