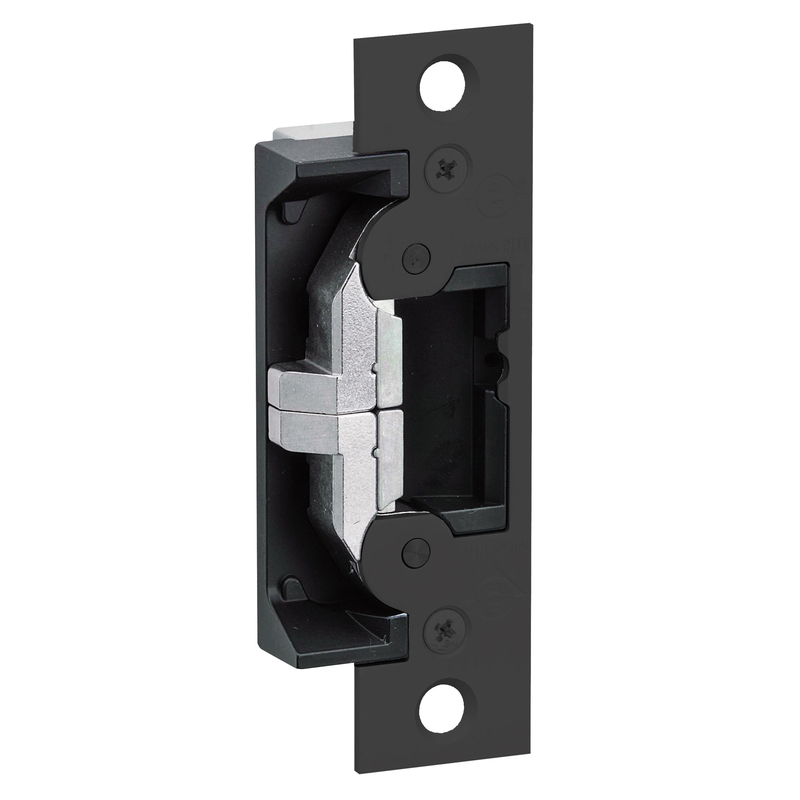

Adams Rite 7431-119 7431 Series Electric Strike

Adams Rite 7431-119 7431 Series Electric Strike offers a versatile and reliable solution for securing your entryways. Designed for use in aluminum, hollow metal, or wood applications, this electric strike features a 6-7/8" x 1-1/4" radiused faceplate that seamlessly integrates with various door types. One of the standout attributes of the 7431-119 is its field-selectable fail-safe and fail-secure functionality, allowing for easy customization to meet specific security needs at installation. Its robust construction includes a stainless steel bolt retainer jaw and a strike opening measuring 5/8" adjustable x 1-7/16" x 1/2" deep, which is compatible with Adams Rite deadlatches and cylindrical locks. The electric strike operates on a flexible voltage range of 12, 16, or 24 VAC/DC, making it adaptable to existing power sources. With an amp draw of .163A at 12AC and .440A at 12DC, it provides efficient performance without compromising on security. Finished in a sleek satin black Ritecoat paint, this electric strike not only delivers functionality but also aesthetics, complementing modern architectural designs. Choose the Adams Rite 7431-119 for a dependable, stylish, and secure locking mechanism that meets the demands of both commercial and residential applications.

7431 Series Electric Strike

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 6-7/8" x 1-1/4" Radiused Faceplate, 12, 16, 24 VAC/DC, Satin Black Ritecoat Paint

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 6-7/8 In. X 1-1/4 In. Radiused Faceplate, 12, 16, 24 VAC/DC, Satin Black Ritecoat Paint

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection.

• Fail-Safe/Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Voltage:
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.

Resources

• 7400 Electric Strikes Cut Sheet
• 7400 Series Electric Strikes Installation Instructions
• Electric Strike Catalog
