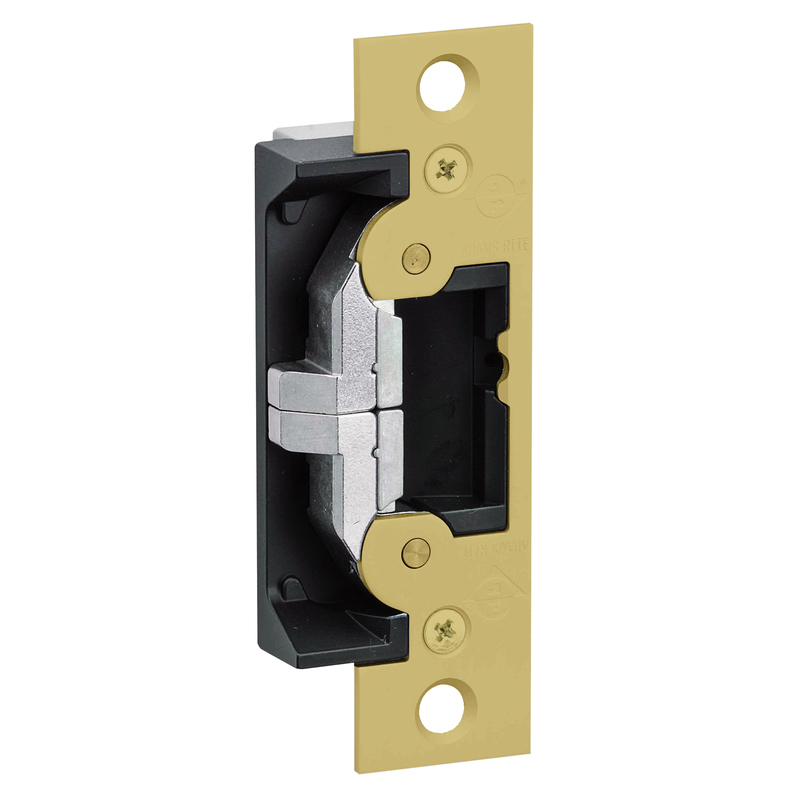

Adams Rite 7440-606 7440 Series Electric Strike

Adams Rite 7440-606 7440 Series Electric Strike offers a versatile and reliable solution for securing aluminum, hollow metal, or wood doors. This electric strike features a field-selectable function, allowing you to choose between fail-safe and fail-secure modes at the time of installation, accommodating various security needs. With a flat faceplate measuring 4-7/8" x 1-1/4" and square corners, it integrates seamlessly into your door hardware setup. Designed for compatibility with Adams Rite deadlatches or cylindrical locksets that have a latchbolt projection of 1/2" to 5/8", the 7440-606 ensures a precise fit. The strike opening is adjustable at 5/8" x 1-7/16" x 1/2" deep, featuring a durable stainless steel bolt retainer jaw for enhanced security. This model operates on multiple voltages (12, 16, or 24 VAC/DC), making it adaptable to your existing power source, while the satin brass finish adds a touch of elegance to your door hardware. The 7440-606 is ideal for commercial applications, providing robust security without compromising on style. Upgrade your access control with this reliable electric strike, engineered to meet the demands of both functionality and aesthetics.

7440 Series Electric Strike

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 4-7/8" x 1-1/4" Flat Faceplate with Square Corners, 12, 16, 24 VAC/DC, Satin Brass

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 4-7/8 In. X 1-1/4 In. Flat Faceplate with Square Corners, 12, 16, 24 VAC/DC, Satin Brass

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection.

• Fail-Safe/Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Voltage:
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
