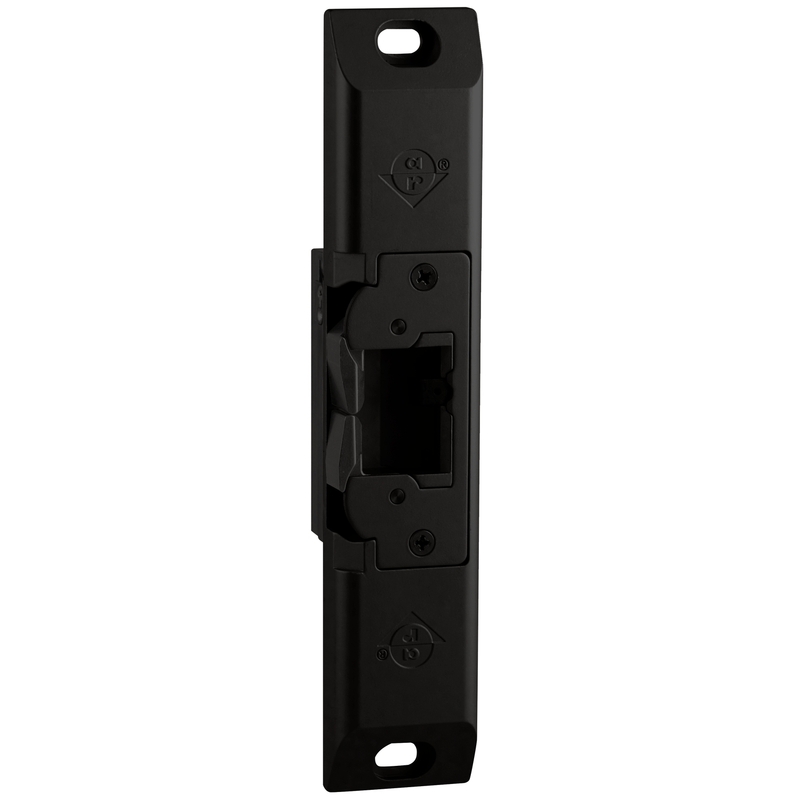

Adams Rite 74R1-119 74R1 Electric Strike Series

Adams Rite 74R1-119 74R1 Series Electric Strike offers versatility and reliable security for a variety of door applications. Designed for use with rim exit devices, this electric strike is compatible with aluminum, hollow metal, or wood doors, making it an ideal choice for both commercial and residential settings. Its field-selectable function allows users to choose between fail-safe and fail-secure modes during installation, ensuring it meets specific security needs. The electric strike features a robust faceplate measuring 9" x 1-3/4" and is finished in a sleek satin black Ritecoat paint, providing an attractive yet durable appearance. The adjustable strike opening is designed to accommodate latchbolts from Adams Rite's 4500, 4700, or 4900 series, with a stainless steel bolt retainer jaw ensuring long-lasting performance. Operating with a voltage range of 12, 16, or 24 VAC/DC, this device is versatile in power compatibility. With an approximate case size of 1" x 3-3/8" x 1-1/16", it fits seamlessly into existing door frames. The Adams Rite 74R1-119 Electric Strike delivers exceptional security and functionality, making it a reliable choice for any door hardware solution.

74R1 Series Electric Strike

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, For Aluminum, Hollow Metal or Wood Applications, 9" x 1-3/4" Faceplate, 12, 16, 24 VAC/DC, Satin Black Ritecoat Paint

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, For Aluminum, Hollow Metal or Wood Applications, 9 In. X 1-3/4 In. Faceplate, 12, 16, 24 VAC/DC, Satin Black Ritecoat Paint

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection.

• Fail-Safe/Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Voltage:
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
