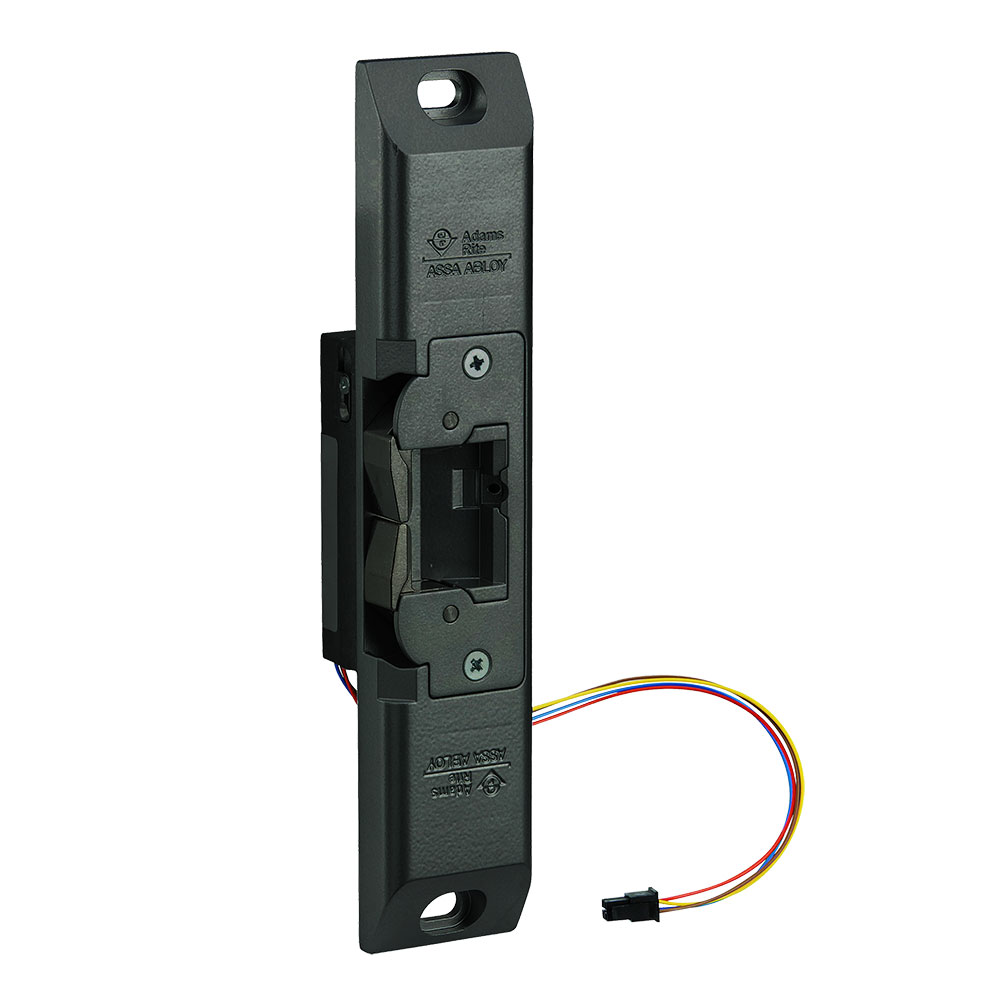

Adams Rite 74R1M119 74R1 Electric Strike Series

Adams Rite 74R1M119 74R1 Series Electric Strike delivers reliable security for rim exit devices, adaptable for use with aluminum, hollow metal, or wood applications. This electric strike features a field-selectable function, allowing for easy configuration between fail-safe and fail-secure modes at the time of installation, ensuring flexibility for diverse security needs. Measuring 9" x 1-3/4", the strike's faceplate is finished in a stylish satin black Ritecoat paint, complementing various architectural designs. The case dimensions of approximately 1" x 3-3/8" x 1-1/16" provide a robust yet compact installation option. The strike opening is adjustable at 5/8" x 1-7/16" x 1/2" deep, accommodating Adams Rite 4500, 4700, or 4900 deadlatches or cylindrical latches. Operating on 12, 16, or 24 VAC/DC, the monitored design ensures that you can maintain oversight of the locking mechanism's status. The amp draw varies according to the voltage, ensuring efficient energy use. Whether for commercial or residential settings, the Adams Rite 74R1M119 electric strike is engineered for durability and performance, making it an essential component for secure access control solutions.

74R1 Series Electric Strike

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, For Aluminum, Hollow Metal or Wood Applications, 9" x 1-3/4" Faceplate, 12, 16, 24 VAC/DC, Monitored, Satin Black Ritecoat Paint

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, For Aluminum, Hollow Metal or Wood Applications, 9 In. X 1-3/4 In. Faceplate, 12, 16, 24 VAC/DC, Monitored, Satin Black Ritecoat Paint

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection.

• Fail-Safe/Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Voltage:
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
