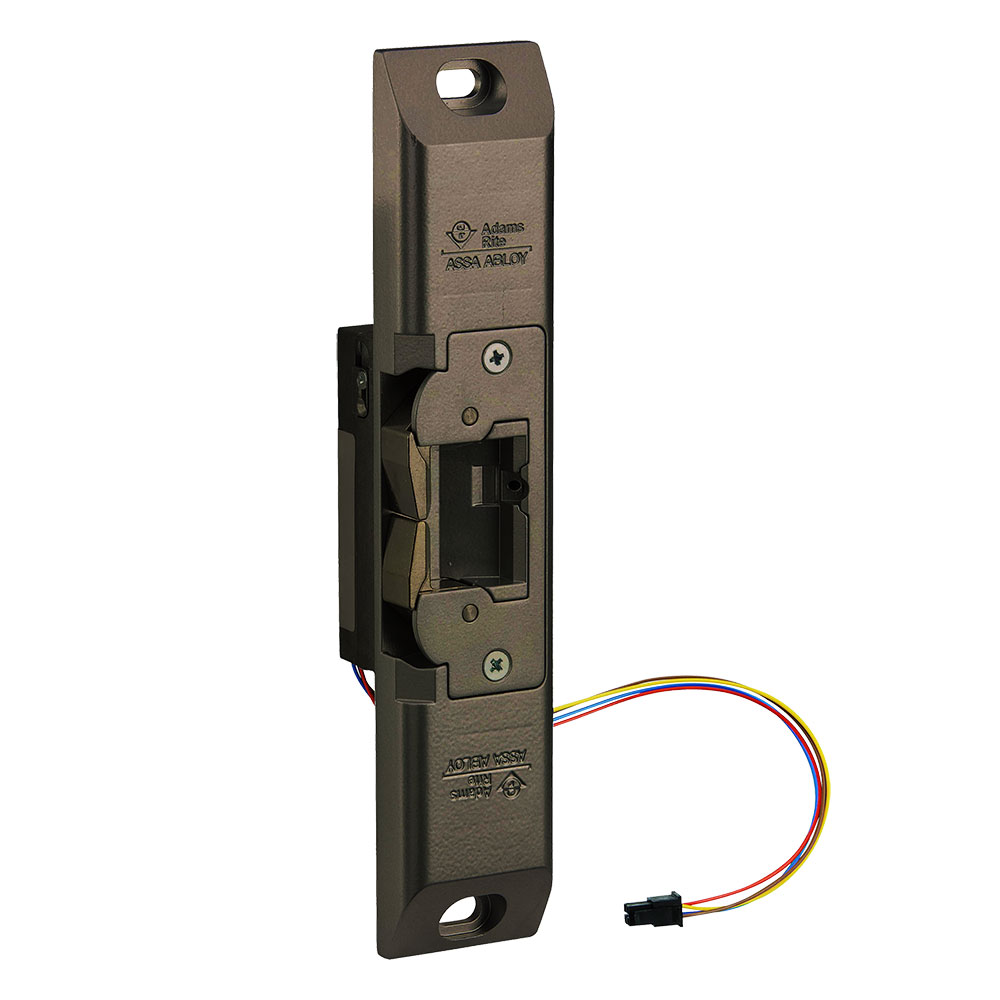

Adams Rite 74R1M121 74R1 Electric Strike Series

Adams Rite 74R1M121 74R1 Series Electric Strike offers exceptional versatility and security for commercial applications. Designed for use with rim exit devices, this electric strike is compatible with aluminum, hollow metal, or wood doors, making it a reliable choice for various installations. Its 9" x 1-3/4" faceplate and fail-safe/fail-secure functionality are field selectable, allowing for customization based on your security needs at the time of installation. The strike features a robust case measuring approximately 1" x 3-3/8" x 1-1/16" deep, ensuring durability and longevity. It includes a stainless steel bolt retainer jaw and an adjustable strike opening of 5/8" x 1-7/16" x 1/2" deep to accommodate Adams Rite deadlatches or cylindrical latches. The monitored design enhances security, providing peace of mind. With operating voltage options of 12, 16, or 24 VAC/DC, this electric strike can easily adapt to your existing power source. The dark bronze Ritecoat paint finish not only adds a stylish touch but also ensures resistance to wear and corrosion. Whether for new construction or retrofitting, the Adams Rite 74R1M121 is an ideal choice for enhancing door security while maintaining aesthetic appeal.

74R1 Series Electric Strike

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, For Aluminum, Hollow Metal or Wood Applications, 9" x 1-3/4" Faceplate, 12, 16, 24 VAC/DC, Monitored, Dark Bronze Ritecoat Paint

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, For Aluminum, Hollow Metal or Wood Applications, 9 In. X 1-3/4 In. Faceplate, 12, 16, 24 VAC/DC, Monitored, Dark Bronze Ritecoat Paint

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection.

• Fail-Safe/Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Voltage:
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
