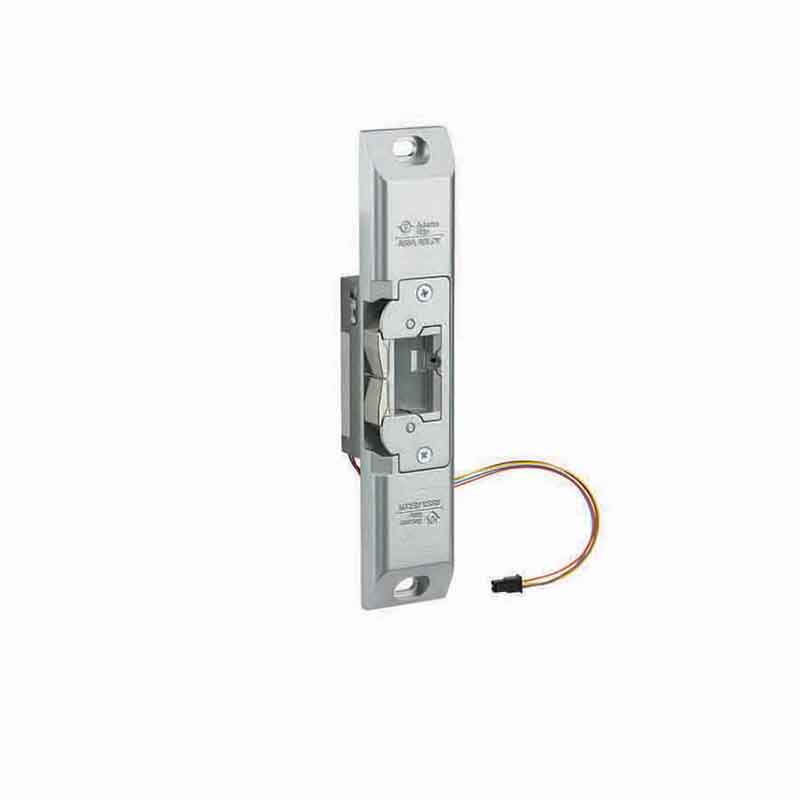

Adams Rite 74R1M130 74R1 Electric Strike Series

Adams Rite 74R1M130 74R1 Series Electric Strike offers a versatile and reliable solution for securing rim exit devices across various applications, including aluminum, hollow metal, and wood doors. This electric strike boasts a field-selectable fail-safe or fail-secure feature, allowing you to tailor its operation to your specific security needs during installation. Designed with a sleek satin aluminum Ritecoat finish, the 9" x 1-3/4" faceplate ensures a professional appearance while seamlessly integrating into your door hardware. The electric strike operates on 12, 16, or 24 VAC/DC power, providing flexibility to meet different electrical requirements. Its monitored design adds an extra layer of security, allowing for real-time status checks. The compact case measures approximately 1" x 3-3/8" x 1-1/16" deep, and the strike lip is optimized for doors that are 1-3/4" thick. With an adjustable strike opening of 5/8" x 1-7/16" x 1/2" deep, it accepts bolts from Adams Rite deadlatches and cylindrical latches, including the 4500, 4700, and 4900 series. Ideal for commercial environments, the Adams Rite 74R1 Series Electric Strike provides the durability and functionality needed for high-traffic areas, ensuring your entry points remain secure without compromising accessibility.

74R1 Series Electric Strike

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, For Aluminum, Hollow Metal or Wood Applications, 9" x 1-3/4" Faceplate, 12, 16, 24 VAC/DC, Monitored, Satin Aluminum Ritecoat Paint

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, For Aluminum, Hollow Metal or Wood Applications, 9 In. X 1-3/4 In. Faceplate, 12, 16, 24 VAC/DC, Monitored, Satin Aluminum Ritecoat Paint

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection.

• Fail-Safe/Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Voltage:
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
