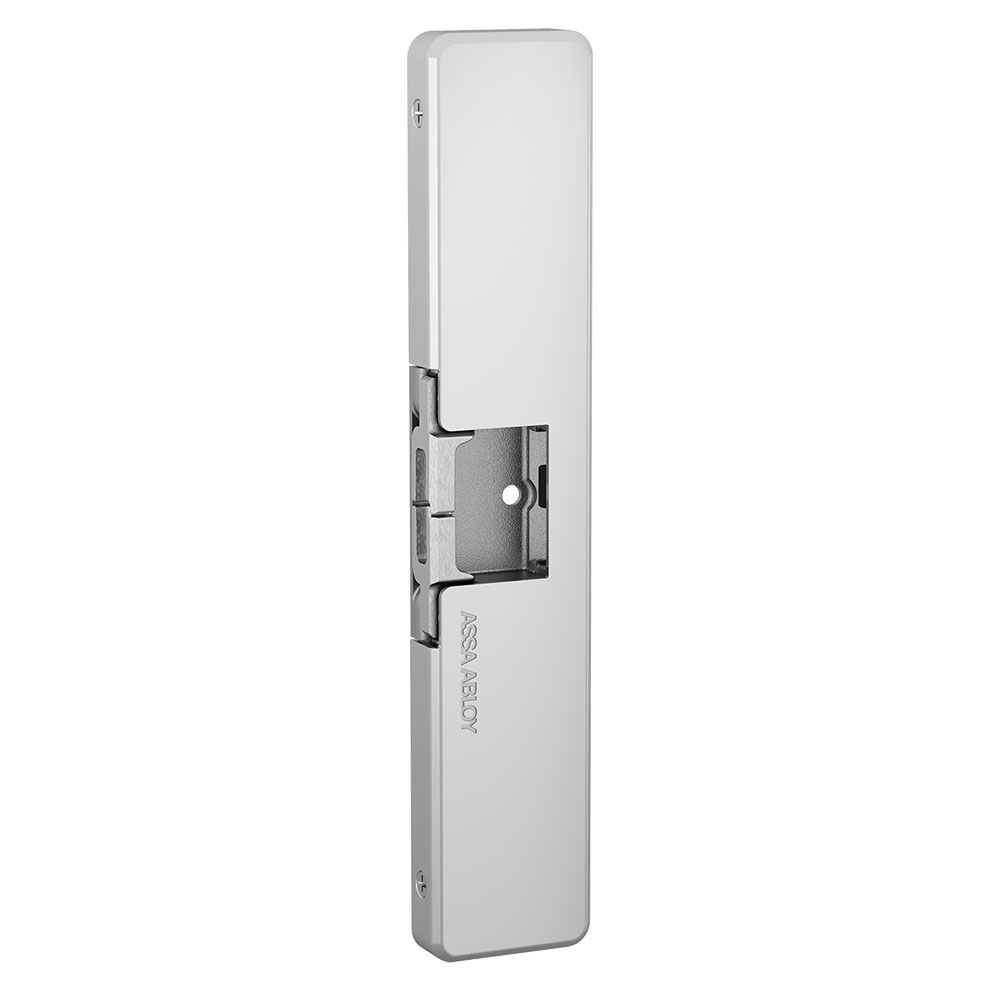

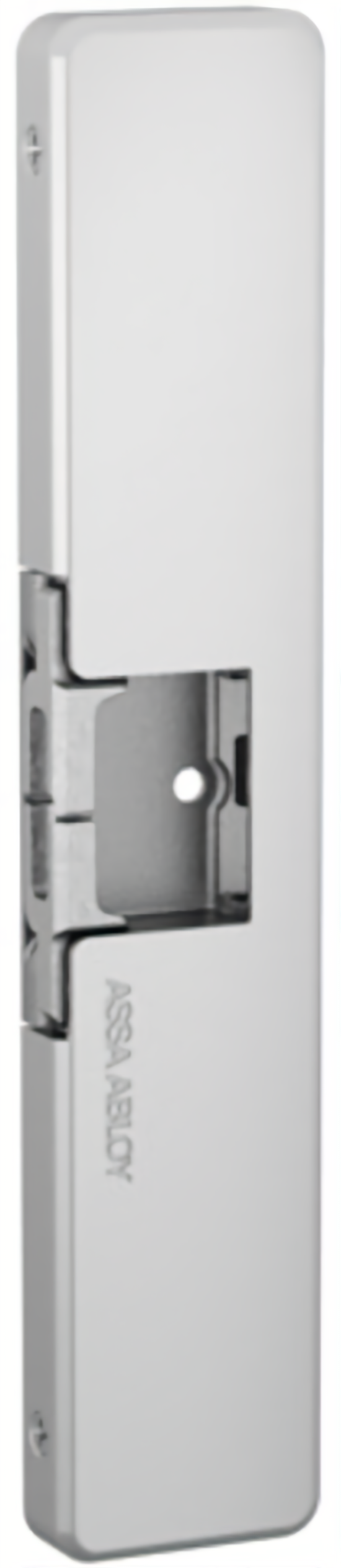

Adams Rite 7800-630 Electric Strike

Images may not represent actual product and finish

Your Price: $382.86

Retail Price:$717.000

Your Savings:$334.14(47%)

Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, Grade 1, 1/2 In. Thick Strike Body, Non-Handed, Satin Stainless Steel

Part Number

: ADR_7800630

Availability: 203 In stock

Quantity

Description

Adams Rite 7800-630 Electric Strike

7800 Electric Strike is designed for use with Adams Rite rim exit devices with a Starwheel/Interlocking latchbolt (8700, 8800 Series, EX88). For use in aluminum, hollow metal or wood applications. This non-handed, low-profile, surface mounted electric strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. Internally mounted dual solenoid operates on 12 or 24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.

Strike Dimensions: 1-13/4" x 9" x 9/16" deep (44.5 mm x 229 mm x 14.2 mm deep)
Strike Opening Bolt retaining keeper is stainless steel.
1" x 1-1/2" x 1/2" deep (24.4 mm x 38.1 mm x 12.7 mm deep).
Strike only accepts Starwheel/Interlocking latching mechanism.
Faceplate: Not separate 1-3/4" x 9-1/64" x 9/16" (44.5 mm x 229 mm x 14.2 mm deep)
Compatibility: Accommodates Starwheel/Interlocking latching mechanism of Adams Rite 8700, 8800, EX88 Series Rim Exit Devices.
Standard Package: Individually boxed with 1/16" and 1/8" spacer plates, mounting screws and installation instructions.
Spacer Plates included to accommodate varying door gaps.
Screws for wood applications not provided.
Shipping: Weight approximately 2 lbs (0.91 kg).

Features

Spacer Plates included to accommodate varying door gaps.
Strike only accepts Starwheel/Interlocking latching mechanism.
Strike Dimensions: 1-13/4" x 9" x 9/16" deep (44.5 mm x 229 mm x 14.2 mm deep)
Shipping: Weight approximately 2 lbs (0.91 kg).
Standard Package: Individually boxed with 1/16" and 1/8" spacer plates, mounting screws and installation instructions.
Strike Opening Bolt retaining keeper is stainless steel.
Screws for wood applications not provided.
1" x 1-1/2" x 1/2" deep (24.4 mm x 38.1 mm x 12.7 mm deep).
Compatibility: Accommodates Starwheel/Interlocking latching mechanism of Adams Rite 8700, 8800, EX88 Series Rim Exit Devices.
Faceplate: Not separate 1-3/4" x 9-1/64" x 9/16" (44.5 mm x 229 mm x 14.2 mm deep)

Attributes

Ship via: Can Ship UPS

Alternate Codes: 7800-630, 7800630

Amp Draw: .45 @ 12V .25 @ 24V

Category: Access Control, Electric Strikes

Door Application: Electric Strikes

Door Frame Type: Aluminum Frame

Electric Strike Compatibility: Rim Exit (Starwheel/Interlocking)

Electric Strike Faceplate Size: 1-3/4" x 9-1/64" x 9/16"

Electric Strike Faceplate Type: Radius Corner

Electric Strike Series: 7800

Faceplate Depth: 1/2 In.

Finish: 630/US32D

Finish Code: US32D

Finish Color: Satin

Finish Description: Satin Stainless Steel

Frame Application: Metal or Wood

Function: Field Selectable (Safe/Secure)

Grade: Grade 1

Holding Force: 1500

Keeper Size: Starwheel Keeper

Operating Voltage: 12VDC/24VDC

Series: 7800 Series Electric Strikes

Strike: Electric Strike

Subtype: Electric Strike

Type: ACCESS CONTROL

Use With: Rim Exit Devices
