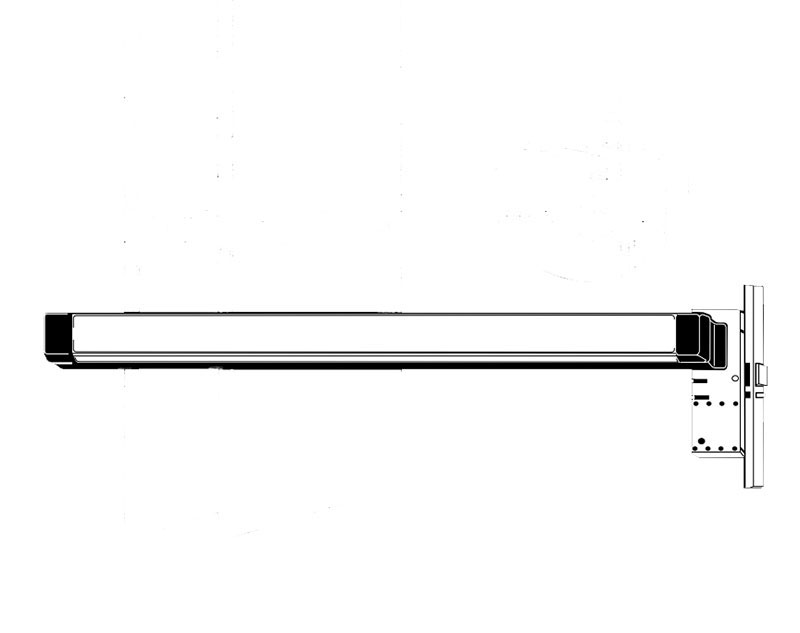

Adams Rite 8312-7142 Mortise Exit Device

Adams Rite 8312-7142 Mortise Exit Device offers a robust solution for life safety in commercial settings. Designed for hollow metal and wood doors, this device features a wide stile pushpad that enhances usability while ensuring a clean, unobtrusive aesthetic. With a 42-inch length and a right-hand reverse (RHR) configuration, it’s suitable for a variety of door applications. The patented "Starwheel" bolt system interlocks the door to the frame, providing superior security. This innovative feature engages automatically upon closing, with the deadlocking slide ensuring the door remains secure until the pushbar is depressed. The pushbar is crafted from extruded aluminum and can be finished in various anodized options. Installation is straightforward, thanks to its non-handed design and compatibility with door openings measuring 30 to 48 inches. This device accommodates standard door thicknesses of 1-3/4 inches, up to 2-1/4 inches, and fits doors as tall as 8 feet, with an optional Tall Door Kit available for taller installations. With a five-year limited warranty and standard self-tapping screws for fasteners, the Adams Rite 8312-7142 is built for durability and reliability, making it an ideal choice for any commercial facility focused on safety and efficiency.

Mortise Exit Device

Life Safety Mortise Exit Device, Wide Stile Pushpad, For Hollow Metal and Wood Applications, 42 In., RHR, Satin Aluminum Clear Anodized

Mortise Exit Device, Hollow Metal, Wood Doors, RHR, 42", Aluminum

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
