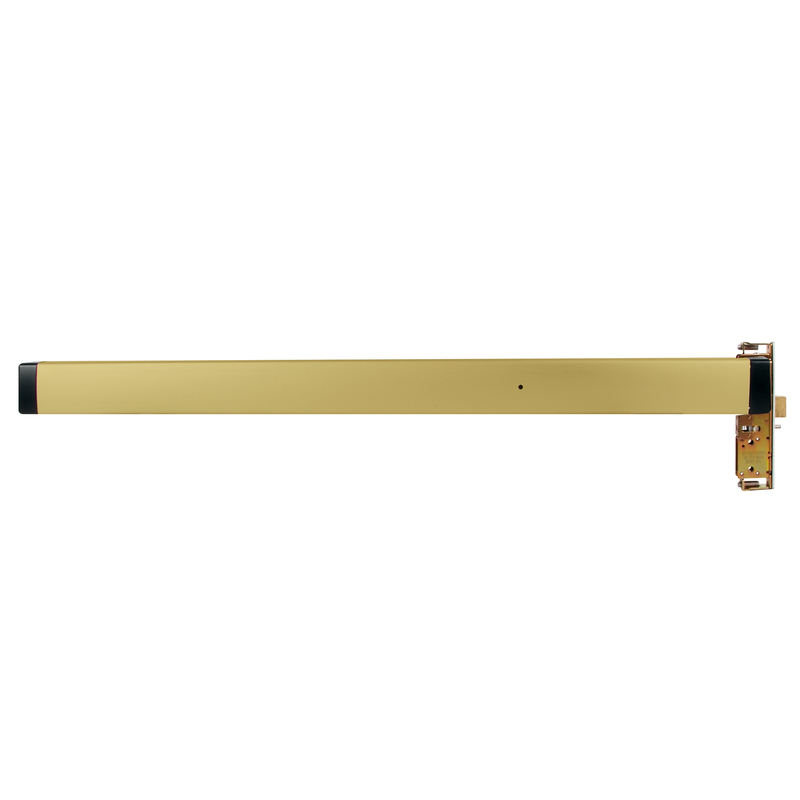

Adams Rite 8400-47036-US4 Mortise Exit Device

Adams Rite 8400-47036-US4 Mortise Exit Device offers a reliable and stylish solution for life safety in narrow stile aluminum applications. Designed for 36-inch openings, this exit device features a satin brass finish that adds an unobtrusive elegance to your entryway. The patented "Starwheel" bolt mechanism ensures a secure interlock between the door and frame, enhancing safety without compromising ease of use. Installation is straightforward, thanks to its non-handed design and the ability to reverse the lever entry trim in the field. The pushbar, constructed from durable extruded aluminum, is adjustable to fit standard door heights of up to 8 feet and is compatible with door thicknesses ranging from 1-3/4" to 2-1/4". For added versatility, the device can accommodate various cylinder types and includes options for standard or electric dogging. With a projection of 2-15/16" when fully extended, the Adams Rite 8400-47036-US4 ensures efficient operation while maintaining a clean appearance. Backed by a five-year limited warranty, this exit device is not just a functional necessity but also a sophisticated component of your commercial entry system. Choose Adams Rite for dependable performance and stylish design in your next project.

Mortise Exit Device

Life Safety Narrow Stile Mortise Exit Device, For Aluminum Applications, 36 In., RHR, Satin Brass

Mortise Exit Device, 1-1/2" Backset, Narrow Stile Aluminum Doors, RHR, 36", Satin Brass

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
