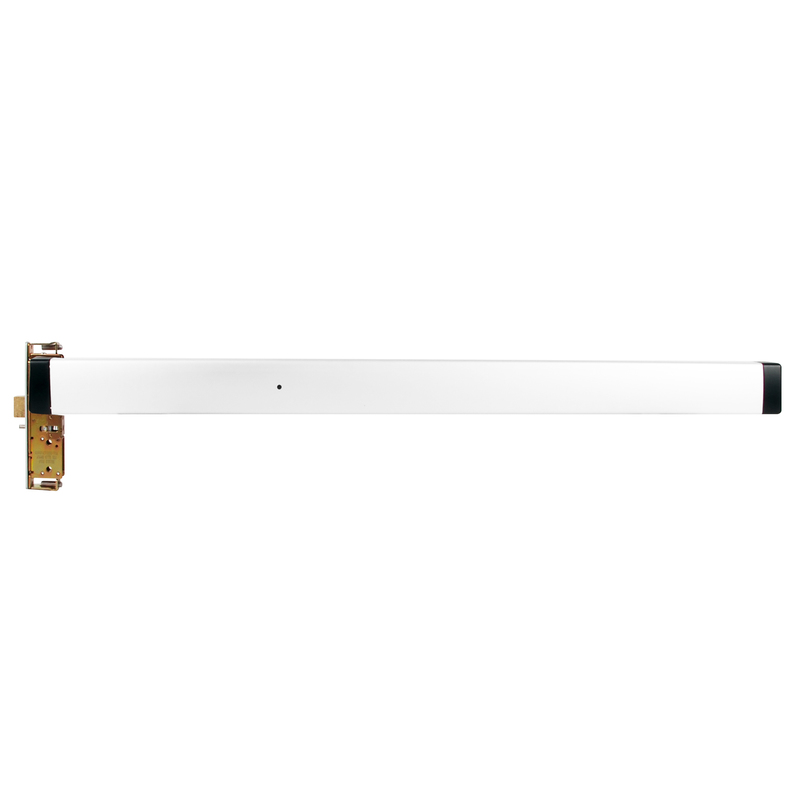

Adams Rite 8400-48036-US32 Mortise Exit Device

Adams Rite 8400-48036-US32 Mortise Exit Device offers a reliable life safety solution tailored for narrow stile aluminum applications. Measuring 36 inches with a left-hand reversible design, this exit device is crafted from bright stainless steel, ensuring durability and a polished appearance. One of its standout features is the patented "Starwheel" bolt mechanism, which interlocks the door to the frame when closed, enhancing security. The bolt engages automatically as the door closes, with a deadlocking slide that secures the system until the pushbar is depressed, allowing for smooth egress. Designed for standard 1-3/4 inch thick doors, the 8400 series accommodates various door heights, fitting doors up to 8 feet, while a Tall Door Kit is available for taller installations. The extruded aluminum pushbar comes in multiple finishes, and its standard length options can be field cut to suit specific opening widths. Installation is straightforward, utilizing standard self-tapping screws, with optional sex bolt kits for added stability. This exit device is also adaptable, accepting standard rim cylinders and mortise cylinders, making it a versatile choice for commercial applications. Backed by a five-year limited warranty, the Adams Rite 8400-48036 is a dependable option for ensuring safety and accessibility in any building.

Mortise Exit Device

Life Safety Narrow Stile Mortise Exit Device, For Aluminum Applications, 36 In., LHR, Bright Stainless Steel

Mortise Exit Device, 1-1/2" Backset, Narrow Stile Aluminum Doors, LHR, 36", Bright Stainless Steel

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
